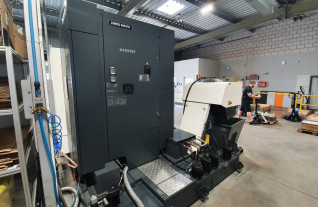

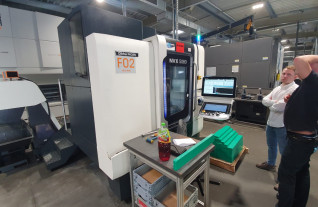

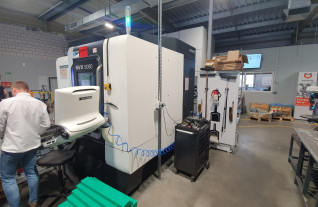

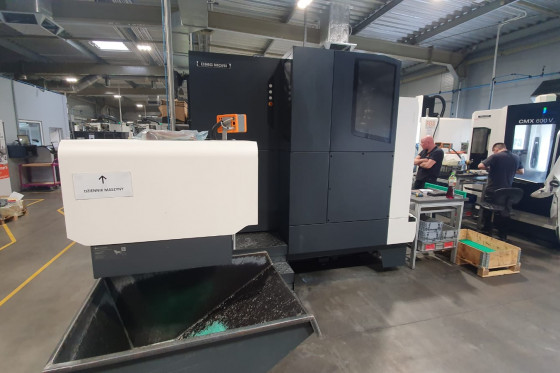

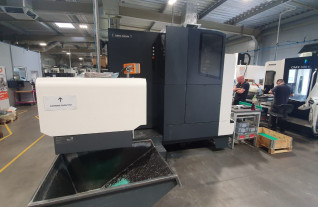

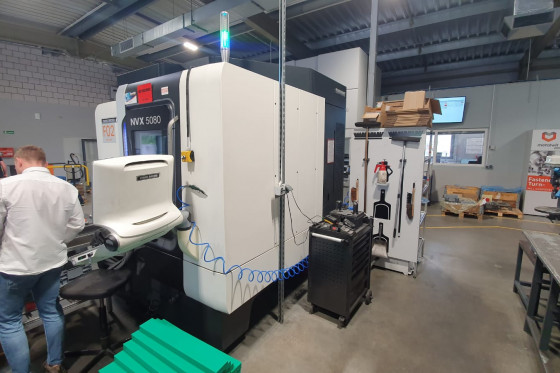

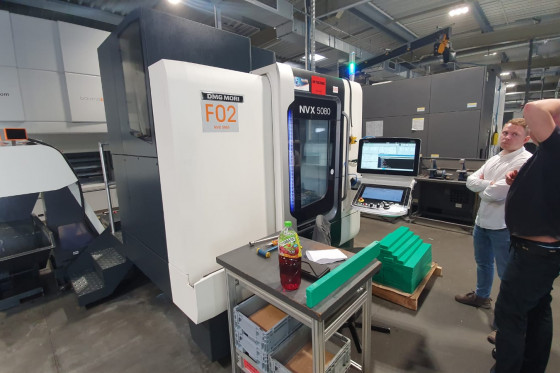

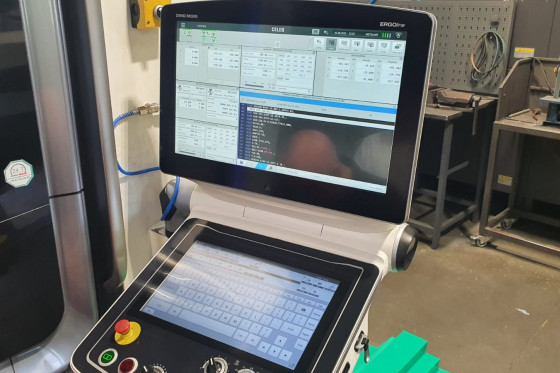

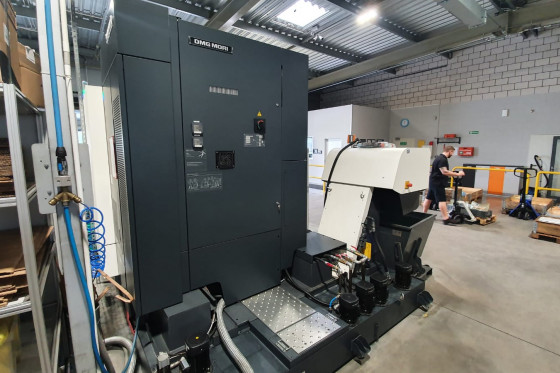

3-axis CNC machine (VMC) DMG MORI - NVX 5080

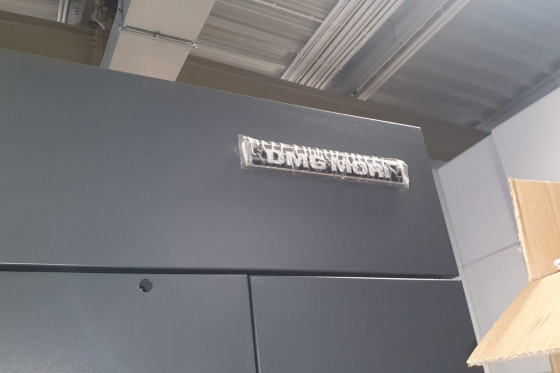

VMC X 800 Y 530 Z 510 mm MACH-ID 6540| Make: | DMG MORI |
| Type: | NVX 5080 |
| Year: | 2014 |
Specifications
X - Travel
800 mm
31.496 inch
Y - Travel
530 mm
20.866 inch
Z - Travel
510 mm
20.079 inch

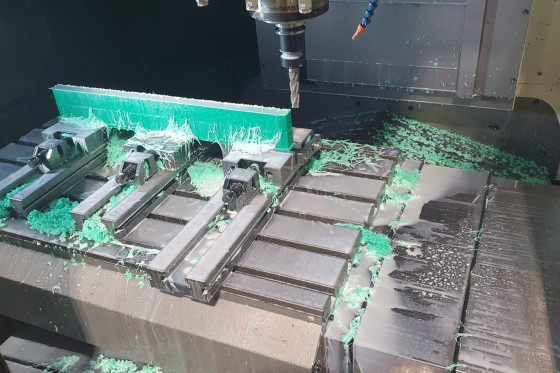

Table Length
1100 mm
43.307 inch
Table Width
600 mm
23.622 inch
Table load
1000
1000
Feed rate X-Axis
30000 mm/min.
30000 mm/min.
Feed rate Y-Axis
30000 mm/min.
30000 mm/min.
Feed rate Z-Axis
30000 mm/min.
30000 mm/min.

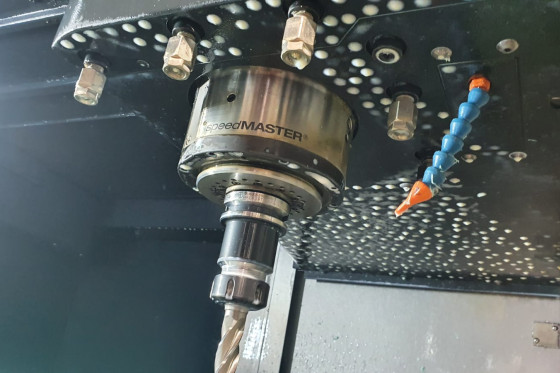

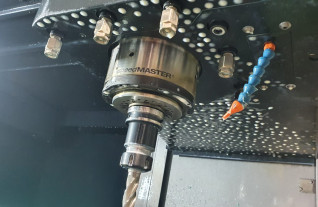

Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
22 kW
22 kW
Speeds / ranges
15000 Rpm
15000 Rpm

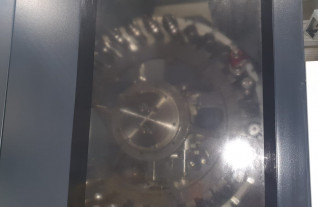

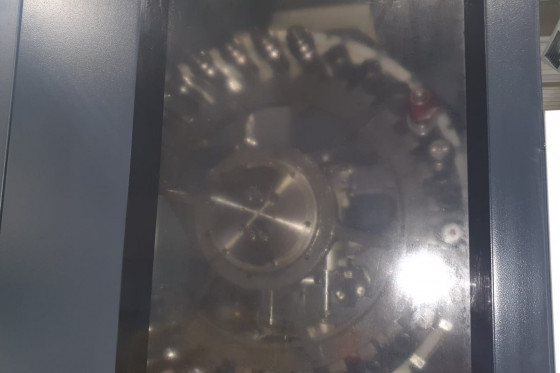

ATC / revolver
30
30
Coolant through spindle / Bar
20
20
Number of controlled axis
3
3
Chip conveyor
Yes
Yes

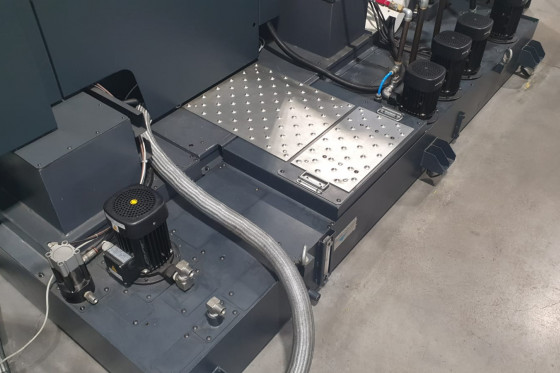

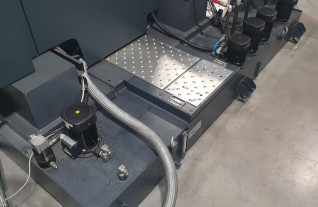

Coolantsystem
Yes
Yes
Dimensions (Estimate)
Length
3500 mm
137.795 inch
Width
4000 mm
157.48 inch
Height
2600 mm
102.362 inch
Weight
6350 kg
14005.7 lbs
