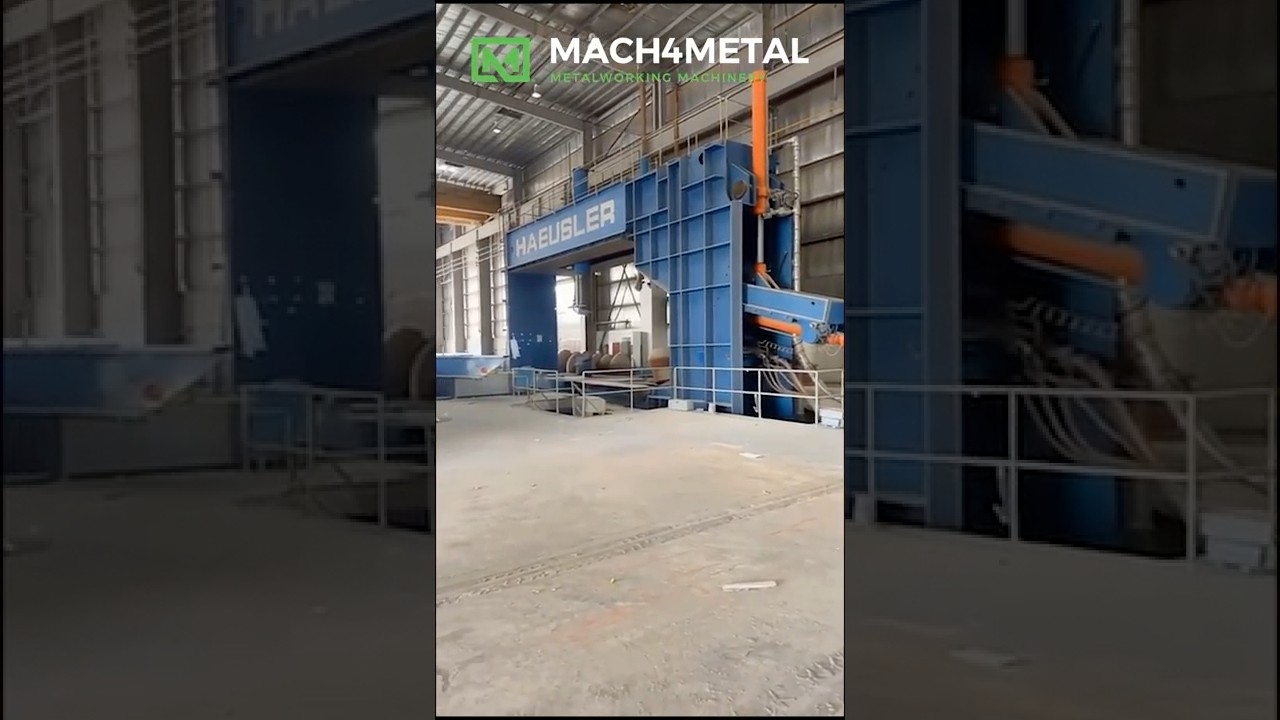

Flanger og skålmaskine HAEUSLER - HKP 9000/1000
MACH-ID 9829| Fabrikat: | HAEUSLER |
| Type: | HKP 9000/1000 |
| YOP: | 2009 |
HAEUSLER Dishing press:
- Max. force 1000 Ton
- Retraction force 82.5 Ton
- Approach speed 260 mm/Sec
- Working 10 - 30 mm/Sec
- Return speed 370 mm/Sec
- Pressure 253 Bar
- Distance between column 9000 mm
- Dimensions table plate 1500 x 1500 mm
- Max Work piece diameter 8700 mm
- Thickness at yield 450 N/mm2 90 mm
- Manipulator:
- Max. dimanions 8700 x 90 mm
- Min. dimensions table 1500 x 1500 = 3200 mm
- Min. dimensions table 700 x 700 = 2200 mm
- Work piece weight 42.000 Kg
- Travelling speed 158 M/Sec
- Power 165 kW
- Weight 43000 Kg
-

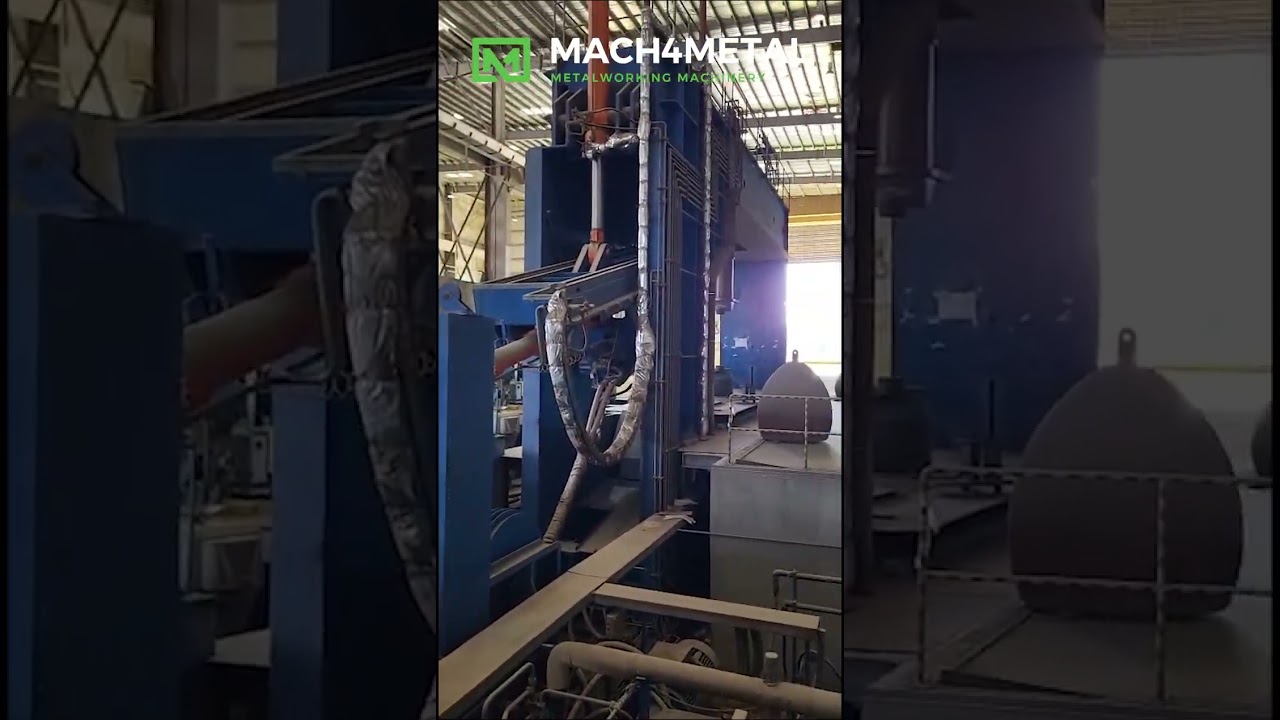

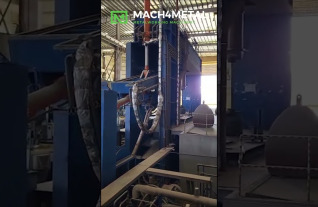

Optional Dishing Dies (Gray GG-25)
- RUW 925 with 1500 diameter x R 950 – 1300 mm
- RUW 1205 with 1500 diameter x R 1305 – 1700 mm
- RUW 1520 with 1500 diameter x R 1705 – 2200 mm
- RUW 1905 with 1500 diameter x R 2205 – 2800 mm
- RUW 2395 with diameter 1500 x R 2805 – 3500 mm
- RUW 2885 with diameter 1500 x R 3505 – 4300 mm
- RUW 3515 with diameter 1500 x R 4305 – 5200 mm
- RUW 4215 with diameter 1500 x R 5205 – 6200 mm
- RUW 4985 with diameter 1500 x R 6205 – 7300 mm
Specifikationer
Dimensioner (estimere)
Bemærk venligst: Oplysningerne på denne side er indhentet efter bedste evne og overbevisning, og fra producenterne, hvor det er muligt. Det er givet i god tro, men dets nøjagtighed kan ikke garanteres. Det vil derfor ikke udgøre en repræsentation eller udgøre kontraktlige vilkår. Vi råder dig til at tjekke alle vitale detaljer!

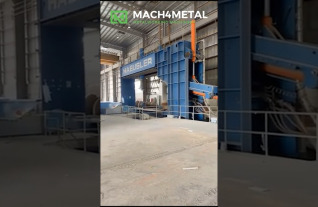

Once-in-a-lifetime opportunity – HAEUSLER heavy dished head production line
Mach4Metal is proud to offer for sale an exceptionally rare HAEUSLER heavy dishing and flanging production line, consisting of:
HAEUSLER HKP 9000/1000 hydraulic dishing press
combined with
HAEUSLER HBM-HY 7000 x 90 flanging machine
Equipment of this size and capacity almost never becomes available on the worldwide used machinery market.
This installation was designed for the manufacture of extremely large and heavy dished heads for pressure vessels, where conventional forming equipment simply reaches its limits.
The HAEUSLER HBM-HY is designed for the production of very large vessel heads with diameters reaching approximately 7–8 metres, depending on geometry, material and forming conditions.
Material thickness capacity reaches approximately 45 mm in cold forming and up to 90 mm in hot forming.
Combined with the enormous HKP 9000/1000 hydraulic dishing press, this creates a complete heavy-duty solution for the production of large and thick dished heads.
This type of equipment is particularly suitable for demanding industries such as nuclear and power generation, oil & gas, petrochemical, chemical and fertilizer production, hydrogen and ammonia projects, industrial boiler manufacturing, offshore applications and heavy pressure-vessel construction.
Typical products can include large pressure-vessel heads, refinery reactors, separators, hydrocrackers, chemical reactors, autoclaves, boiler drums, steam-generation equipment and other heavy pressure-containing components.
Heavy forming machinery of this scale is rarely built.
Purchasing comparable equipment new today would represent a major investment, extensive engineering and potentially a very long manufacturing and delivery period.
This existing HAEUSLER installation therefore offers the right buyer the opportunity to acquire a production capability that could immediately place them among a relatively small group of manufacturers worldwide capable of producing very large and thick-wall dished heads.
This is not simply another used machine-tool purchase.
It is the acquisition of a specialized heavy-manufacturing capability.
For companies planning to expand into nuclear, SMR, petrochemical, hydrogen, ammonia, offshore or heavy pressure-vessel production, acquiring an existing installation of this scale could potentially save years of development, procurement, engineering and manufacturing lead time compared with establishing a completely new heavy-forming facility.
Machines like these are built for decades of industrial service and very rarely reach the international used-equipment market as a complete available production package.
For a manufacturer looking to enter or expand in the market for extra-large pressure vessels and dished heads, this may genuinely be one of those opportunities that does not come around twice.
HAEUSLER HKP 9000/1000 + HBM-HY 7000 x 90
Heavy forming capacity. Exceptional dimensions. Proven HAEUSLER engineering.
A once-in-a-generation opportunity on the worldwide used machinery market.
Available through Mach4Metal.
Worldwide enquiries from qualified industrial buyers are welcome.
