Diese Maschine ist verkauft

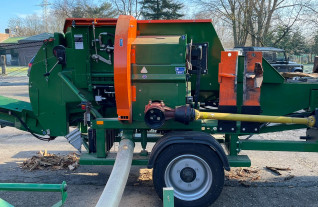

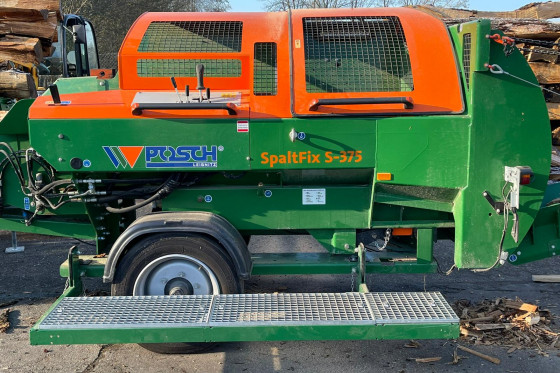

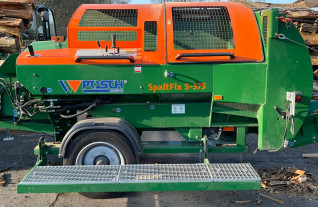

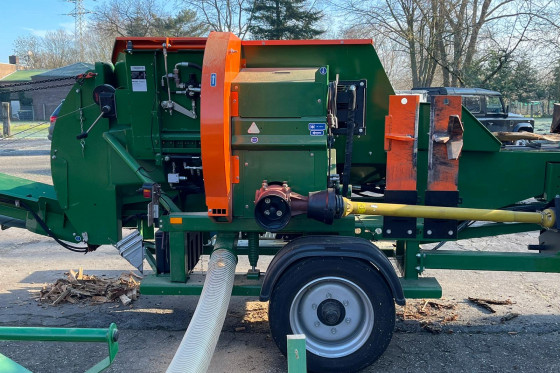

Andere Zerspanung POSCH AUSTRIA - SpaltFix S-375
Wood Split Cutter Ø 370 x 500 mm 25 M3/H MACH-ID 6355| Hersteller: | POSCH AUSTRIA |
| Typ: | SpaltFix S-375 |
| Baujahr: | 2018 |
- As new less than 500 Hours !
- New over EUR 50.000
- Log diameter 7-37 cm

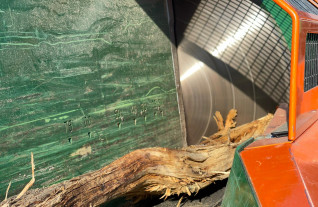

- Sawing system WIDIA saw blade ∅ 90 cm
- Billet length 20/25/30/33/35/40/45/50 cm

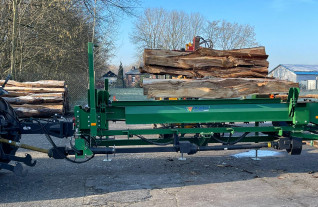

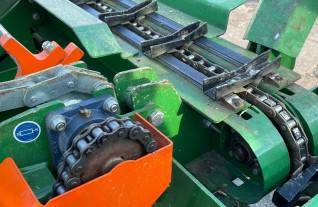

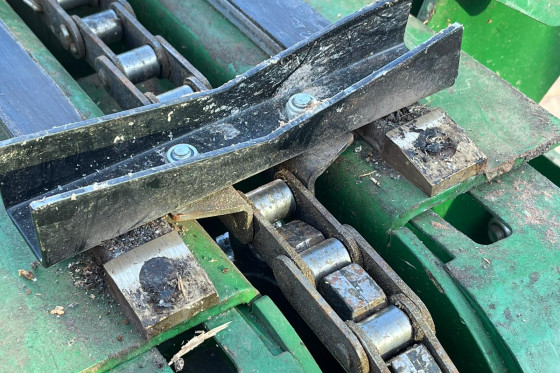

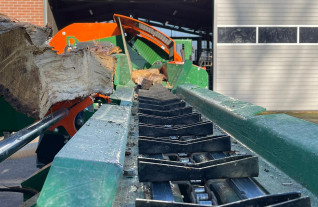

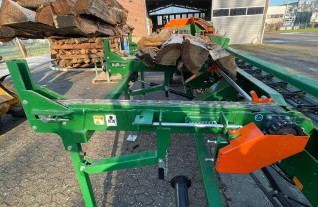

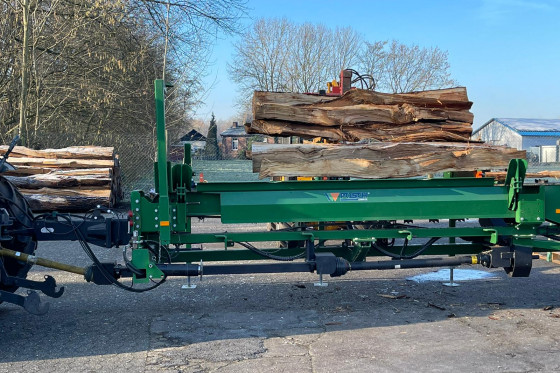

- Hydraulic log feed system with 2-m feeding belt
- Hydraulic saw feed system with automated stop ventilation and downholder function

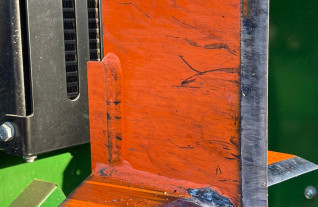

- 4-way splitting wedge as standard, 6-way or 8-way optional
- Splitting force 12 t
- Stamp advance/return speed max. 47/42 cm/s with Autospeed

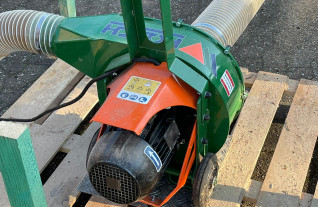

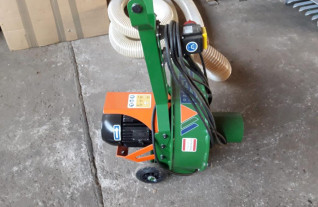

- Chip extraction connection Ø 15 cm
- OnlyCut Function (to be used as a pure high-performance saw)
Spezifikationen
Es gibt (noch) keine Spezifikationen für diese Maschine.
Abmessungen (Schätzen)
Länge
8400 mm
330.708 inch
Breite
1900 mm
74.803 inch
Höhe
3250 mm
127.953 inch
Gewicht
3000 kg
6616.9 lbs
Bitte beachten Sie: Die Informationen auf dieser Seite wurden nach bestem Wissen undGewissen von uns , und soweit möglich , vom Hersteller bezogen.Die Informationen werden im guten Glauben abgegeben, aber die Genauigkeit kann nichtgarantiert werden. Dementsprechend werden Sie keine Vertretung und Vertragsbedingungen darstellen.Wir empfehlen Ihnen, alle wichtigen Details zu überprüfen.

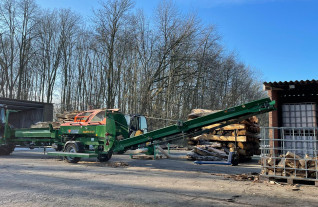

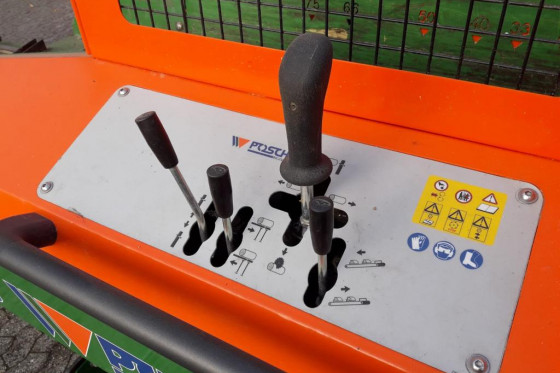

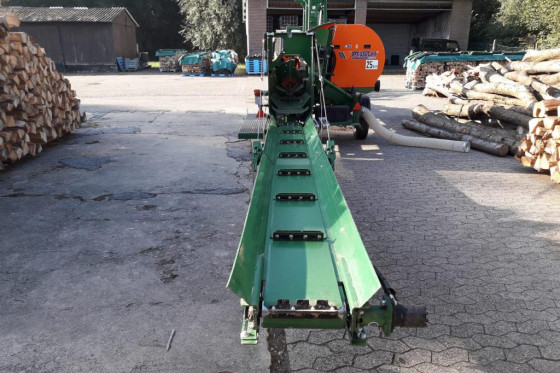

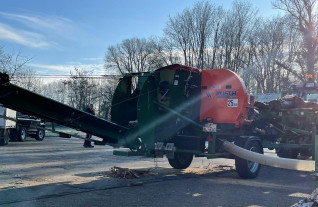

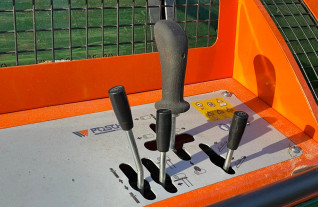

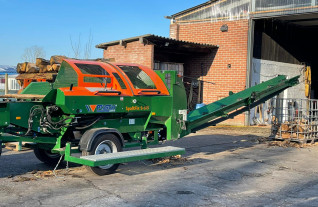

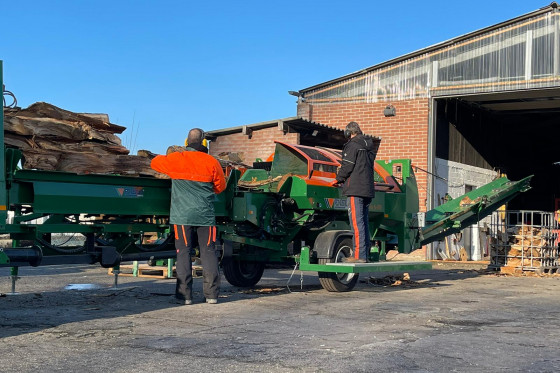

The split cutter SpaltFix S-375 cuts and splits logs up to Ø 37 cm in 2, 4, 6 or 8 parts in one work cycle. The cutting length can be adjusted from 20 to 50 cm. The hydraulic timber feed transports the timber to the circular saw blade via the conveyor belt. Thanks to the feed belt inclined to the rear, the cutting cycle is ideally adapted to the log diameter, which enables maximum performance with small diameters as well. The hydraulic log downholder and the adjustable log stop that lifts during cutting prevent logs from getting stuck. It is easy to operate with a one-hand joystick control. The finished billets are directly transported to loading via an angled conveyor belt. OnlyCut system: As standard, the splitting knife and the splitting knife support can be removed in only a few steps, and so the SpaltFix S-375 can be used as high-performance saw without splitting tool.
