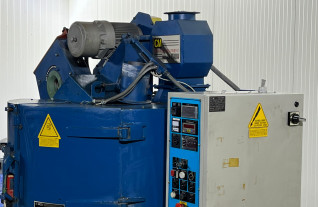

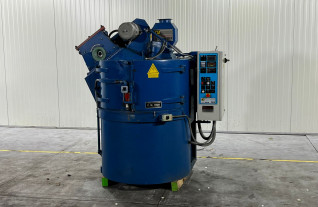

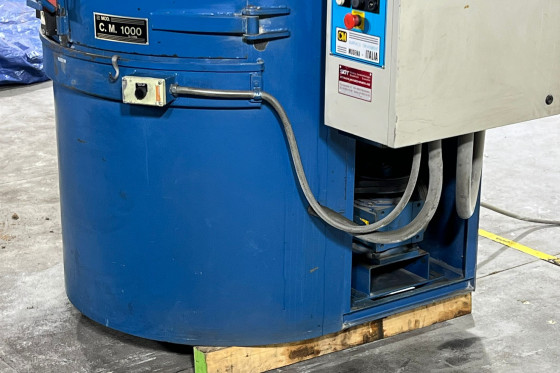

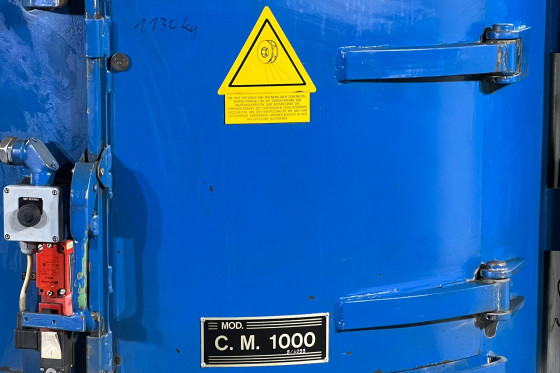

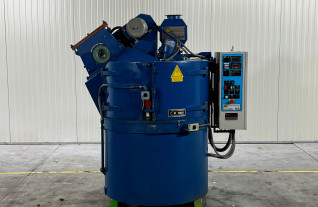

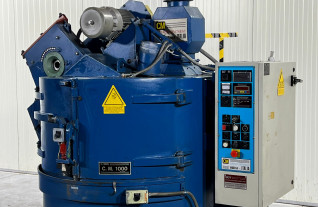

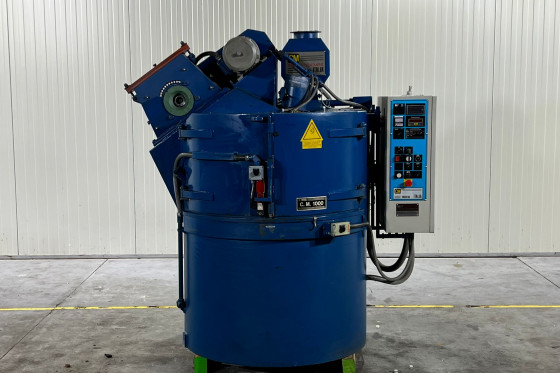

Schleifmaschine CM Modena - CM1000

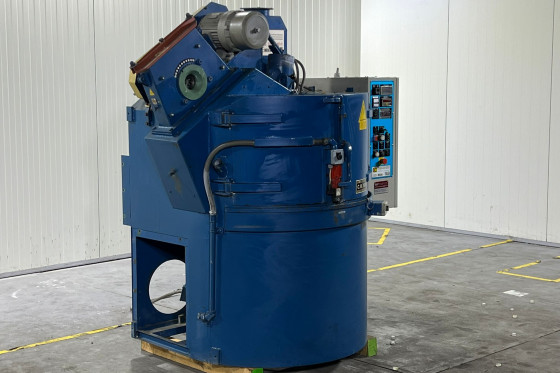

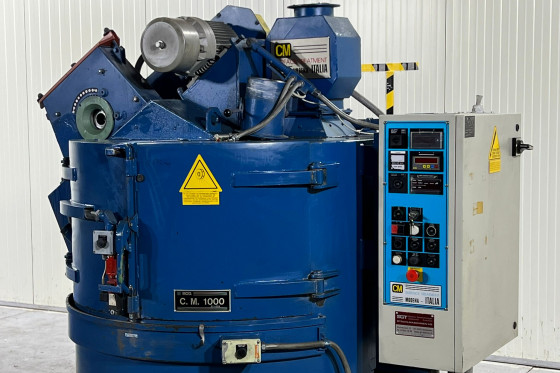

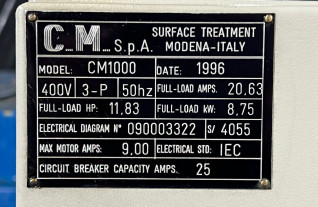

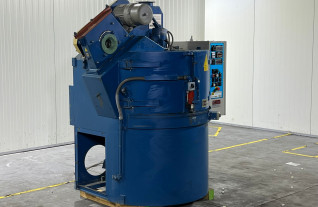

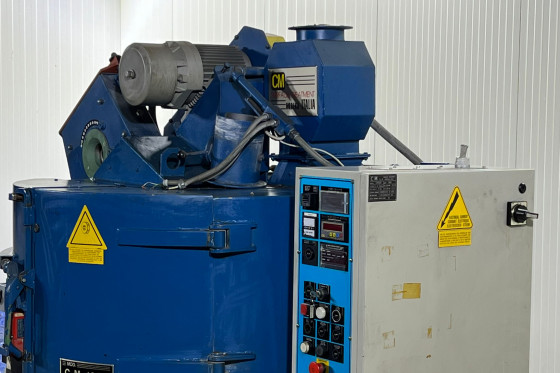

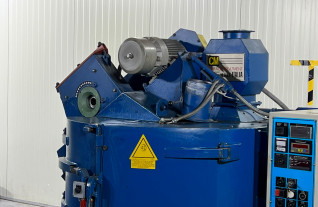

Rotary table blast cleaning machine Ø 1000 x 400 Height MACH-ID 6936| Hersteller: | CM Modena |
| Typ: | CM1000 |
| Baujahr: | 1996 |

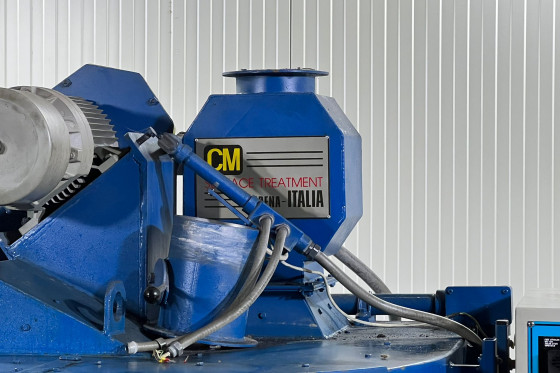

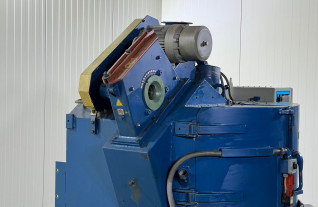

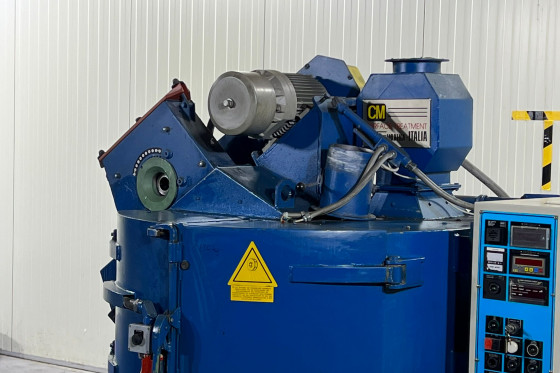

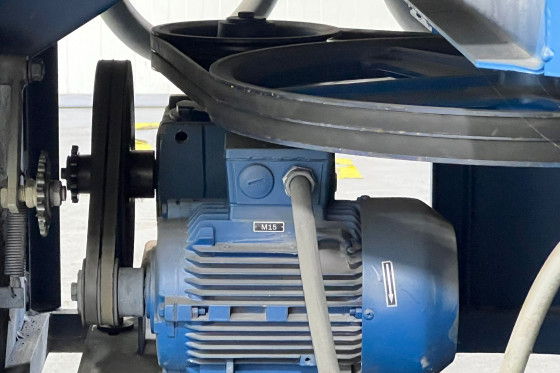

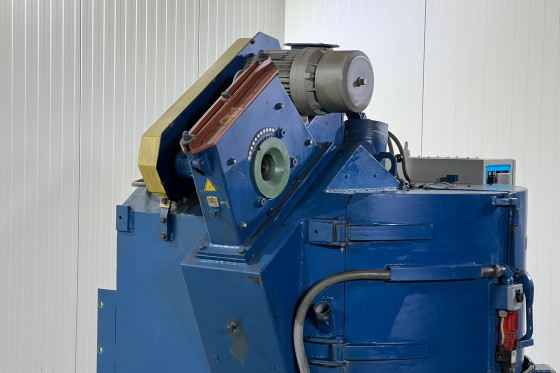

- 3 kW blast motor

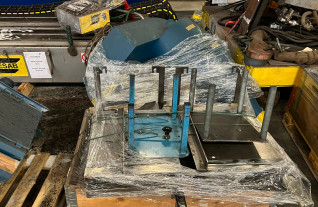

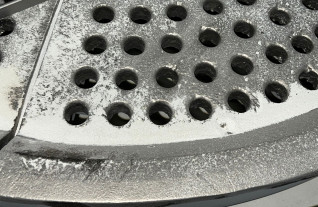

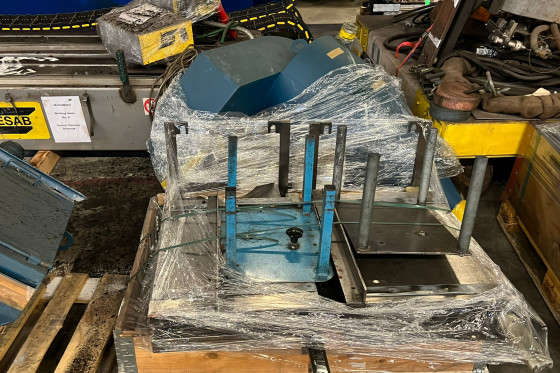

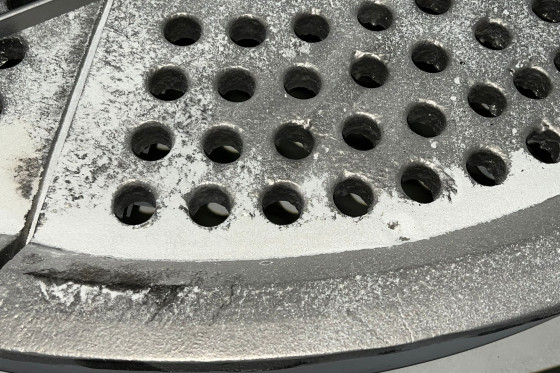

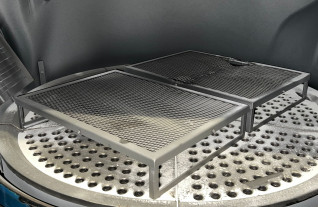

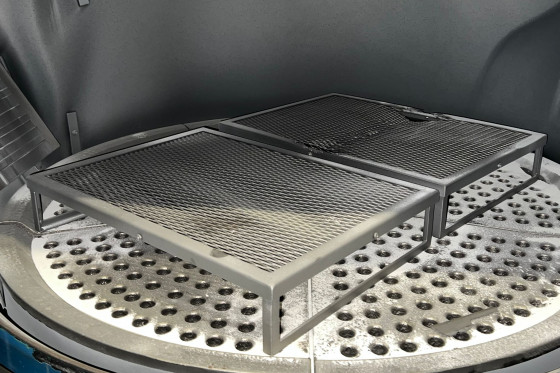

- extra table inserts

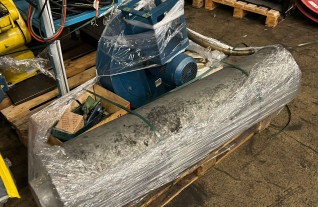

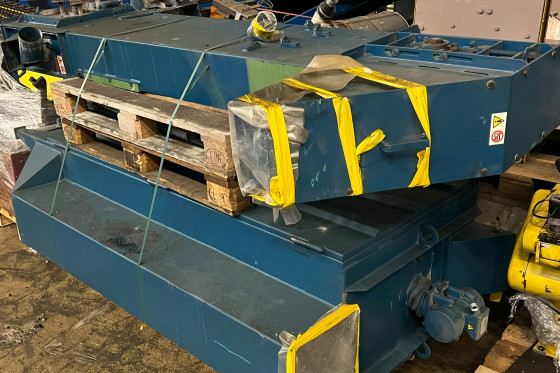

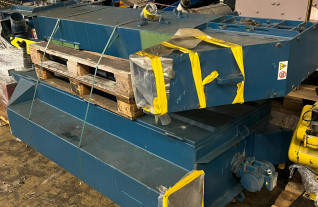

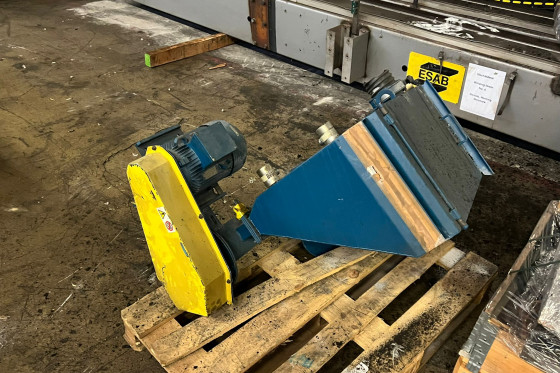

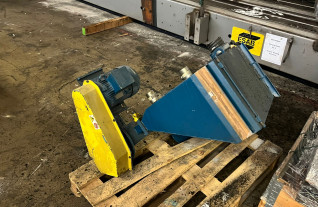

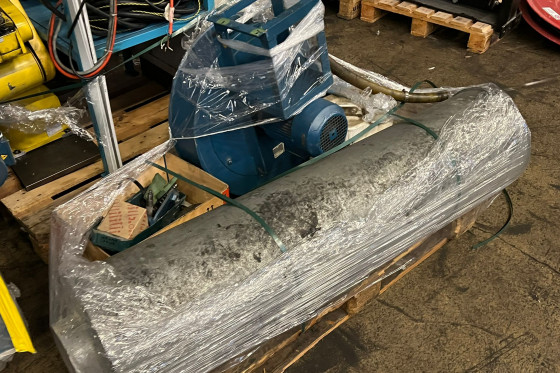

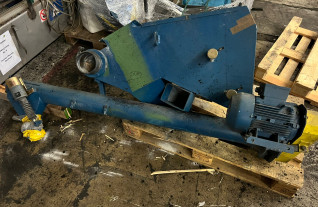

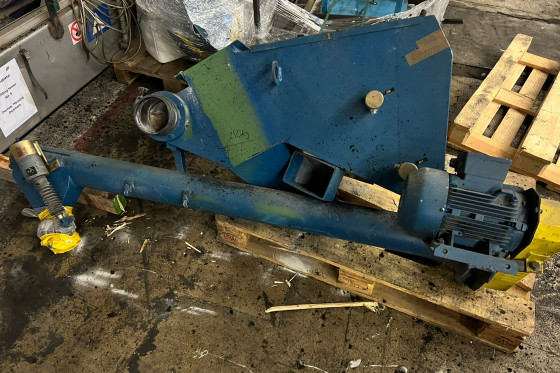

- feeding and filtration system
Spezifikationen
Es gibt (noch) keine Spezifikationen für diese Maschine.
Abmessungen (Schätzen)
Länge
2200 mm
86.614 inch
Breite
2100 mm
82.677 inch
Höhe
4500 mm
177.165 inch
Gewicht
1200 kg
2646.7 lbs
Bitte beachten Sie: Die Informationen auf dieser Seite wurden nach bestem Wissen undGewissen von uns , und soweit möglich , vom Hersteller bezogen.Die Informationen werden im guten Glauben abgegeben, aber die Genauigkeit kann nichtgarantiert werden. Dementsprechend werden Sie keine Vertretung und Vertragsbedingungen darstellen.Wir empfehlen Ihnen, alle wichtigen Details zu überprüfen.

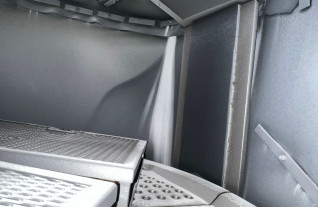

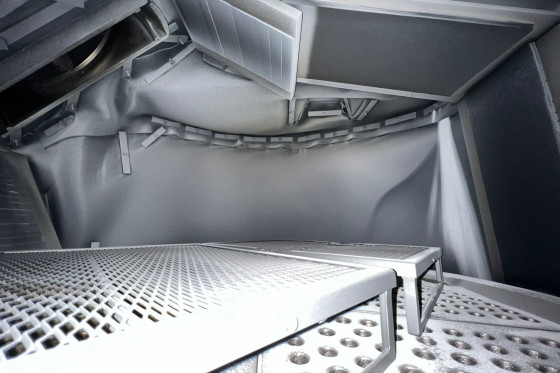

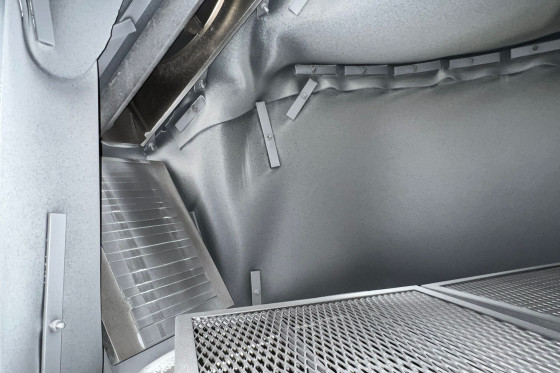

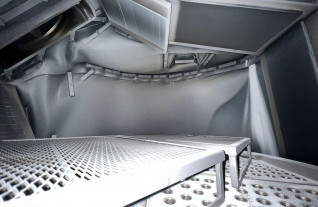

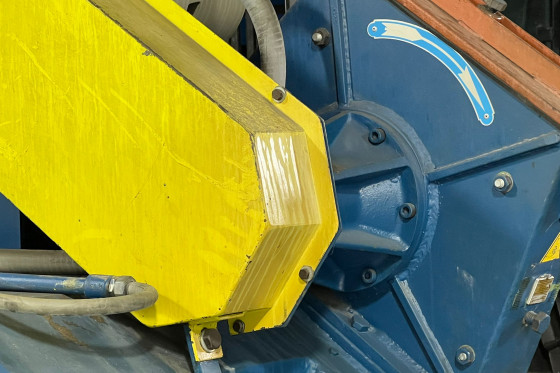

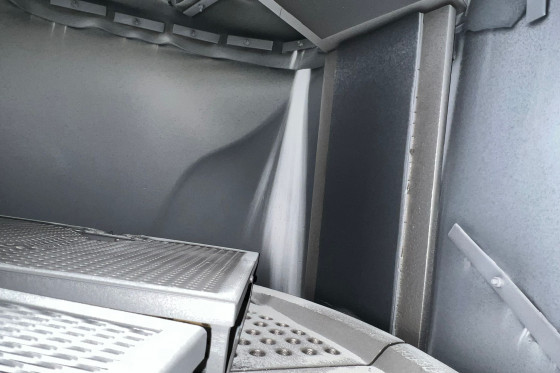

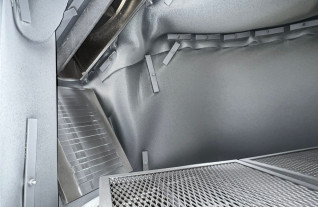

The parts are loaded to the rotary table and the abrasive media is gravity fed to the centre of a single turbine blast wheel where it is accelerated onto the components sitting on the rotary table. Consequently every facet of the component exposed to the blast stream is thoroughly blasted as the table revolves through 360°. Because of their characteristics, the rotary table shotblasting machines can easily be incorporated in diversified machining installations, adapting to the treatment of various parts of different shape and type. The Modena CM 1000 (rotary table) Shot blasting machine can easily satisfy a variety of blasting needs, providing excellent results in terms of productivity, safety and energy savings, thanks to the quality of materials used, and the safety standards applied. Typical Uses of the Modena CM1000 Cleaning of dies for aluminum extrusion industry. The shotblasting process carried out by the shotblasting machine allows removing from aluminium extrusion matrixes the impurities that remain following the cleaning process with caustic soda. Cleaning of moulds for fabrication of glass containers. The shotblasting process carried out by the shotblasting machine allows removing from hollow-glass dies the residues of graphite or another release material sprayed on the dies during the production process. Deflashing, finishing of high pressure die castings (engine components, ornamental hardware, aircraft and missile components, etc.). The shotblasting process carried out by the shotblasting machine allows removing residual burrs and making the surface homogeneous both for aesthetic purposes and as preparation for subsequent treatments. Core knockout, cleaning (fettling) of ferrous and non-ferrous sand castings. The shotblasting process carried out by the shotblasting machine allows removing the layers of casting earth following the casting process. The mass of earth that contains the castings is crushed and separated from the pieces by the impact of the shot and even the slightest slag on the pieces is removed by abrasion. Features include; 3kW blast motor,1.5Kw 6.2 rpm driven1000mm rotary table with a 900kg load capacityMaximum single component size 920 x 475 mm HighComprehensive control panel including Ammeter, timer and safety interlocks.Integral bag dust collector.Cyclonic media separation and grading facility.
