Clamping system TecnoMagnet - MCC
MACH-ID 8903| Make: | TecnoMagnet |
| Type: | MCC |
| Year: | 2004 |

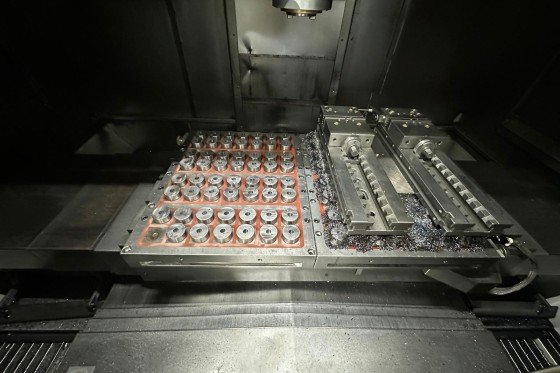

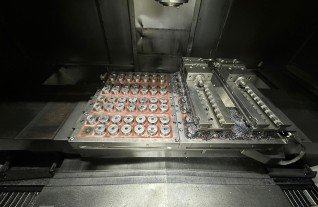

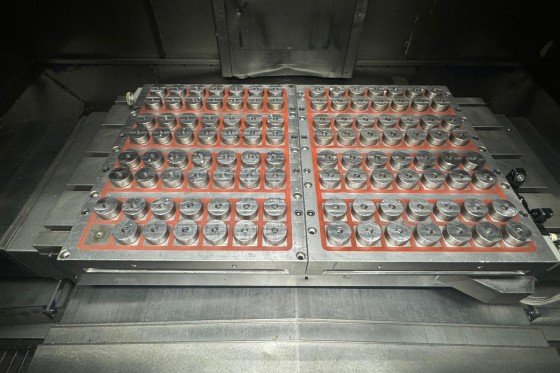

- 2 magnetic Tables and 1 controll unit
- Electropermanent magnetic clamping system
- Clamping all kind off jobs such as;
- Face milling, lateral drilling, Round bar facing and slots drilling
- Coupled parts machining ans forged parts machining
- Edge milling and chamfering
- plates machining on right angle
- Flattening through drilling and pocket execution

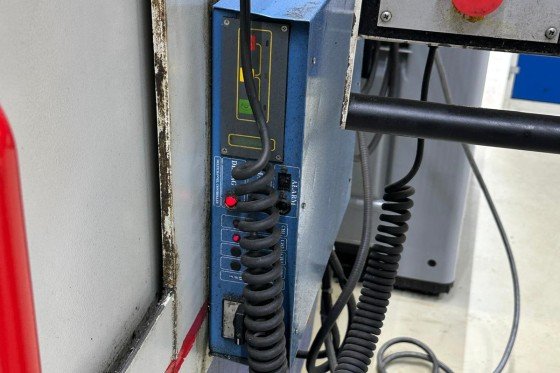

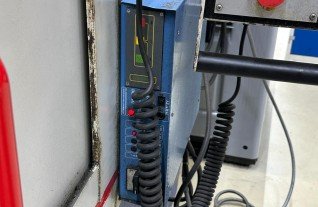

- Seperate MCC Control box with quick connection
Specifications
Table Length
430 mm
16.929 inch
Table Width
375 mm
14.764 inch
Table Height
95 mm
3.74 inch
Number of poles
56
56
Dimensions (Estimate)
Length
375 mm
14.764 inch
Width
430 mm
16.929 inch
Height
95 mm
3.74 inch
Weight
350 kg
772 lbs
