This machine is sold
Clamping system TecnoMagnet - SQ 210 HD 50
MACH-ID 8805| Make: | TecnoMagnet |
| Type: | SQ 210 HD 50 |
| Year: | 2004 |

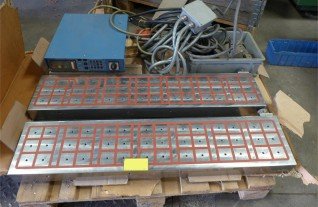

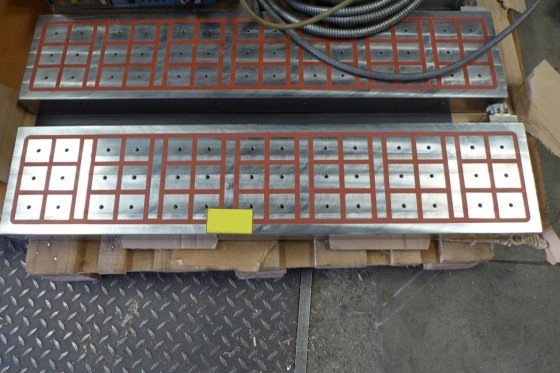

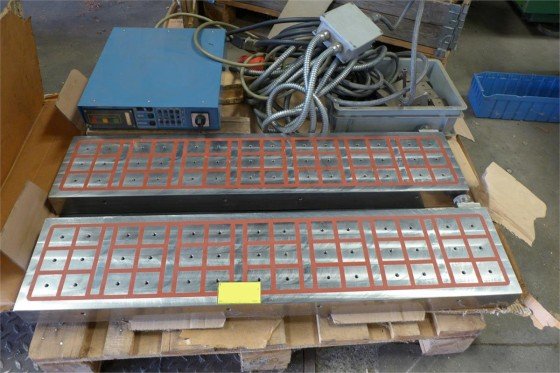

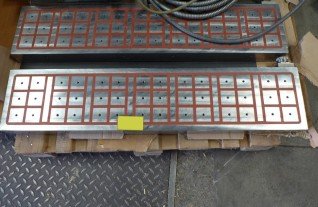

- 2 magnetic Tables and 1 controll unit
- Electropermanent magnetic clamping system
- Clamping all kind off jobs such as;
- Face milling, lateral drilling, Round bar facing and slots drilling
- Coupled parts machining ans forged parts machining
- Edge milling and chamfering
- plates machining on right angle
- Flattening through drilling and pocket execution
- Seperate MCC Control box with quick connection
Specifications
Table Length
1070 mm
42.126 inch
Table Width
235 mm
9.252 inch
Table Height
54 mm
2.126 inch
Number of poles
36
36
Force per pole
350 daN
350 daN
Dimensions (Estimate)
Length
1070 mm
42.126 inch
Width
230 mm
9.055 inch
Height
54 mm
2.126 inch
Weight
300 kg
661.7 lbs
