This machine is sold

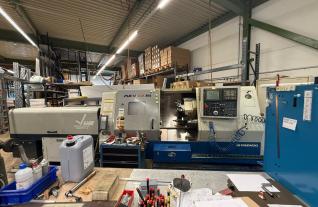

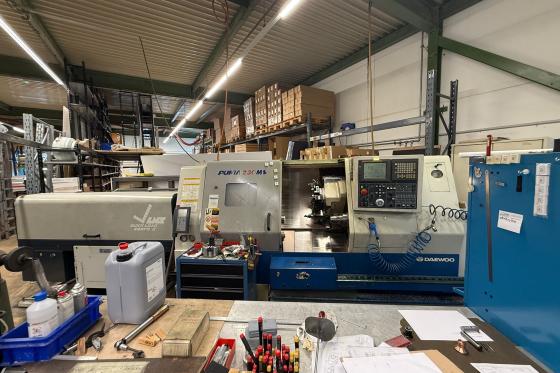

CNC Lathe with c-axis DOOSAN - PUMA 230 MSA
MACH-ID 9244| Make: | DOOSAN |
| Type: | PUMA 230 MSA |
| Control: | FANUC |
| Year: | 2001 |
- LNS Barfeeder 1000 mm
- Tool eye
- Part chatcher
- Kitagawa chuck for main & sub spindel
- Collet device for mail & sub spindel

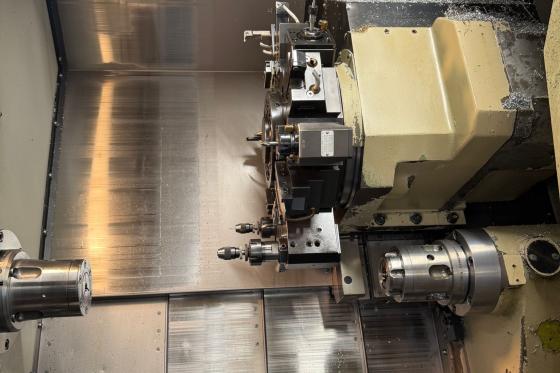

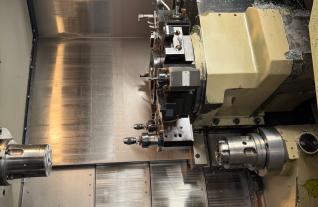

- Live driven tooling
Specifications
Max. turning Ø
290 mm
11.417 inch
X-Axis
205 mm
8.071 inch
Z-Axis
580 mm
22.835 inch
Spindle bore
51 mm
2.008 inch
Speedrange
4500 Rpm
4500 Rpm
Spindle power
15 kW
15 kW
Subspindle speeds
4500 Rpm
4500 Rpm
Subspindle bore
51 mm
2.008 inch
Subspindle power
15 kW
15 kW
ATC / revolver
12
12
Speed live tools
4500 Rpm
4500 Rpm
Power live tools
7.5 kW
7.5 kW
Chip conveyor
Yes
Yes
Tool eye
Yes
Yes
Dimensions (Estimate)
Length
3500 mm
137.795 inch
Width
2000 mm
78.74 inch
Height
2300 mm
90.551 inch

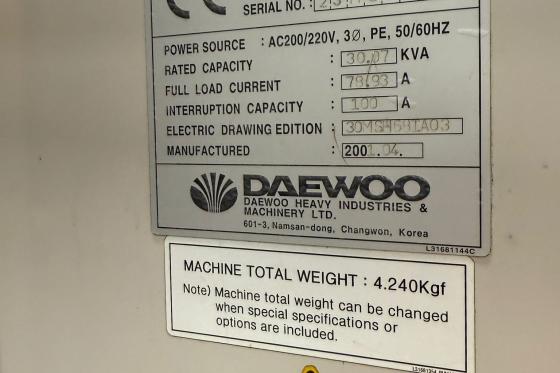

Weight
4200 kg
9263.6 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
