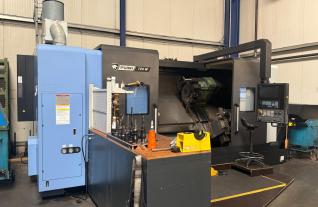

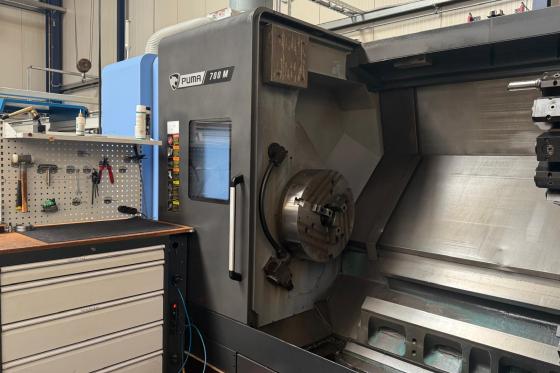

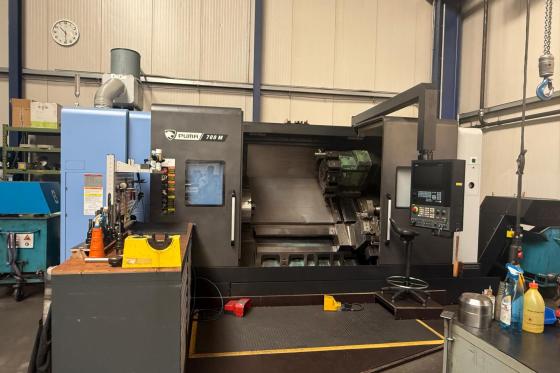

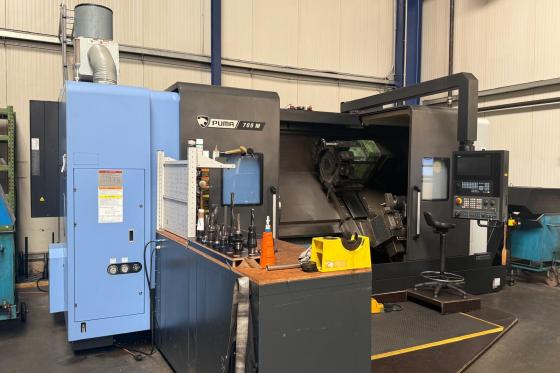

CNC Lathe with c-axis DOOSAN - PUMA 700 M

MACH-ID 9310
Make: DOOSAN
Type: PUMA 700 M

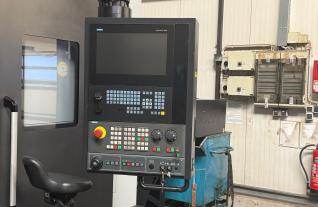

Control: SIEMENS 828D TOUCH
Year: 2022
Whatsapp question
17.862,5 kg CO2
will be saved when purchasing this machine
This is equivalent to:
8,93
return flights from Amst - New York
89.312,00
kilometers with a diesel car
19.847,00
kilometers with a truck
0,45
new-build houses
How we calculated this? The Carbon Calculator was drawn up by Alba Concepts for Mach4Metal. The CO2 outcome is indicative and based on average database values, experience figures and reports from Alba Concepts. It is a minimum estimate and is intended to provide insight into how much CO2 can be saved by purchasing this second-hand machine instead of a new machine. No rights can be derived from the outcome. If you would like insight into the calculation, you can request the background report via info@mach4metal.com. For a full LCA you can also email info@mach4metal.com
  • Tool eye
  • SMW 3 chuck 630-165 mm
  • SMW Steady rest 85 - 350 mm
  • LNS Chip conveyor
  • DORMATEC Air Filter 30 m3

Specifications

Max. turning Ø 1030 mm 40.551 inch
X-Axis 470 mm 18.504 inch
Z-Axis 1650 mm 64.961 inch
Spindle bore 181 mm 7.126 inch
Speedrange 1500 Rpm 1500 Rpm
Spindle power 41 kW 41 kW
ATC / revolver 12 12
Speed live tools 3000 Rpm 3000 Rpm
Power live tools 9 kW 9 kW
Chip conveyor yes yes
Tool eye yes yes
Pinole taper 6 Mk 6 Mk
Stroke pinole 150 mm 5.906 inch
Quill Ø 160 mm 6.299 inch

Dimensions (Estimate)

Length 7350 mm 289.37 inch
Width 3160 mm 124.409 inch
Height 2800 mm 110.236 inch
Weight 22000 kg 48523.6 lbs
