This machine is reserved

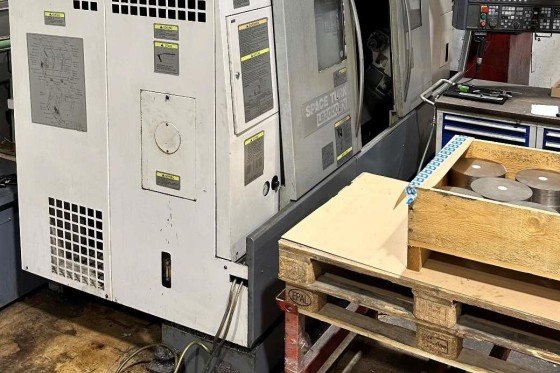

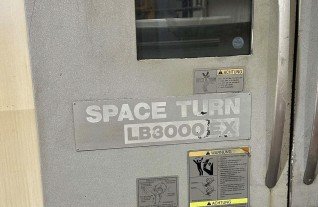

CNC Lathe with c-axis Okuma - LB 3000 EX
MACH-ID 8519| Make: | Okuma |
| Type: | LB 3000 EX |
| Control: | OSP-P200L |
| Year: | 2007 |
- Chip conveyor
- SMW 315 3 chuck
- 2 x Radial live tooling holders
- 2 x Axial live tooling holders
- Spindle bore 80 mm
- BMT-Tooling system
- Tool measuring probe
- Spindle hours 6960 / 6270 Running hours
Specifications
Max. turning Ø
470 mm
18.504 inch
X-Axis
260 mm
10.236 inch
Z-Axis
1065 mm
41.929 inch
Spindle bore
80 mm
3.15 inch
Speedrange
4200 Rpm
4200 Rpm
Spindle power
30 kW
30 kW
ATC / revolver
12 BMT Tool system
12 BMT Tool system
Speed live tools
6000 Rpm
6000 Rpm
Power live tools
7,1 kW
7,1 kW
Dimensions (Estimate)
Length
3310 mm
130.315 inch
Width
1900 mm
74.803 inch
Height
1970 mm
77.559 inch
Weight
6100 kg
13454.3 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
