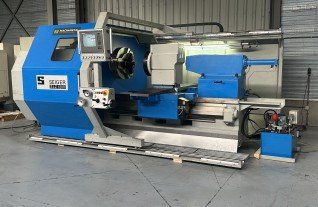

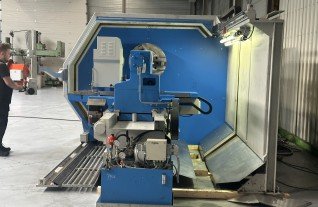

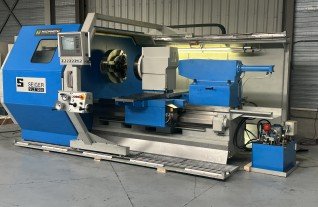

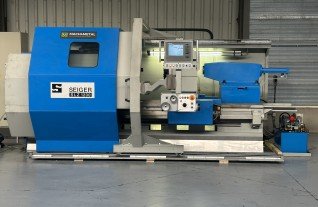

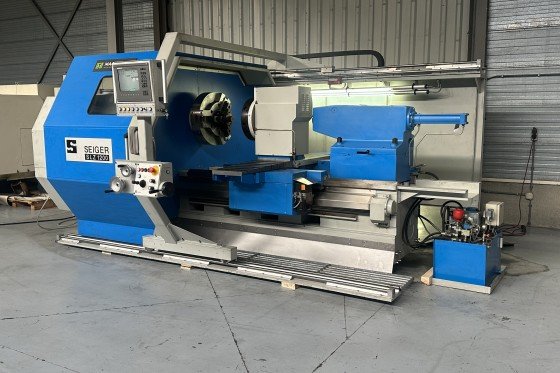

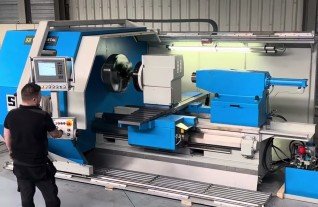

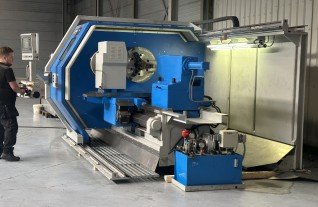

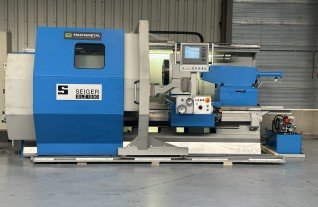

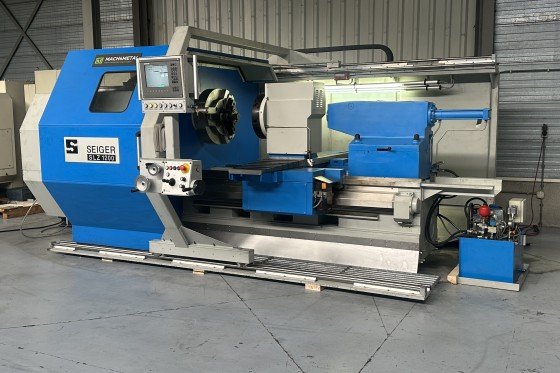

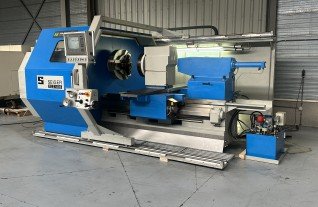

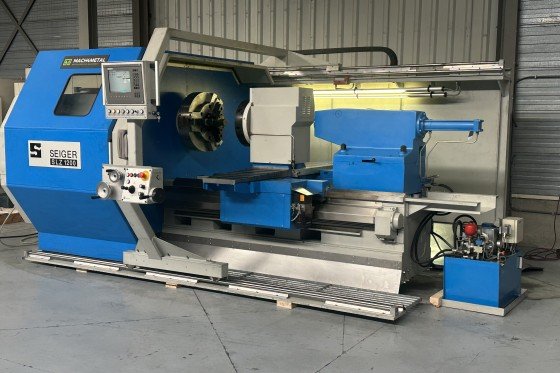

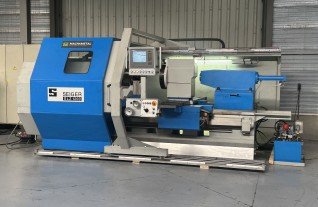

CNC Lathe with c-axis Seiger - SLZ 1200
MACH-ID 7706| Make: | Seiger |
| Type: | SLZ 1200 |

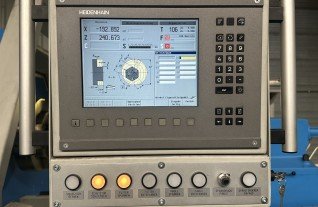

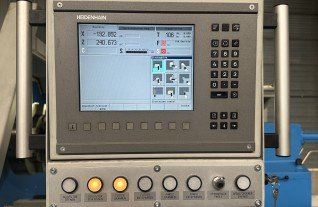

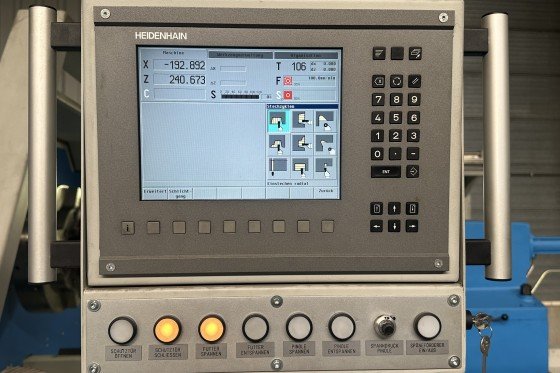

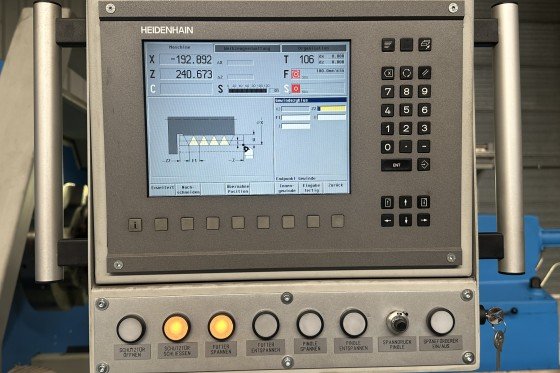

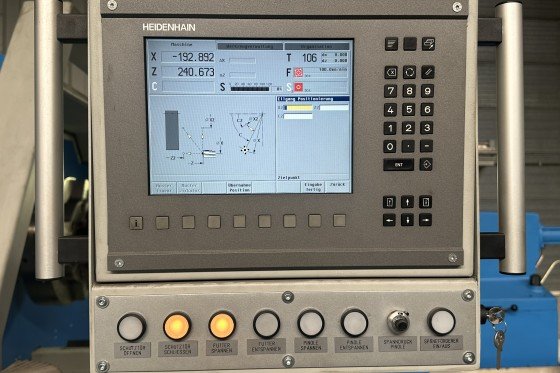

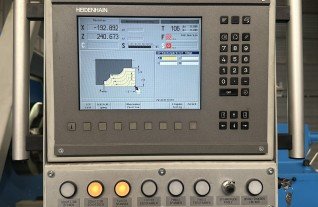

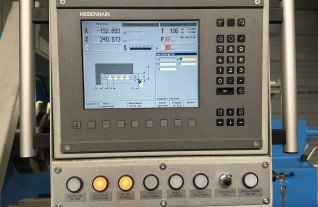

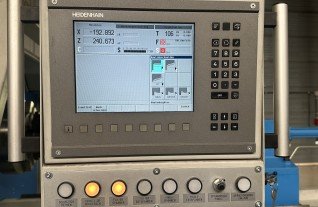

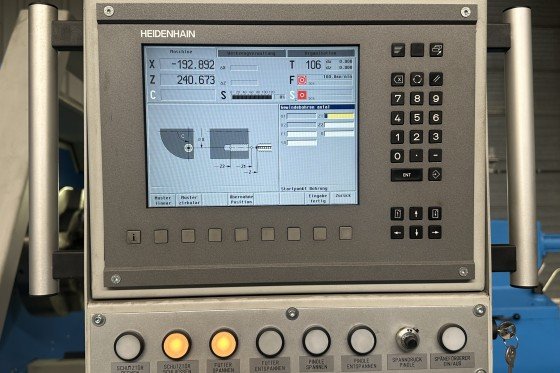

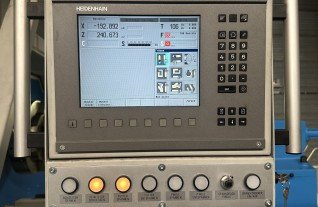

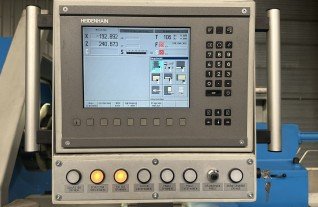

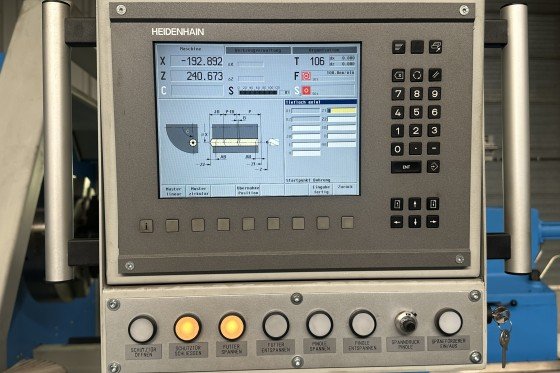

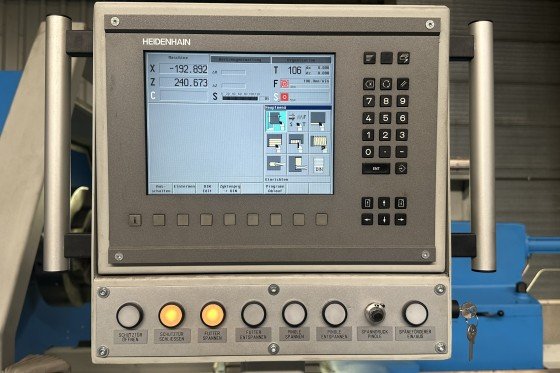

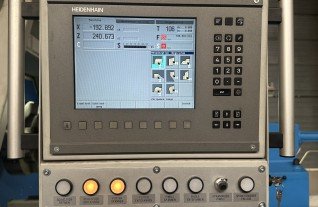

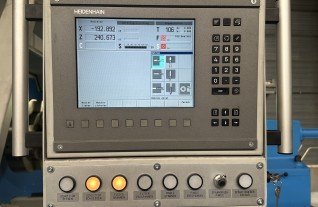

| Control: | Heidenhain Manuel Plus |
| Year: | 2003 |

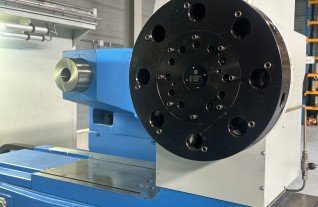

- C-Axis with 360 Positions
- Live driven tooling

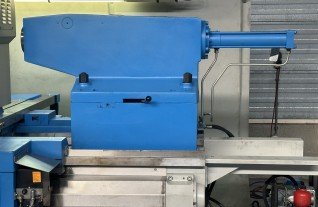

- Hydraulic tailstock
- Manuel plus contgrol

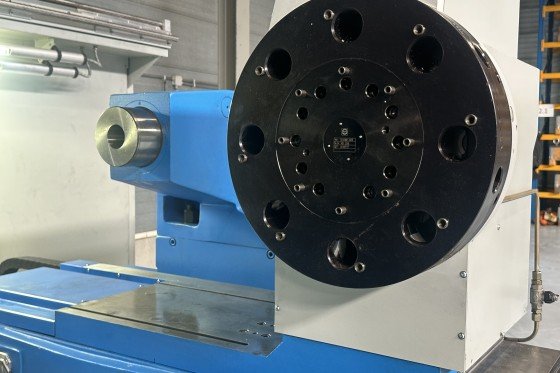

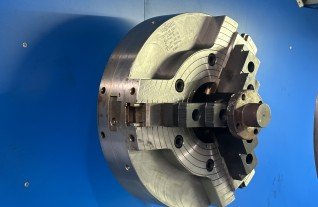

- 3 chuck ROHM
- Chip conveyor
Specifications
Swing over bed Ø
1250 mm
49.213 inch
Swing over cross slide Ø
850 mm
33.465 inch
Spindle bore
130 mm
5.118 inch
Spindle power
46 kW
46 kW

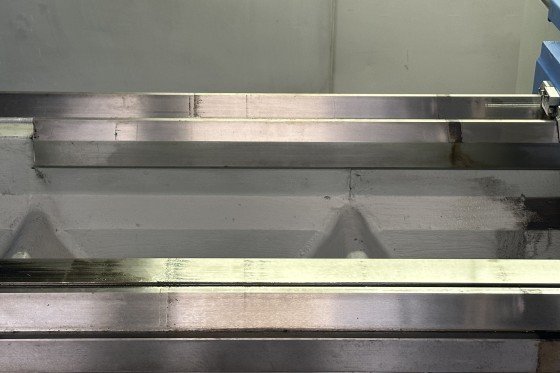

Bed width
750 mm
29.528 inch

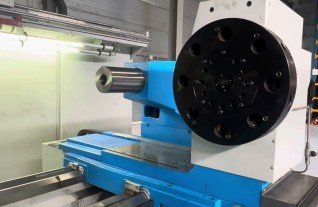

Tailstock spindle Ø
160 Ø
160 Ø
Stroke pinole
315 mm
12.402 inch
Spindle taper
6 Mk
6 Mk
Speeds / ranges
710 Rpm
710 Rpm
Dimensions (Estimate)
Length
6800 mm
267.716 inch
Width
3300 mm
129.921 inch
Height
2800 mm
110.236 inch
Weight
12000 kg
26467.4 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
