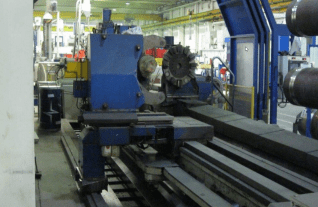

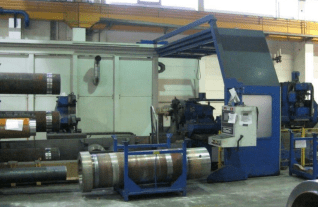

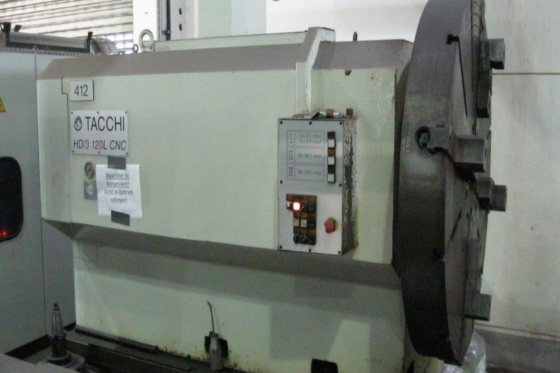

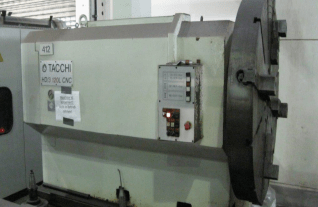

CNC Lathe with c-axis Tacchi - HD3 / 120 L

MACH-ID 8797

Make:	Tacchi
Type:	HD3 / 120 L
Control:	Siemens 840 C
Year:	1994

Whatsapp question

Motorized tailstock

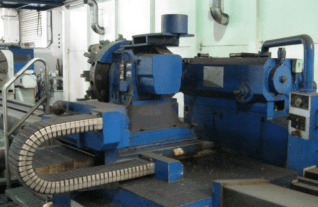

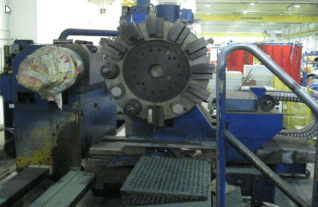

Milling tower with horizontal & vertical
C Type steady rest

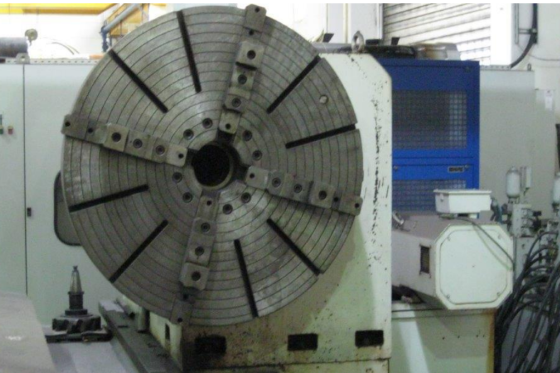

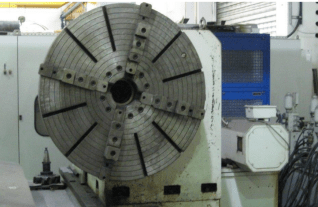

4 chuck 1200 mm

Specifications

Metric US Standard

Swing over bed Ø 1400 mm 55.118 inch

Swing over cross slide Ø 1250 mm 49.213 inch

DBC Turning Length 7000 mm 275.59 inch

Spindle bore 150 mm 5.906 inch

Spindle power 60 kW 60 kW

Bed width 1050 mm 41.339 inch

Tailstock spindle Ø 210 Ø 210 Ø

Stroke pinole 300 mm 11.811 inch

Spindle taper 6 Mk 6 Mk

Workpiece weight 16000 16000

Speeds / ranges 560 Rpm 560 Rpm

Feed rate X-Axis 0 - 6000 mm/min. 0 - 6000 mm/min.

Feed rate Z-Axis 0 - 6000 mm/min. 0 - 6000 mm/min.

Dimensions (Estimate)

Length 12000 mm 472.44 inch

Width 4500 mm 177.165 inch

Height 2900 mm 114.173 inch

Weight 40000 kg 88224.8 lbs
