This machine is sold

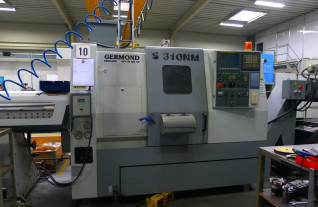

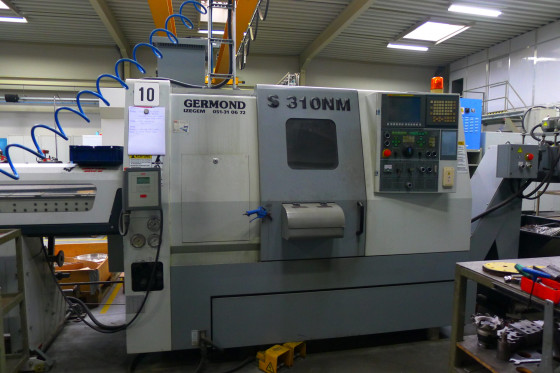

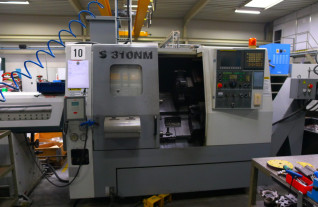

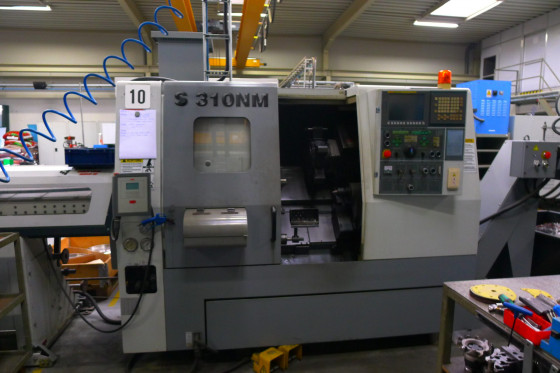

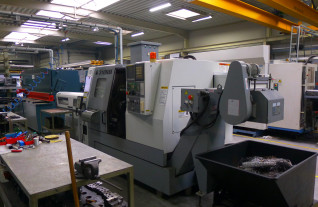

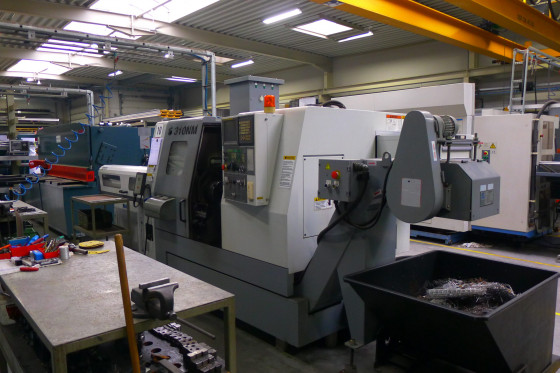

CNC Lathe DOOSAN - S-310 N
CNC Lathe Ø 310 x 450 mm MACH-ID 6279| Make: | DOOSAN |
| Type: | S-310 N |
| Year: | 2006 |
Specifications
Max. turning Ø
500 mm
19.685 inch
X-Axis
200 mm
7.874 inch
Z-Axis
450 mm
17.717 inch
Spindle bore
65 mm
2.559 inch
Speedrange
4500 Rpm
4500 Rpm
Spindle power
15 kW
15 kW
ATC / revolver
12
12
Pinole taper
5 Mk
5 Mk
Stroke pinole
100 mm
3.937 inch
Quill Ø
60 mm
2.362 inch
Dimensions (Estimate)
Length
2600 mm
102.362 inch
Width
2000 mm
78.74 inch
Height
1800 mm
70.866 inch
Weight
3000 kg
6616.9 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
