This machine is sold
CNC Lathe ECOCA - EL 4615 E
Teach-in Cycle lathe Ø 460 x 1500 mm MACH-ID 6369| Make: | ECOCA |
| Type: | EL 4615 E |
| Year: | 2003 |

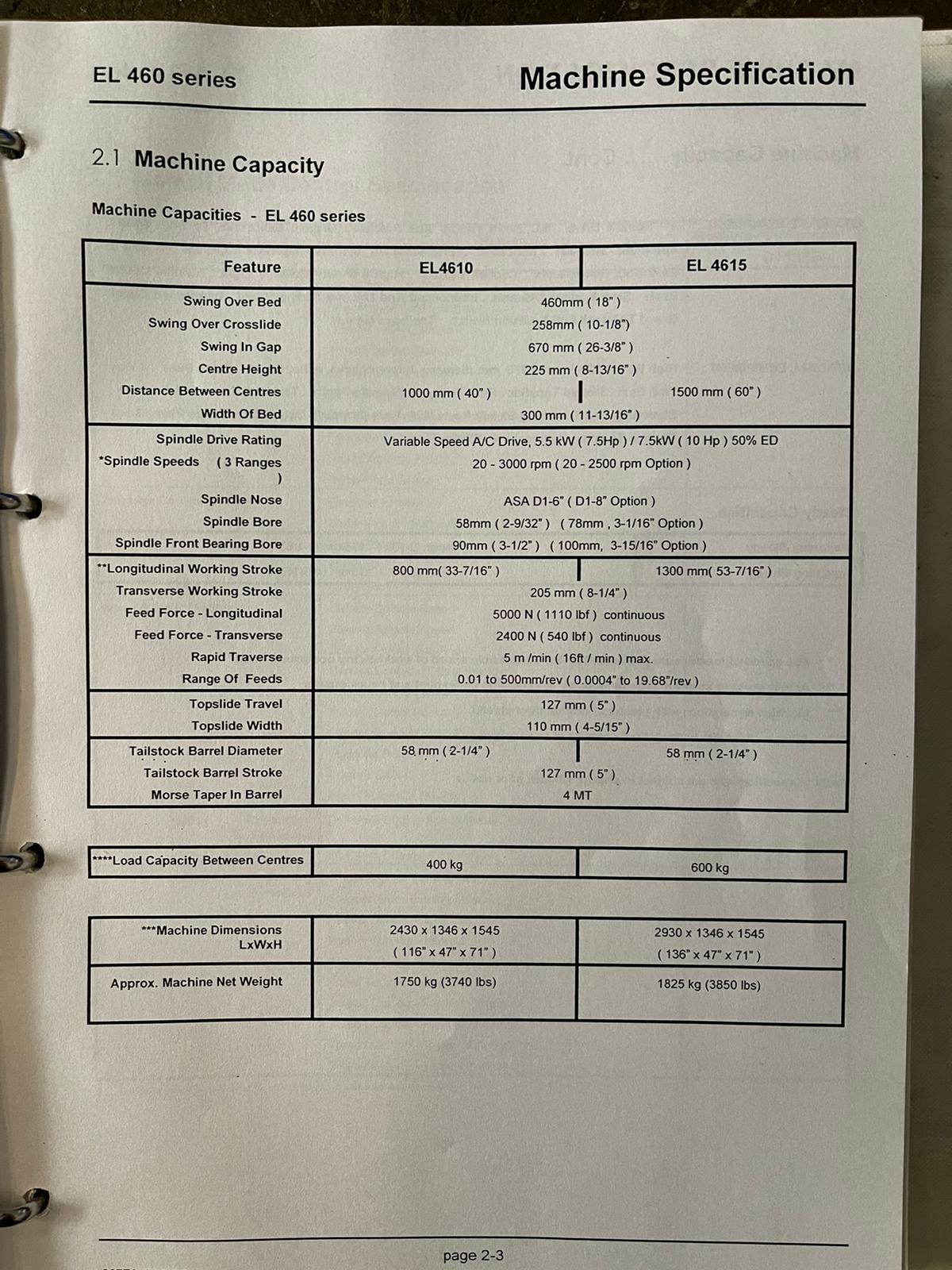

Specifications
Swing over bed Ø
460 mm
18.11 inch
Swing over cross slide Ø
258 mm
10.157 inch
Swing in the gap Ø
670 mm
26.378 inch
DBC Turning Length
1500 mm
59.055 inch
Spindle bore
58 mm
2.283 inch
Spindle power
7.5 kW
7.5 kW
Bed width
300 mm
11.811 inch
Tailstock spindle Ø
58 Ø
58 Ø
Stroke pinole
127 mm
5 inch
Spindle taper
4 Mk
4 Mk
Speeds / ranges
3000 Rpm
3000 Rpm
Feed rate X-Axis
5000 mm/min.
5000 mm/min.
Feed rate Z-Axis
5000 mm/min.
5000 mm/min.

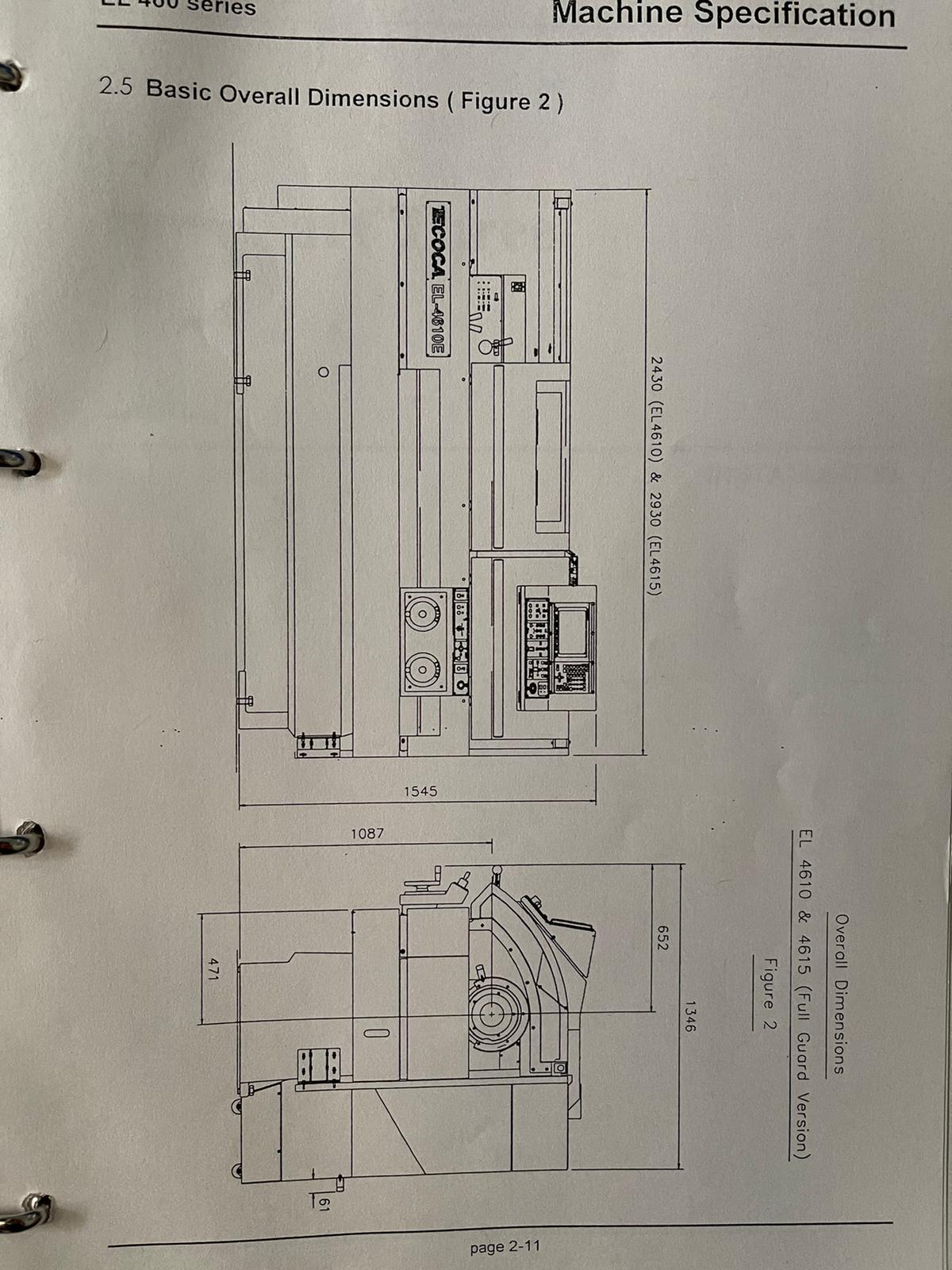

Dimensions (Estimate)
Length
2930 mm
115.354 inch
Width
1346 mm
52.992 inch
Height
1545 mm
60.827 inch
Weight
1825 kg
4025.3 lbs
