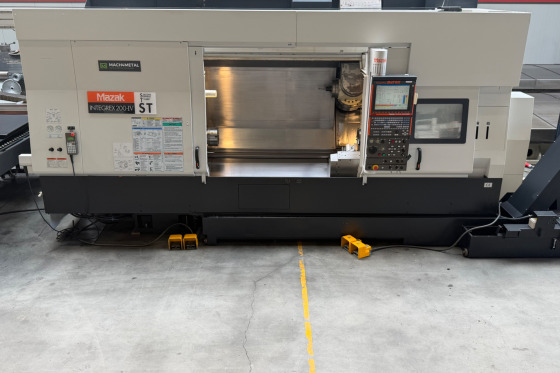

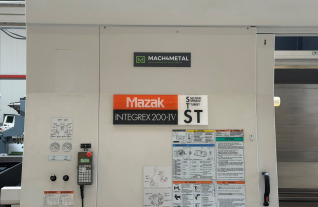

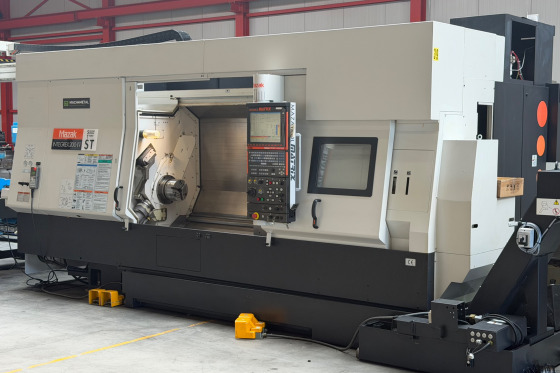

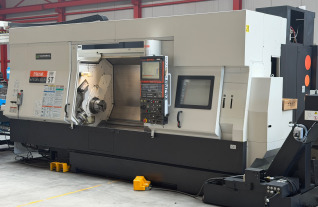

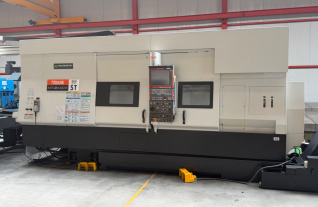

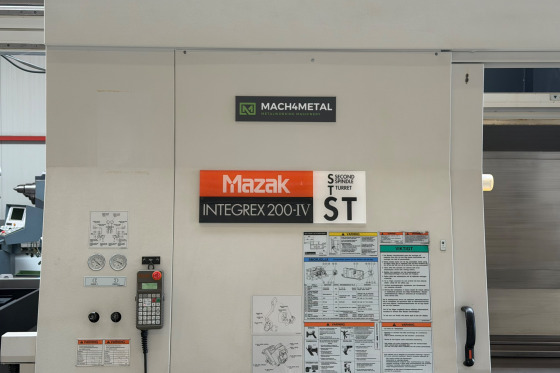

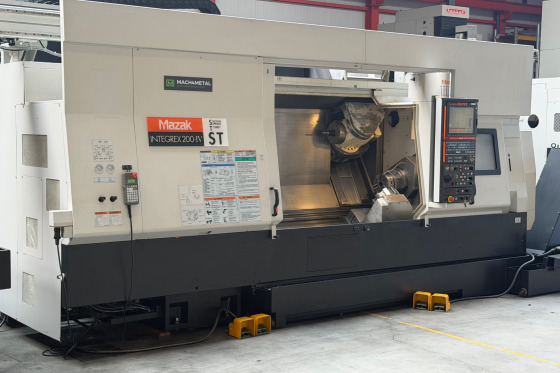

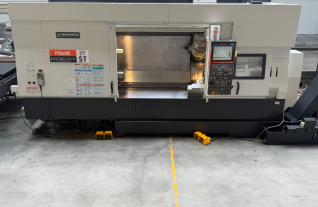

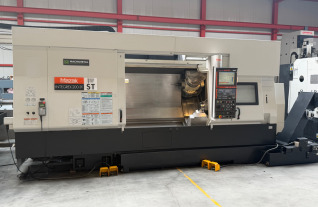

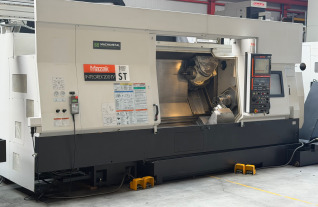

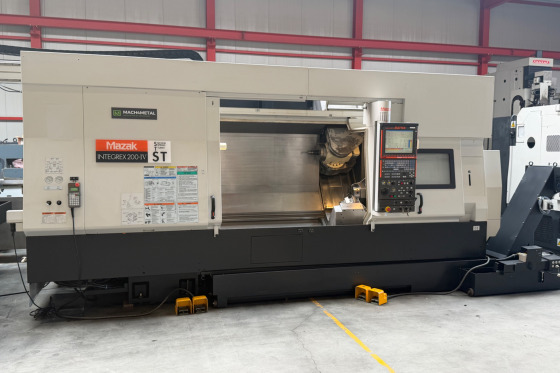

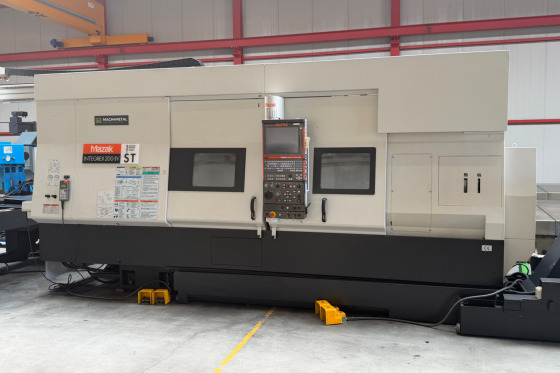

Multi-tasking lathe MAZAK - INTEGREX 200-4 ST

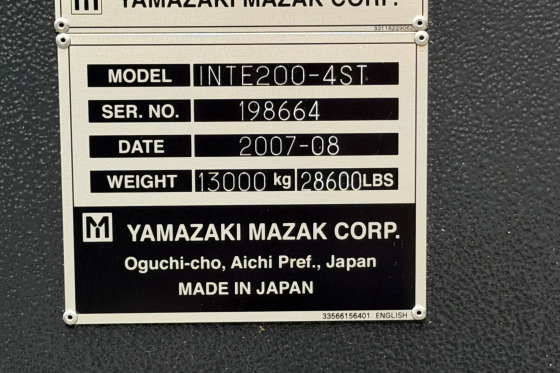

MACH-ID 8938| Make: | MAZAK |
| Type: | INTEGREX 200-4 ST |

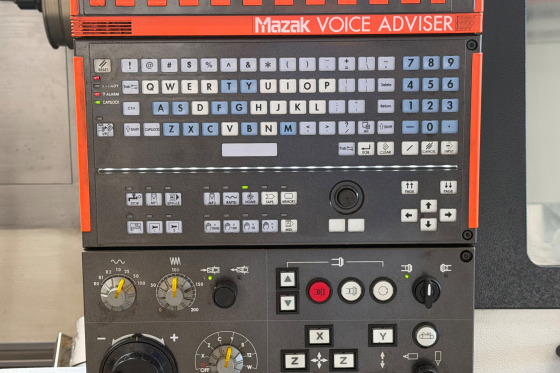

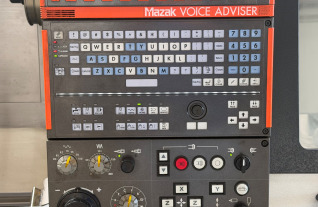

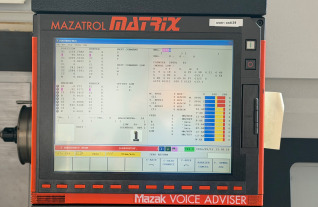

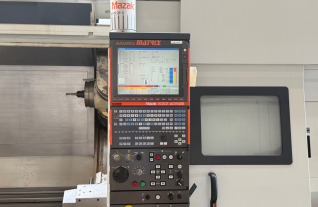

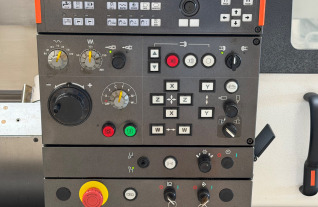

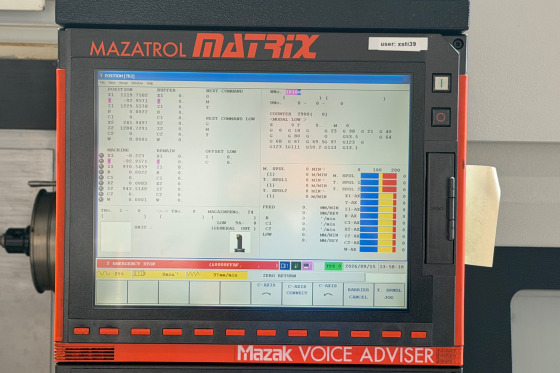

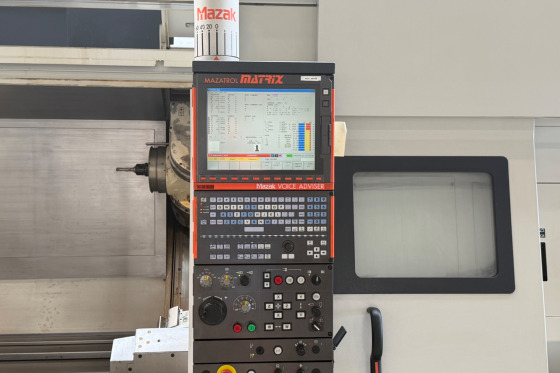

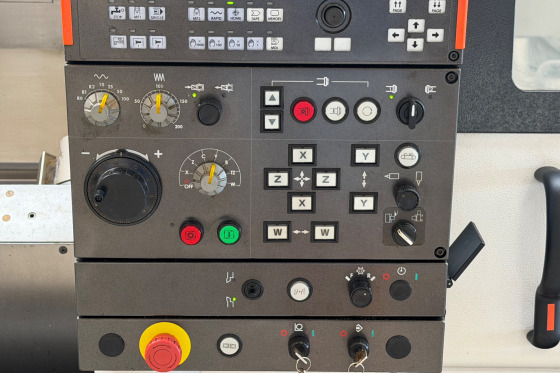

| Control: | MAZATROL MATRIX |

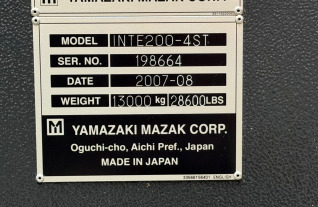

| Year: | 2007 |
- Multi-Tasking Machining in a Single Machine Setup

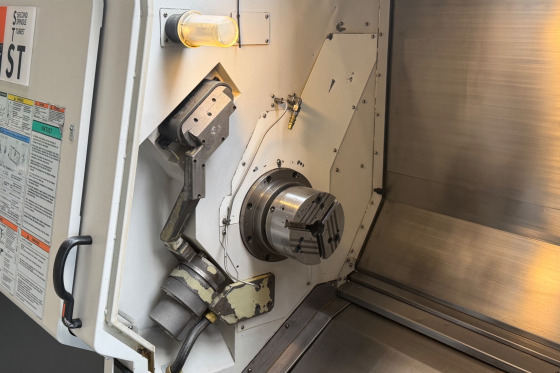

- Sub spindle for overtaking with full C-Axis
- The INTEGREX IV series can finish all machining processes.

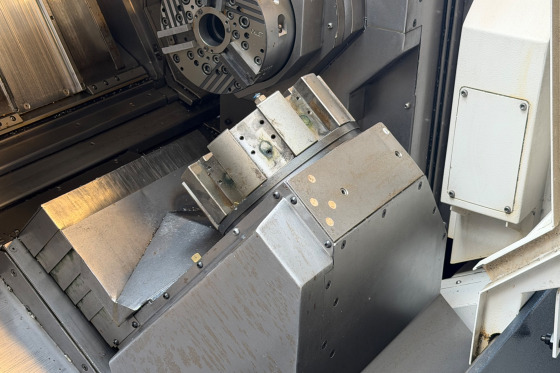

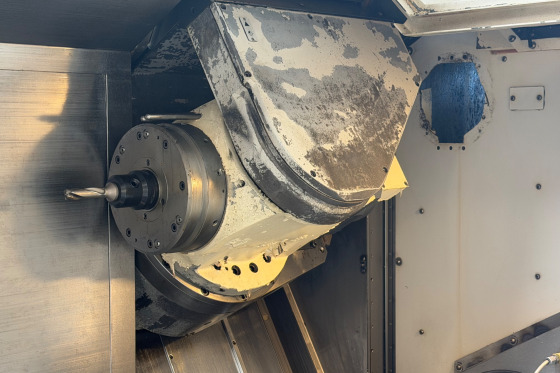

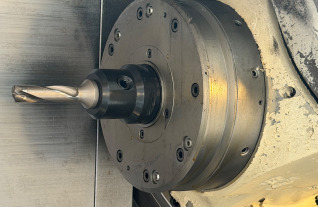

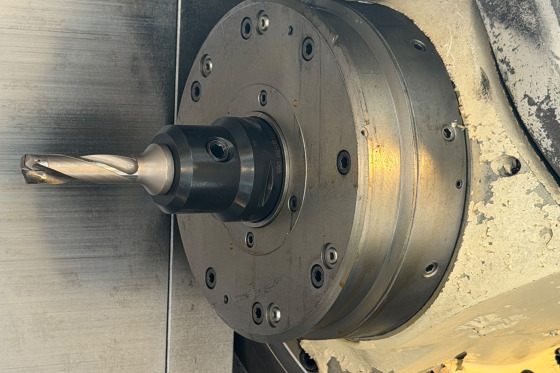

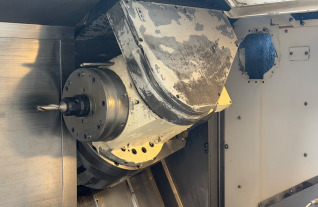

- High speed, advanced milling spindle that can tilt up to 240 degrees swiveling.
- Lower turret with rotary tool spindle so livew tooling

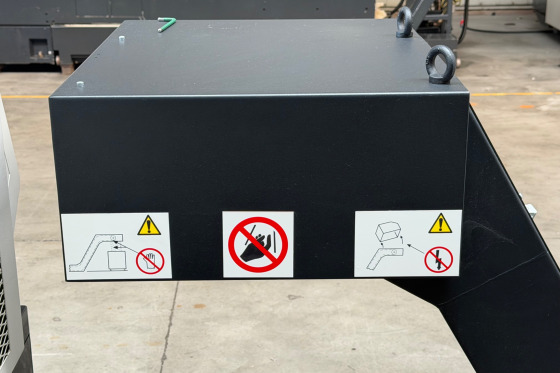

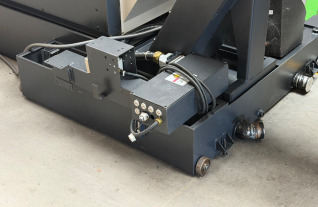

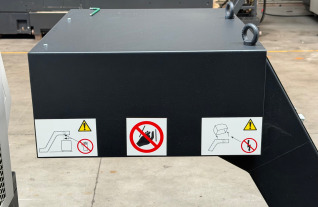

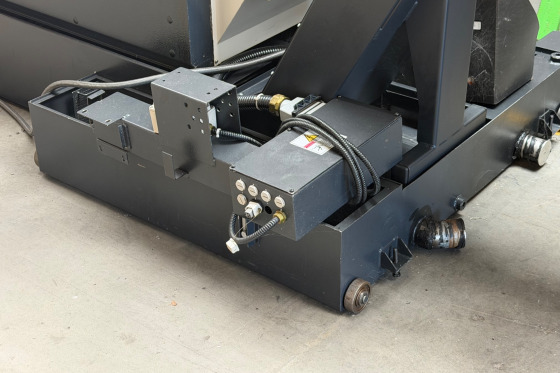

- Chip conveyor with coolant and 15 Bar iKZ

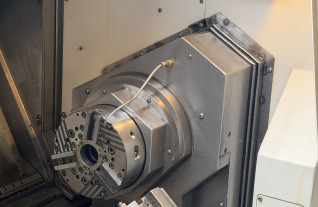

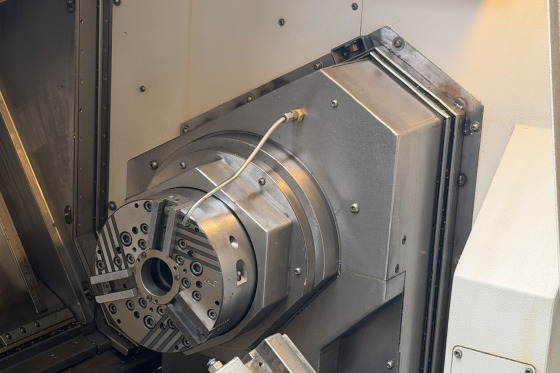

- Double chuck KNCS-N 210-53 SMW Autoblock

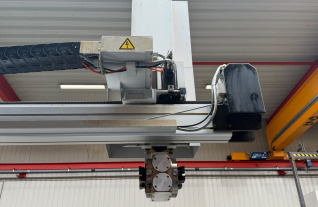

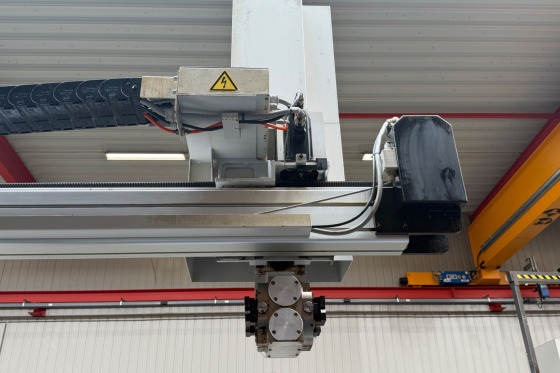

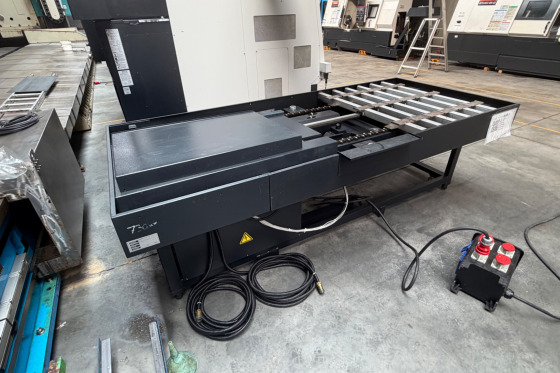

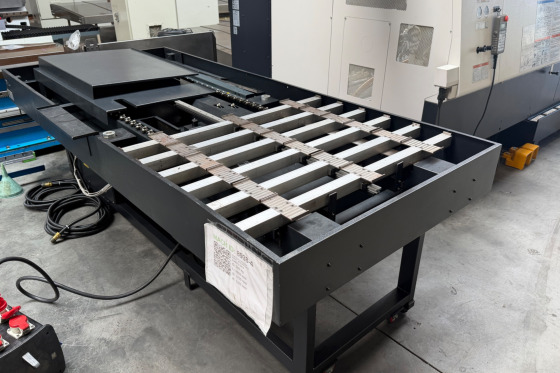

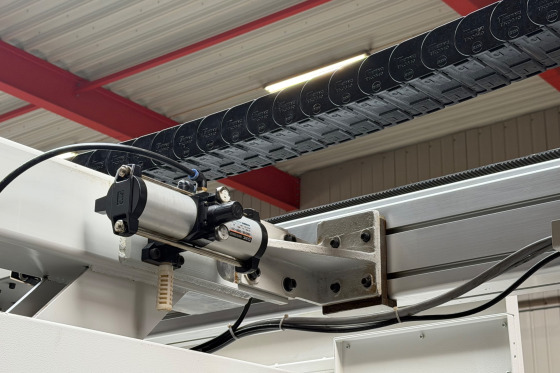

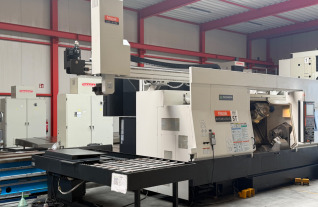

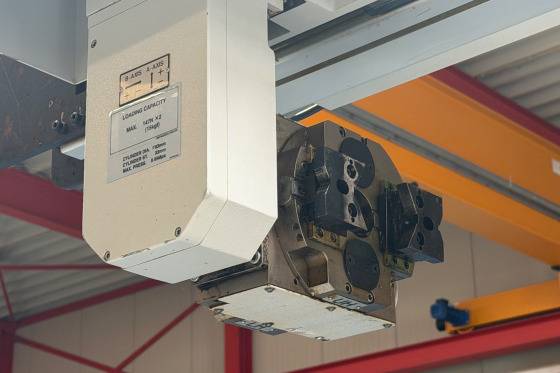

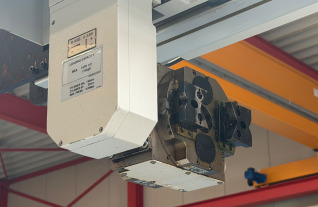

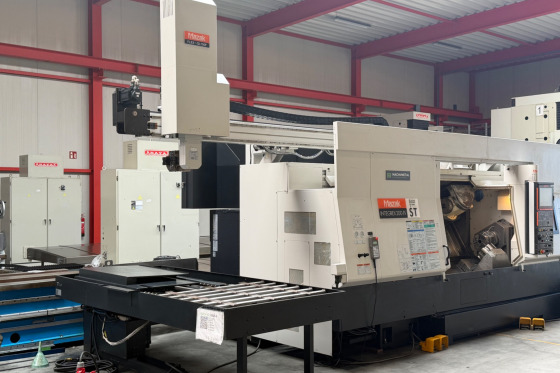

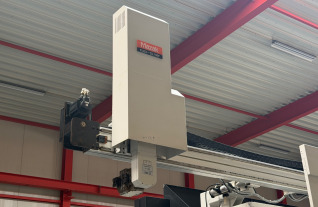

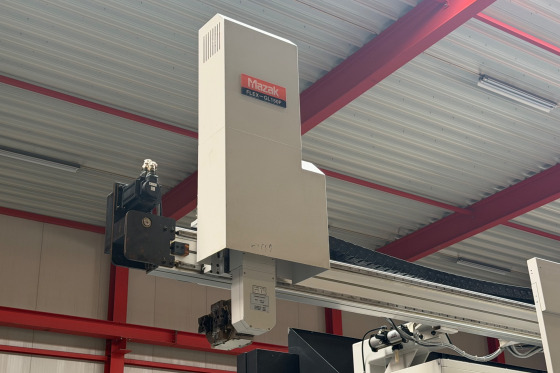

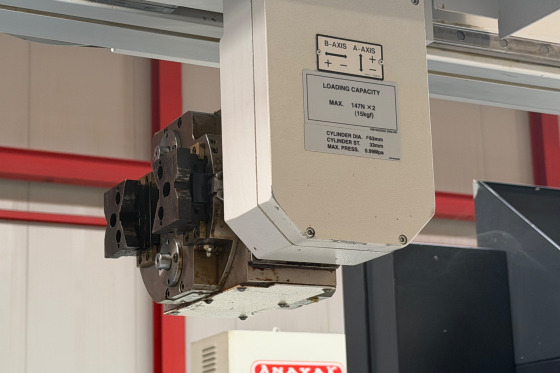

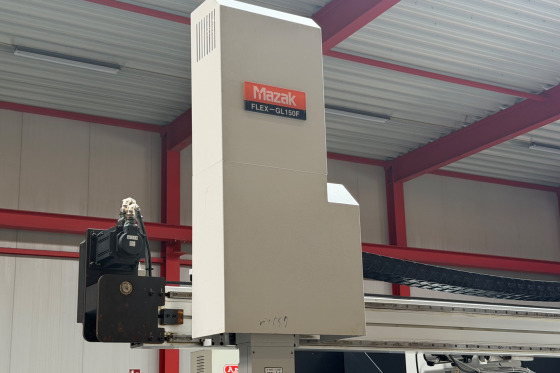

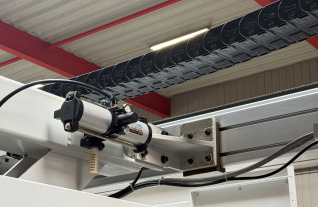

- MAZAK Flex -GL150F Gantry Loader
- Gripping range 200 x 120 length x 15 Kg
Specifications
Max. turning Ø
660 mm
25.984 inch
X-Axis
580 mm
22.835 inch
Y-Axis
160 mm
6.299 inch
Z-Axis
1545 mm
60.827 inch
B Axis
270 °
270 °
Spindle bore
65 mm
2.559 inch
Speedrange
5000 Rpm
5000 Rpm
Spindle power
22 kW
22 kW
Subspindle speeds
5000 Rpm
5000 Rpm
Subspindle bore
65 mm
2.559 inch
Subspindle power
18.5 kW
18.5 kW
ATC / revolver
40
40
B-Axis Toolsystem
Capto C6
Capto C6
B-Axis Speedranges
12000 Rpm
12000 Rpm
Dimensions (Estimate)
Length
5200 mm
204.724 inch
Width
2550 mm
100.394 inch
Height
2600 mm
102.362 inch
Weight
14000 kg
30878.7 lbs
