MAZAK Integrex 300 IV ST Multitasking Mill Turn Mazatrol MATRIX MACH4METAL 6674 2-2 B-Axis B-Achse

This machine is sold

Go to: Machine alert

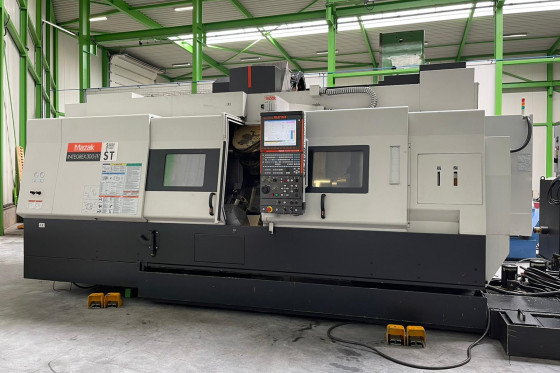

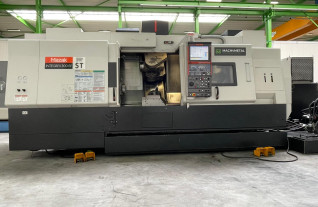

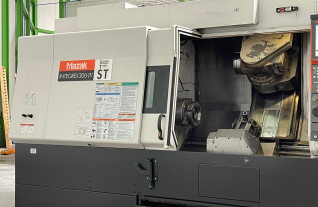

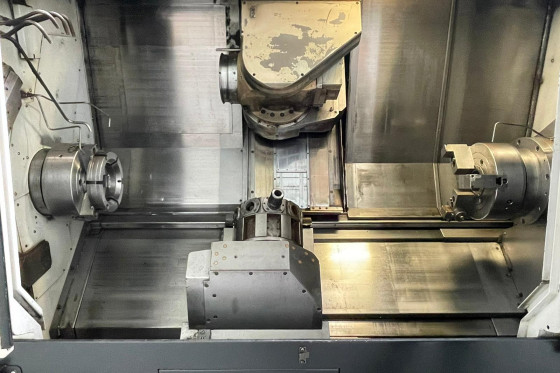

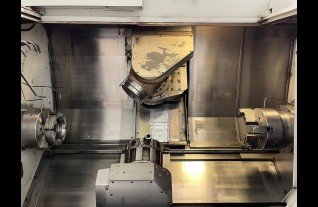

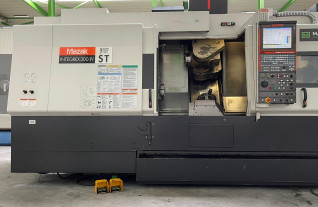

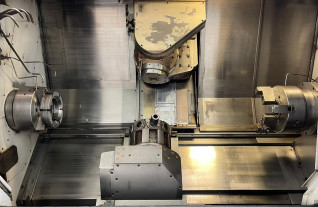

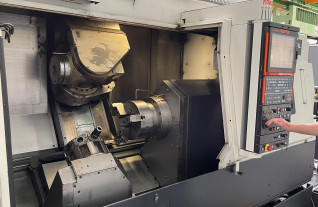

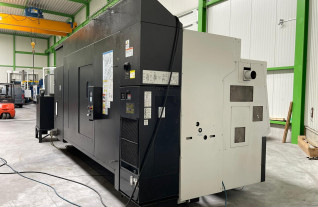

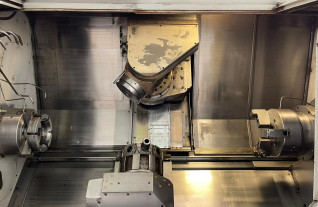

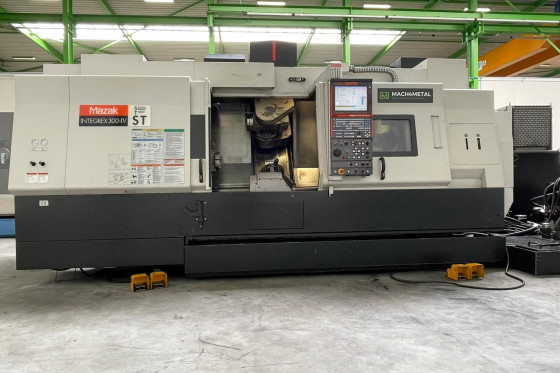

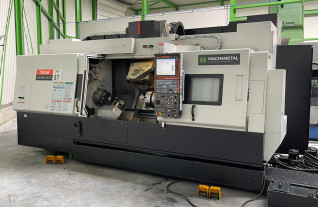

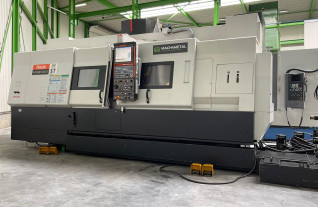

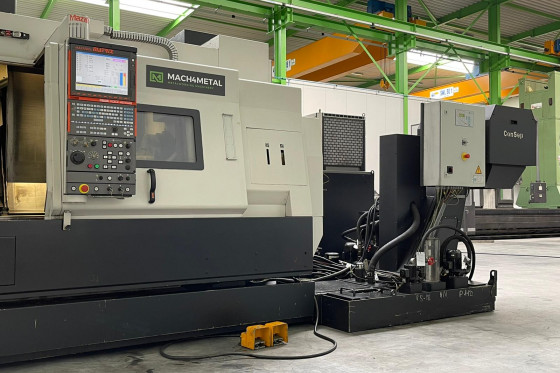

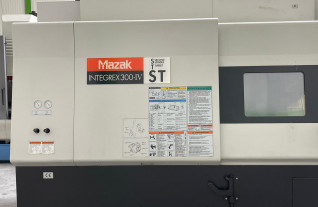

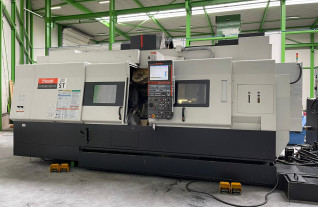

Multi-tasking lathe MAZAK - Integrex 300 IV-ST

Multitasking Ø 760 x 1524 mm MACH-ID 6674

Make:	MAZAK
Type:	Integrex 300 IV-ST
Year:	2007

Whatsapp question

Specifications

Metric US Standard

Max. turning Ø 760 mm 29.921 inch

X-Axis 630 + 230 (X2) mm 630 + 230 (X2) inch

Y-Axis 230 mm 9.055 inch

Z-Axis 1585 mm 62.401 inch

B Axis 225 ° 225 °

Spindle bore 77 mm 3.031 inch

Speedrange 4000 Rpm 4000 Rpm

Spindle power 30 kW 30 kW

Subspindle speeds 4000 Rpm 4000 Rpm

Subspindle bore 77 mm 3.031 inch

Subspindle power 26 kW 26 kW

ATC / revolver 40 Capto C6 40 Capto C6

B-Axis Toolsystem Capto C6 Capto C6

B-Axis Speedranges 12.000 Rpm 12.000 Rpm

B-Axis power 18,5 kW 18,5 kW

Positions lower revolver 9 9

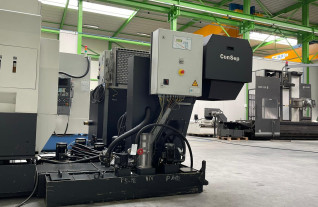

Chip conveyor Yes Yes

Tool eye Yes Yes

Dimensions (Estimate)

Length 7000 mm 275.59 inch

Width 3200 mm 125.984 inch

Height 3200 mm 125.984 inch

Weight 13300 kg 29334.7 lbs

Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
