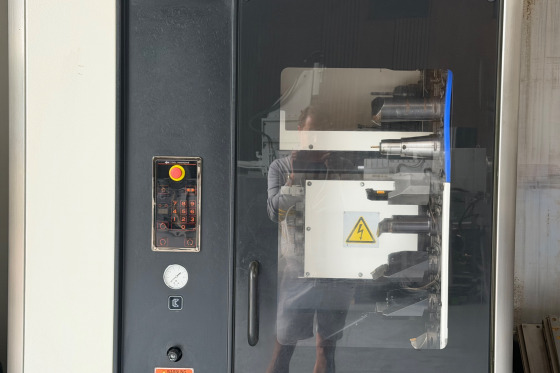

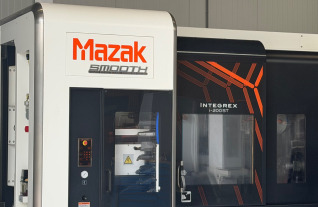

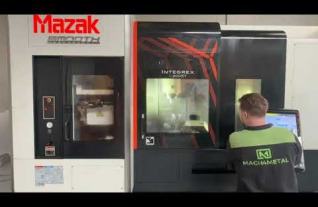

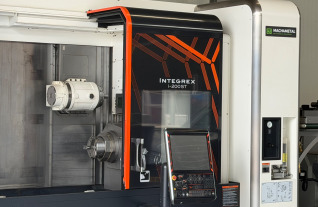

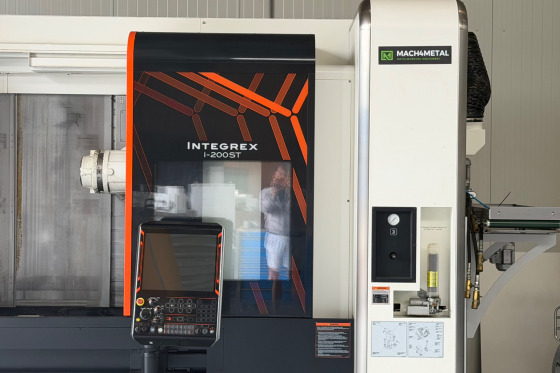

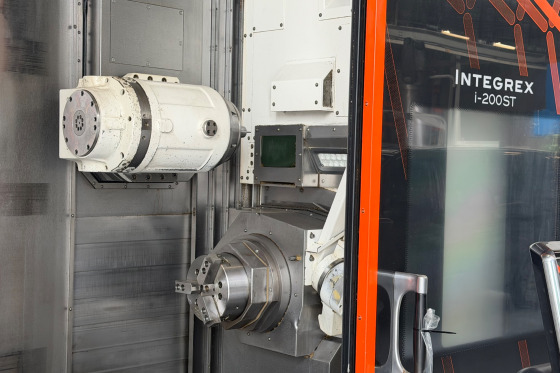

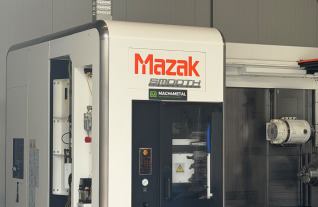

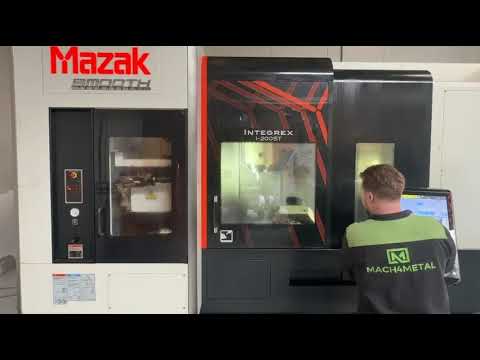

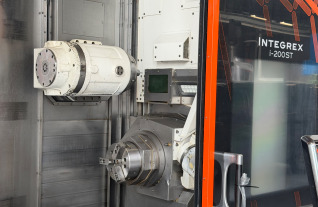

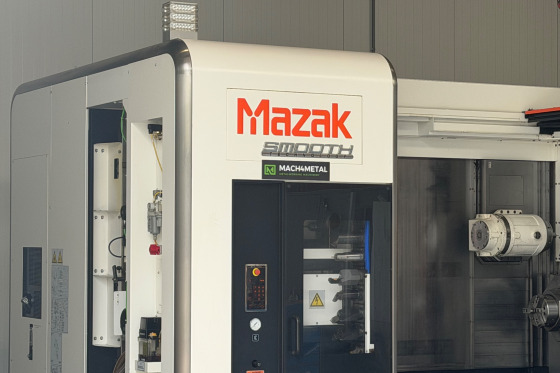

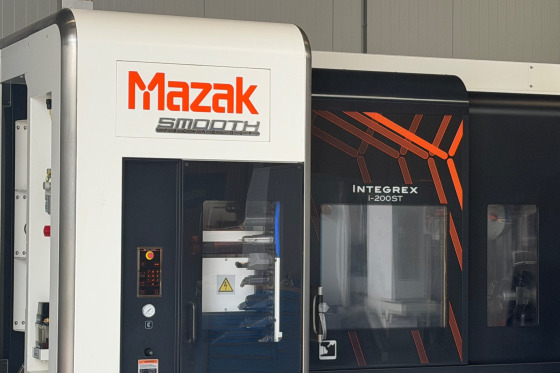

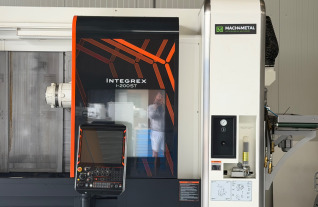

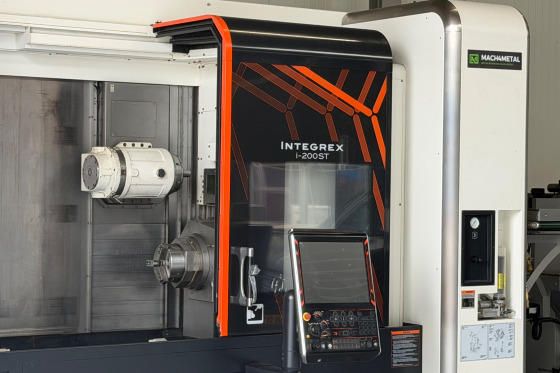

Multi-tasking lathe MAZAK - Integrex i-200ST x 1500U

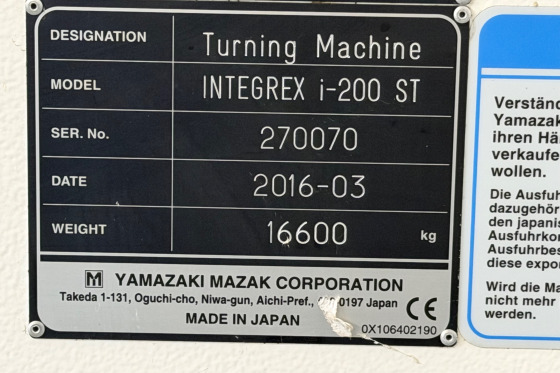

MACH-ID 9804| Make: | MAZAK |
| Type: | Integrex i-200ST x 1500U |

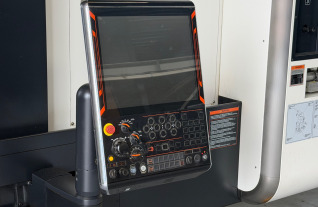

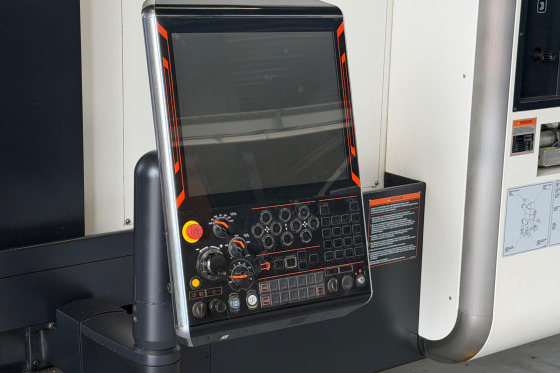

| Control: | SmoothX |
| Year: | 2016 |
- 5 Axis Simuteneous EIA/ISO
- Milling spindel with Threading Function
- Extra M-Code (1 pair for 2-M-Code)
- Preparation RMP-60
- Sub spindel with C Axis any C1 + C2 Synchronisation
- Lower revolver with Live tools 6000 Rpm
- IKZ with 70 Bar main spindel
- IKZ with 15 Bar on lower Revolver
- Knoll Filtration KF-400/2300

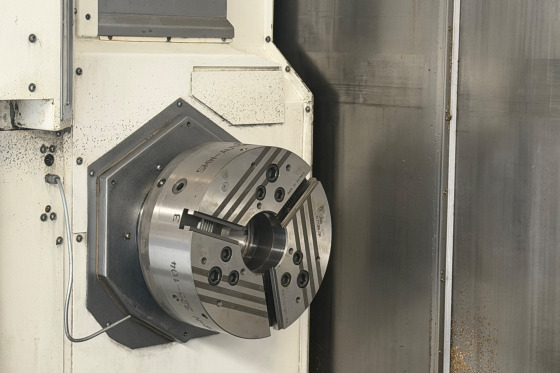

- SMW KNCS-N-325-104 3 chuck

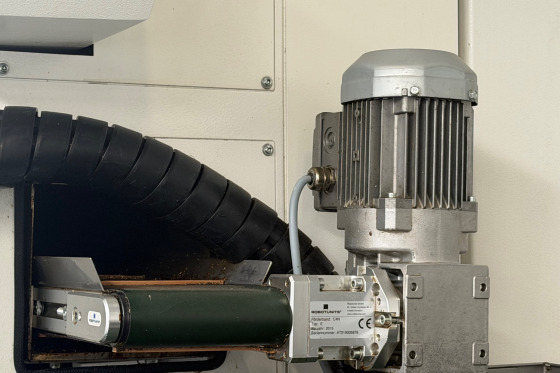

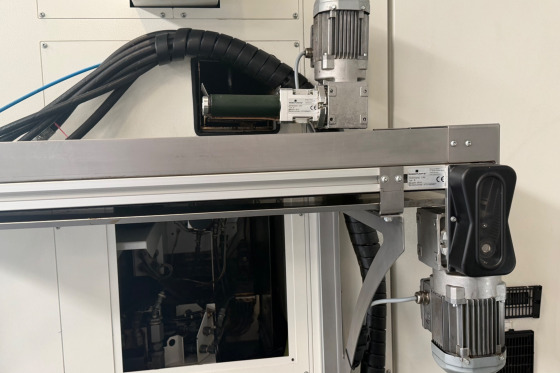

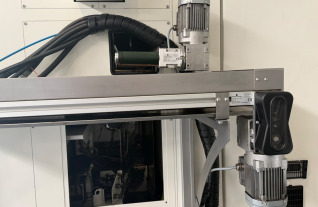

- Robotunits C4N Belt conveyor / Part catcher with side conveyor belt
- CAPTO SANDVIK Tooling package with 36 tools (ca 16 included Turn & Mill)
Specifications
Max. turning Ø
658 mm
25.905 inch
X-Axis
260 mm
10.236 inch
Y-Axis
1585 mm
62.401 inch
Z-Axis
230 mm
9.055 inch
B Axis
360 °
360 °
Spindle bore
76 mm
2.992 inch
Speedrange
5000 Rpm
5000 Rpm
Spindle power
22 kW
22 kW
Subspindle speeds
5000 Rpm
5000 Rpm
Subspindle bore
65 mm
2.559 inch
Subspindle power
22 kW
22 kW
ATC / revolver
36
36
Speed live tools
12000 Rpm
12000 Rpm
B-Axis Toolsystem
HSK-63
HSK-63
Positions lower revolver
9
9
Speed live tools
6000 Rpm
6000 Rpm
Power live tools
5,5 kW
5,5 kW
Dimensions (Estimate)
Length
6100 mm
240.157 inch
Width
3230 mm
127.165 inch
Height
3100 mm
122.047 inch
Weight
16600 kg
36613.3 lbs
