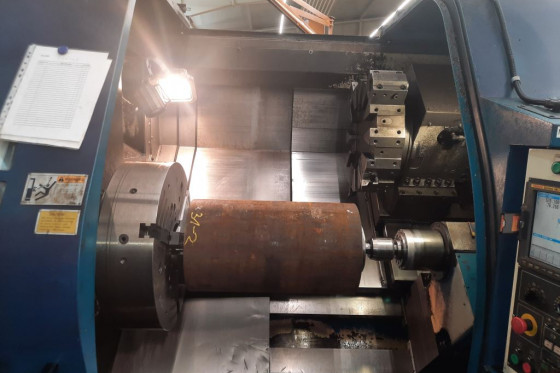

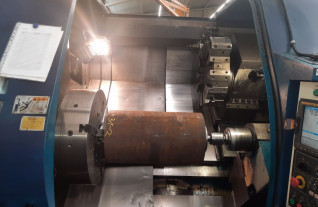

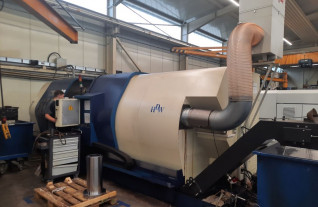

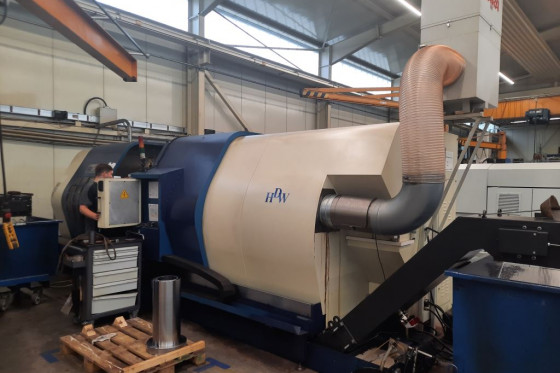

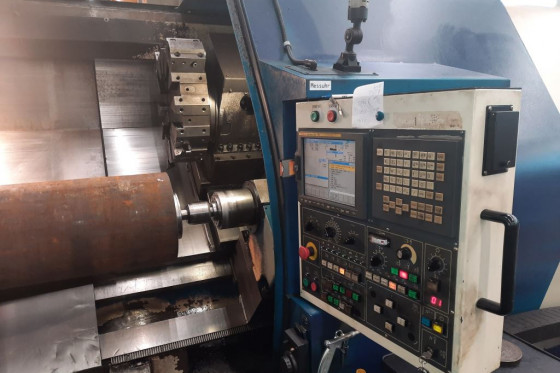

CNC Lathe ProKing - SS 35
CNC Lathe Ø 1135 x 2000 mm MACH-ID 6852| Make: | ProKing |
| Type: | SS 35 |
| Year: | 2008 |
- incl. motorized tailstock
- incl. SMW Autoblock 3 chuck ca 800 mm
- incl. chip conveyor
Specifications
Max. turning Ø
1135 mm
44.685 inch
X-Axis
420 mm
16.535 inch
Z-Axis
2000 mm
78.74 inch
Spindle bore
152 mm
5.984 inch
Speedrange
700 Rpm
700 Rpm
Spindle power
37 kW
37 kW
ATC / revolver
12
12
Pinole taper
5 Mk
5 Mk
Stroke pinole
200 mm
7.874 inch
Quill Ø
160 mm
6.299 inch
Dimensions (Estimate)
Length
5000 mm
196.85 inch
Width
2400 mm
94.488 inch
Height
2600 mm
102.362 inch
Weight
13500 kg
29775.9 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
