This machine is sold

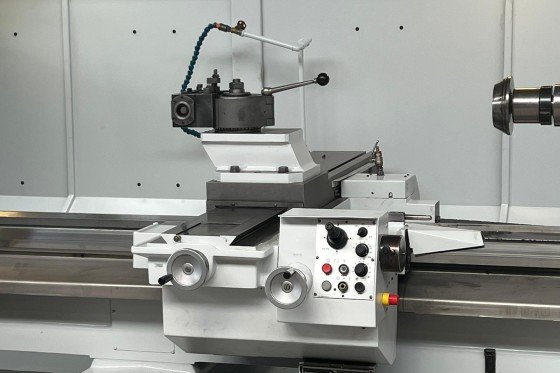

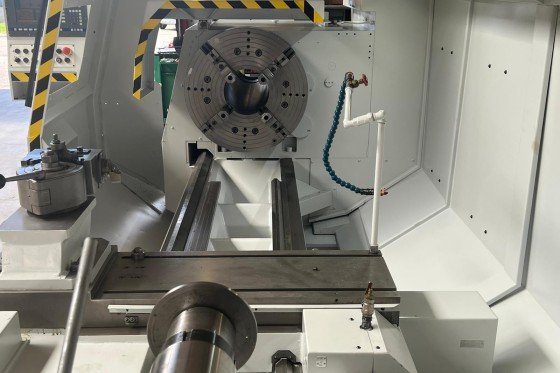

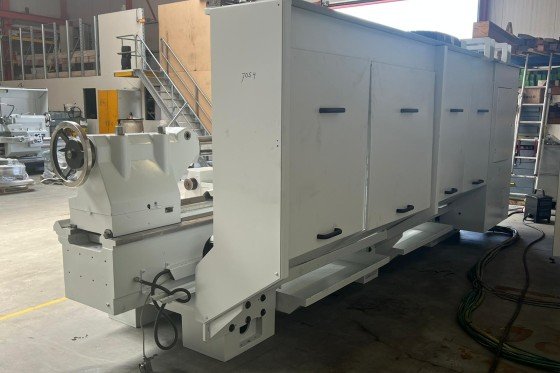

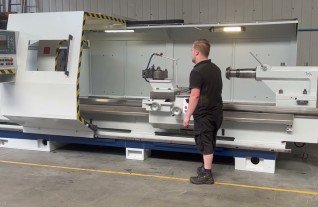

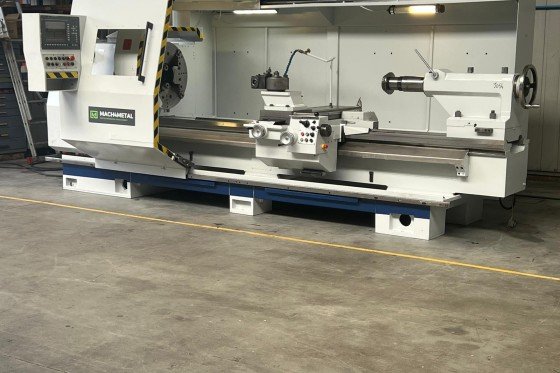

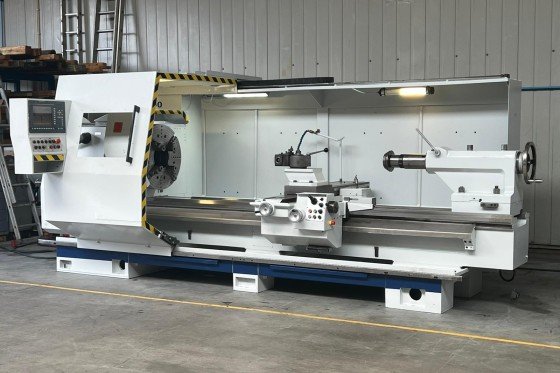

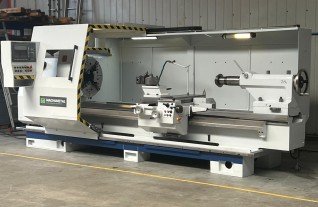

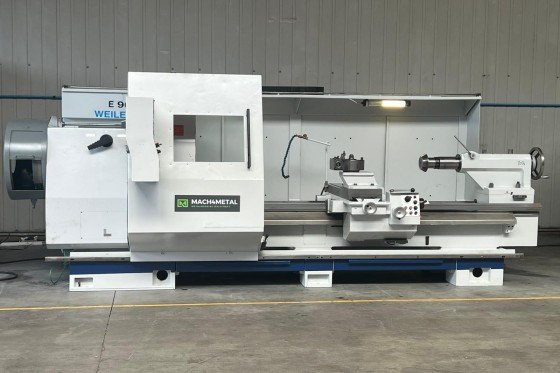

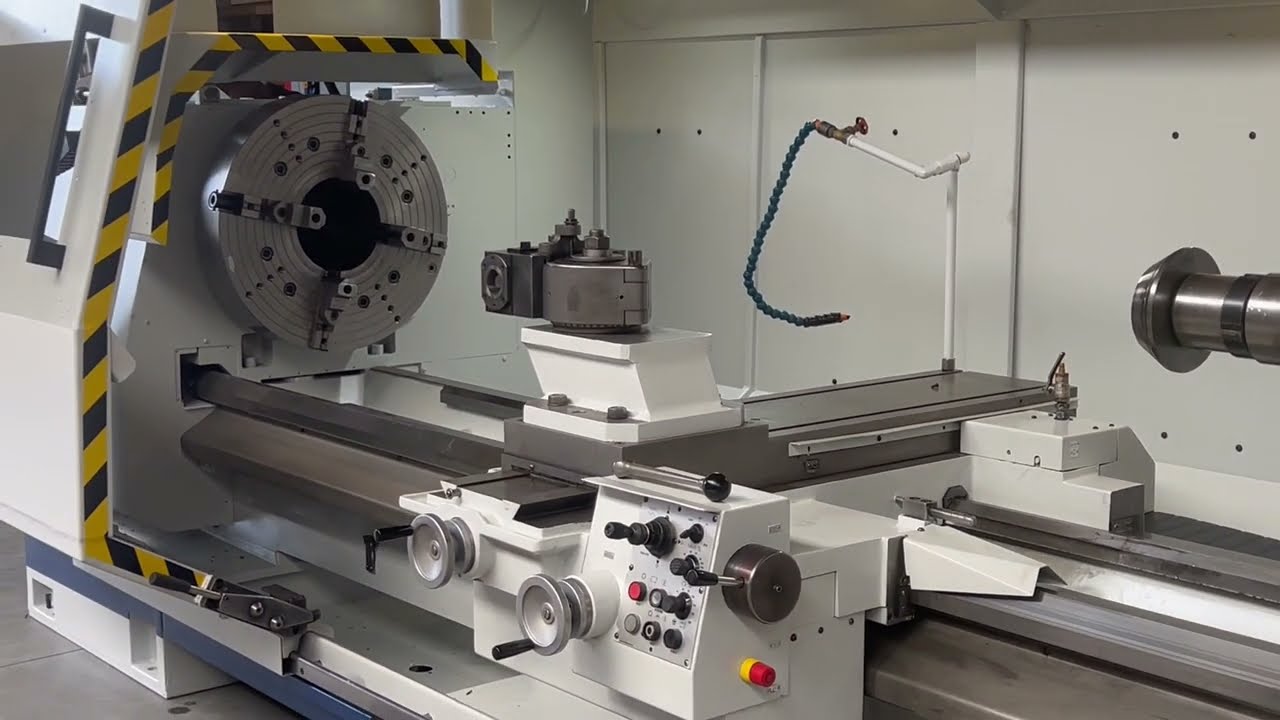

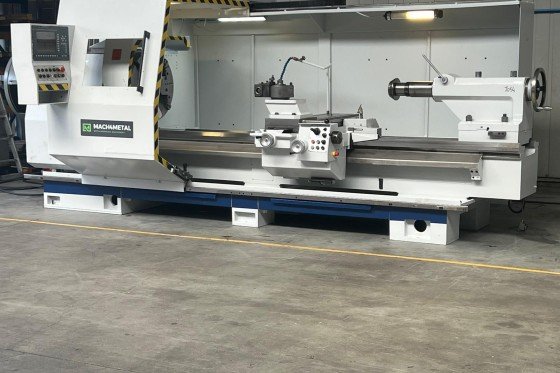

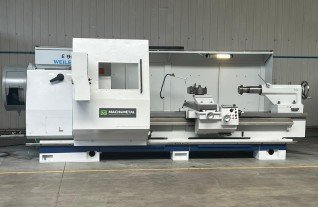

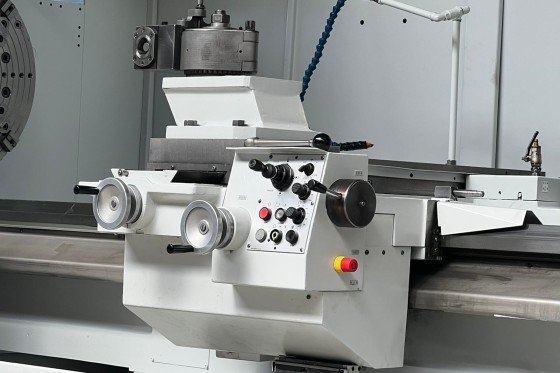

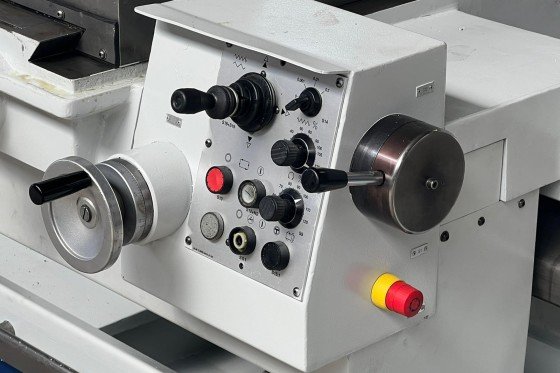

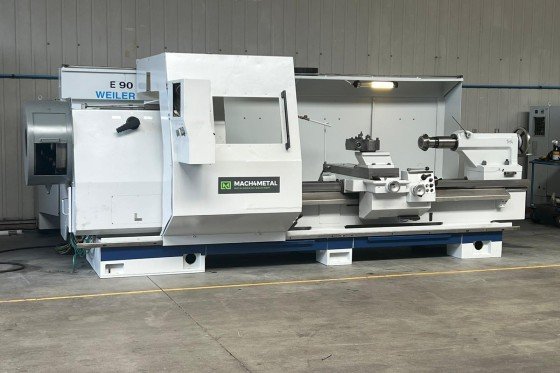

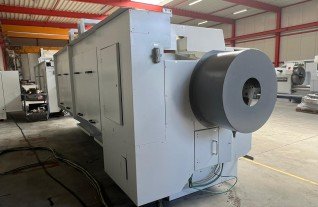

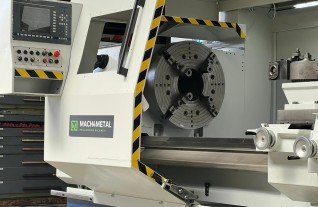

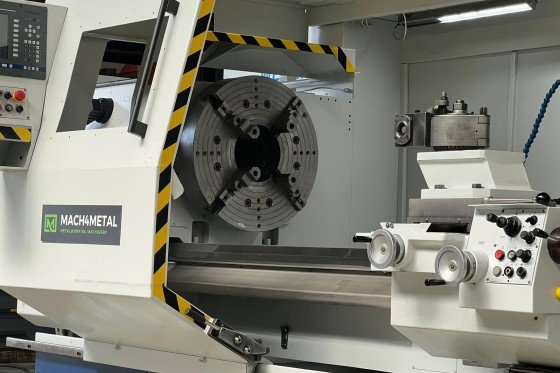

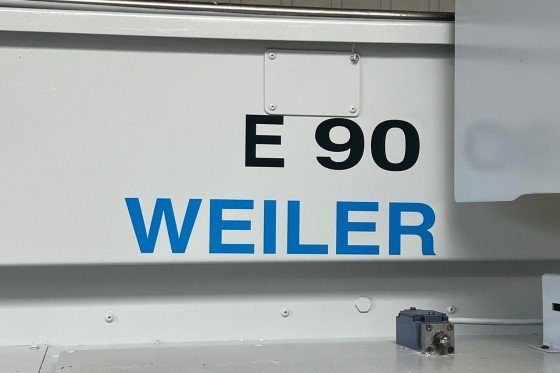

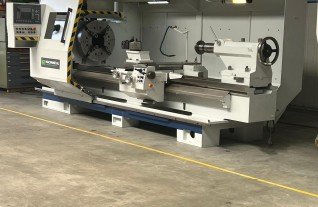

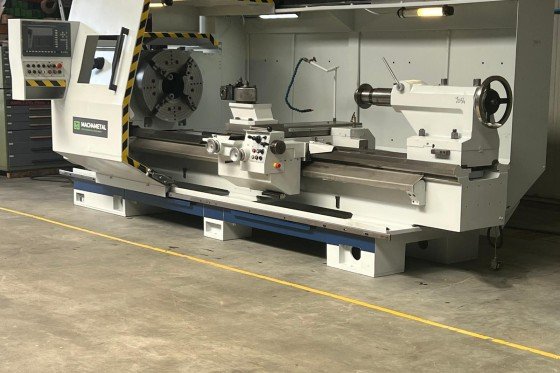

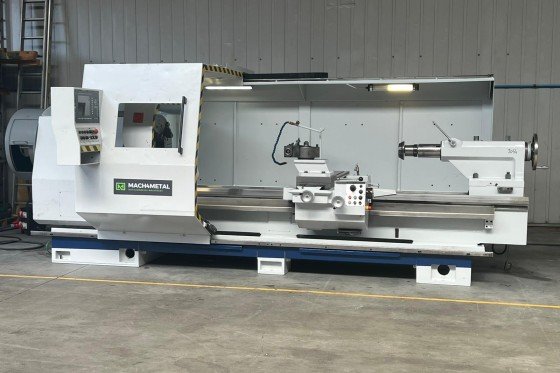

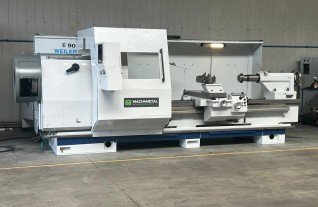

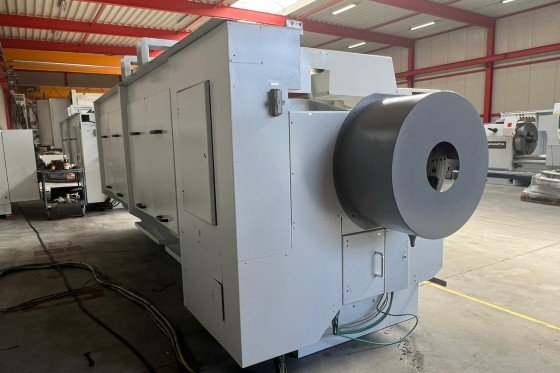

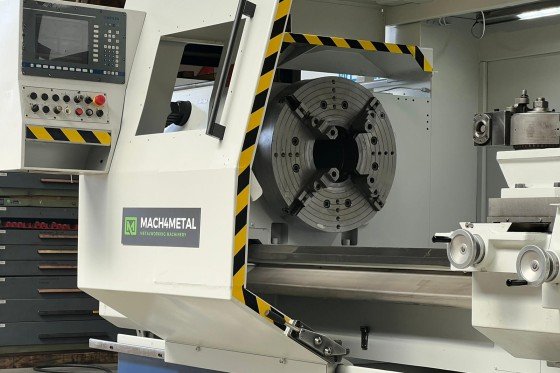

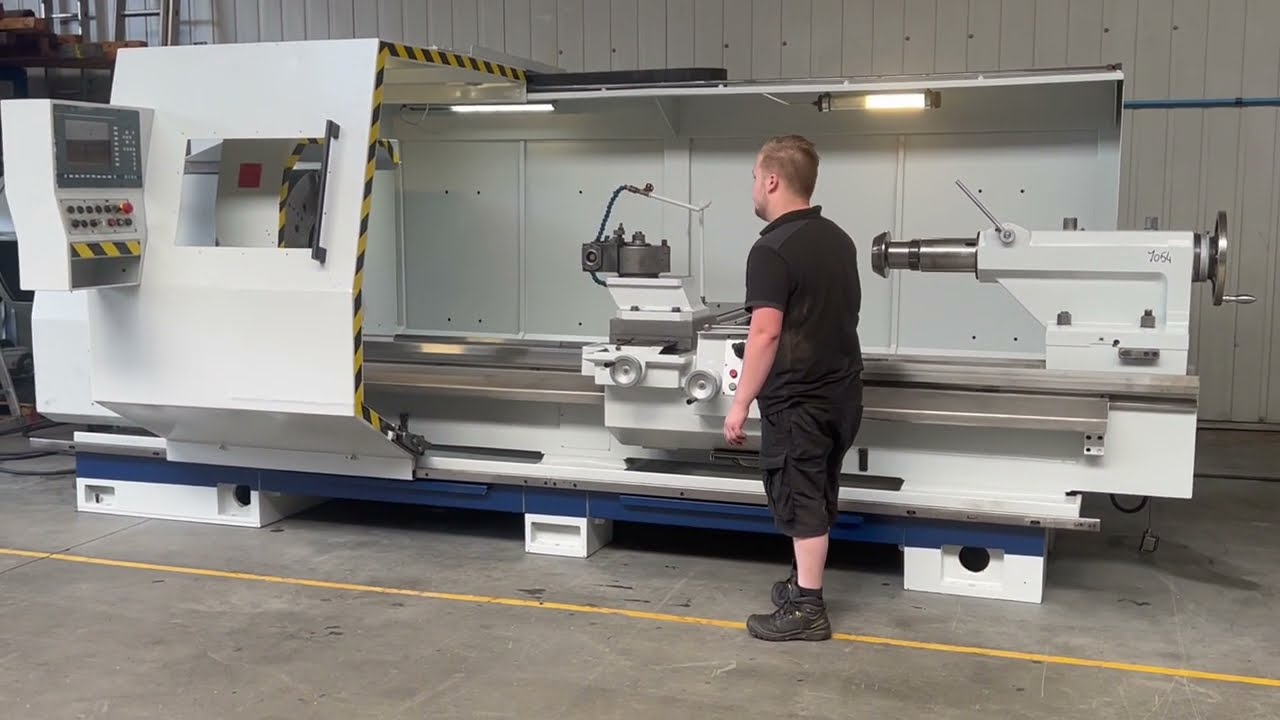

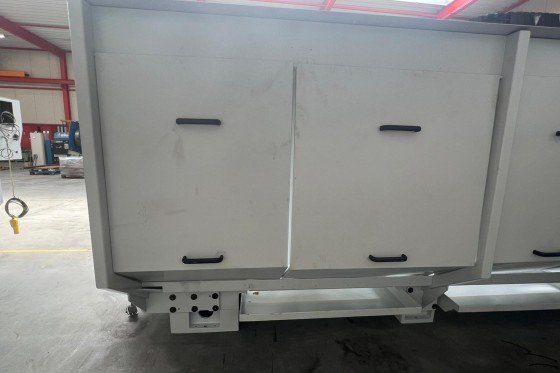

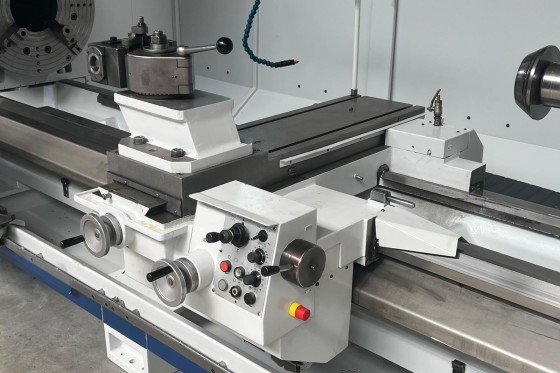

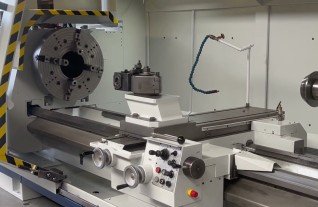

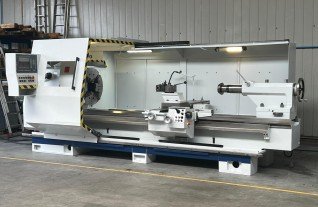

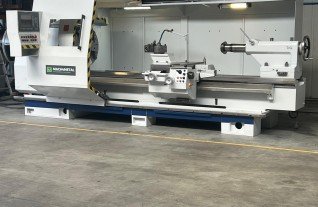

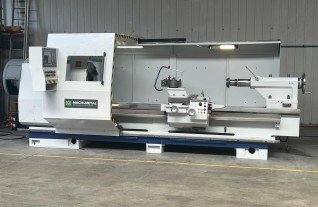

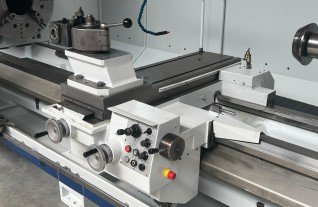

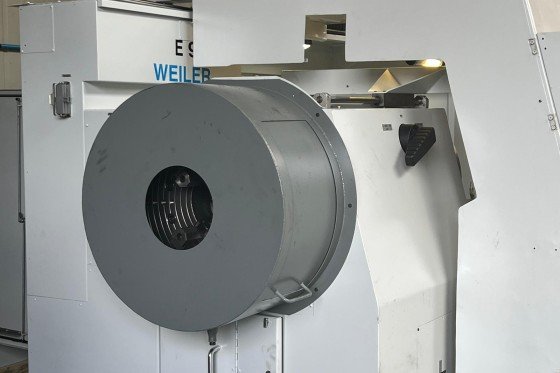

Teach-in lathe WEILER - E 90 / 3

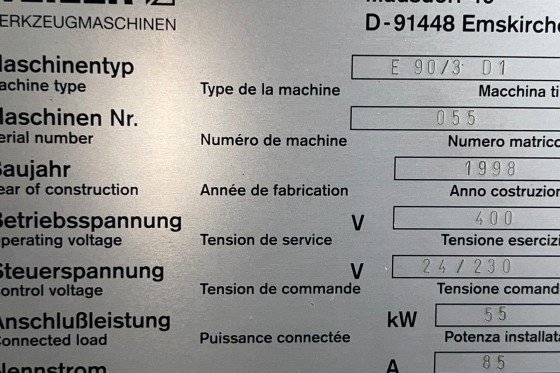

MACH-ID 7054| Make: | WEILER |
| Type: | E 90 / 3 |

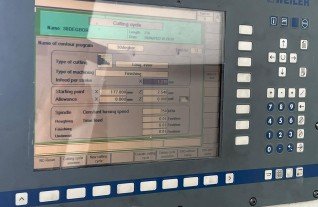

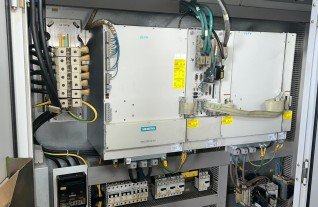

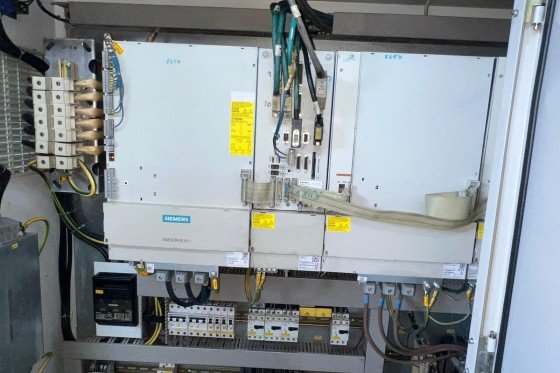

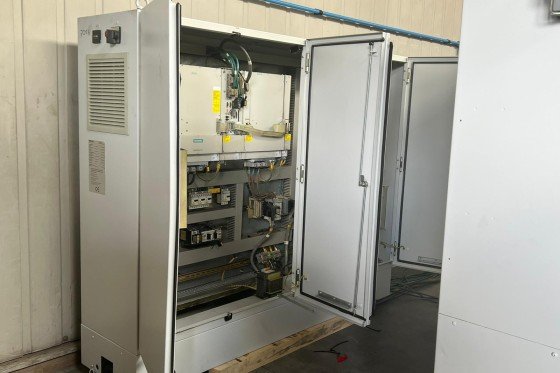

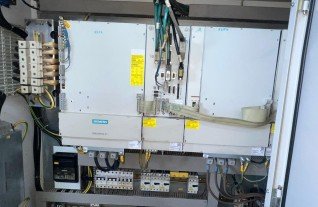

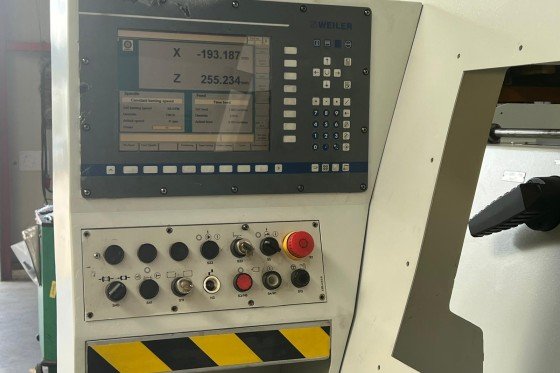

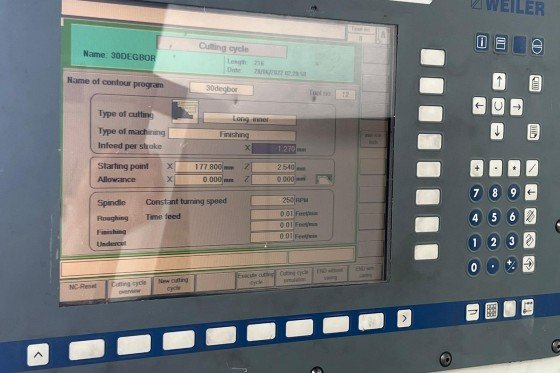

| Control: | Siemens 805 |
| Year: | 1998 |
Specifications
Swing over bed Ø
900 mm
35.433 inch
Swing over cross slide Ø
530 mm
20.866 inch
DBC Turning Length
3000 mm
118.11 inch

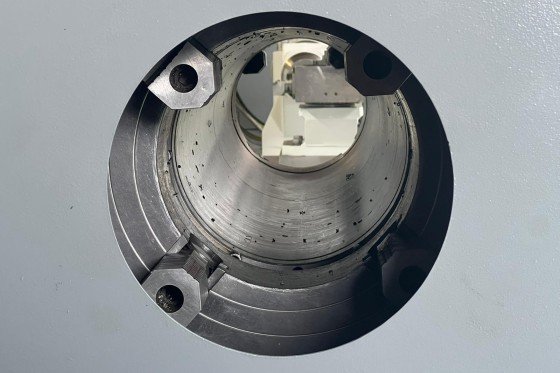

Spindle bore
256 mm
10.079 inch
Spindle power
45 kW
45 kW

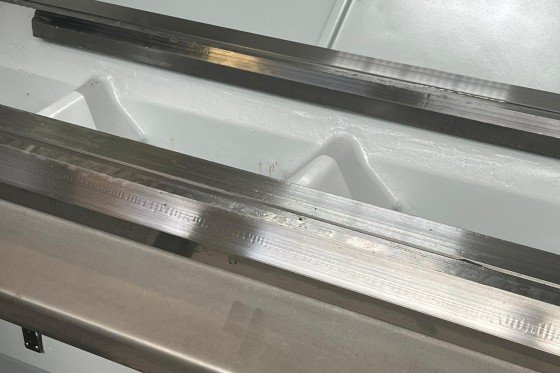

Bed width
600 mm
23.622 inch

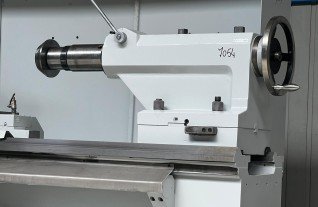

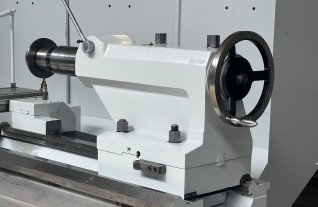

Tailstock spindle Ø
140 Ø
140 Ø
Stroke pinole
300 mm
11.811 inch
Spindle taper
6 Mk
6 Mk
Workpiece weight
4500
4500

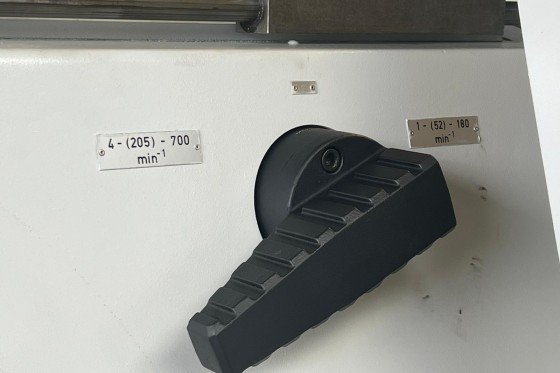

Speeds / ranges
700 Rpm
700 Rpm
Feed rate X-Axis
7000 mm/min.
7000 mm/min.
Feed rate Z-Axis
3500 mm/min.
3500 mm/min.
Dimensions (Estimate)
Length
7000 mm
275.59 inch
Width
2500 mm
98.425 inch
Height
1900 mm
74.803 inch
Weight
8000 kg
17645 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
