This machine is sold

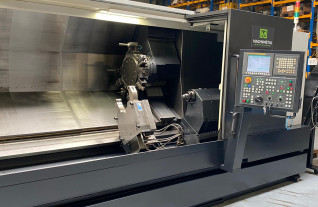

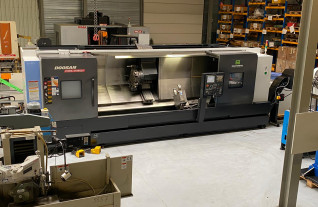

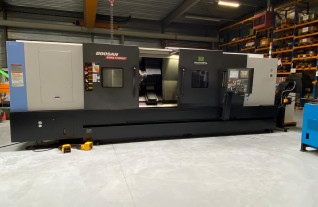

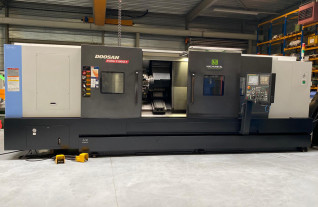

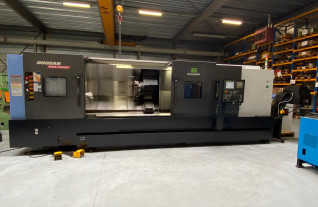

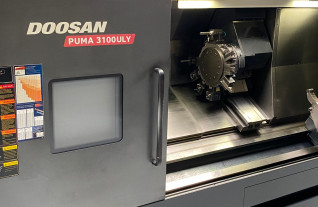

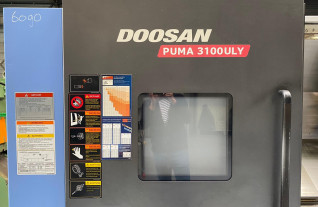

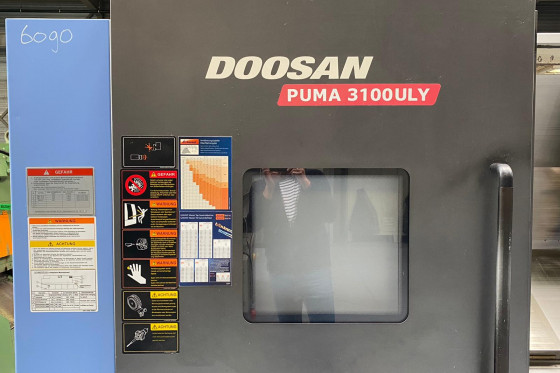

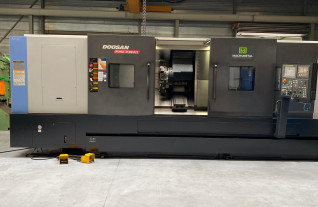

CNC Lathe with y-axis DOOSAN - 3100 ULY
PUMA 3100 ULY * C-Axis * Y-Axis * Built-in motor * 102 mm Spindle bore MACH-ID 6204| Make: | DOOSAN |
| Type: | 3100 ULY |
| Year: | 2012 |
Specifications
Max. turning Ø
850 mm
33.465 inch
X-Axis
293 mm
11.535 inch
Y-Axis
130 mm
5.118 inch
Z-Axis
3190 mm
125.59 inch
Spindle bore
102 mm
4.016 inch
Speedrange
3000 Rpm
3000 Rpm
Spindle power
25 kW
25 kW

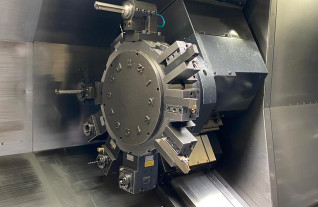

ATC / revolver
12
12
Speed live tools
5000 Rpm
5000 Rpm
Chip conveyor
Yes
Yes
Tool eye
Yes
Yes
Hours
5738 H
5738 H

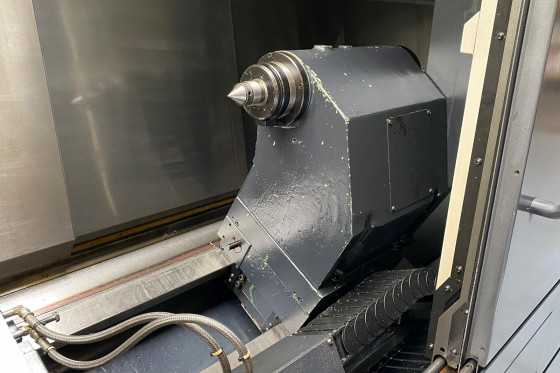

Pinole taper
5 Mk
5 Mk
Quill Ø
120 mm
4.724 inch
Dimensions (Estimate)
Length
6600 mm
259.842 inch
Width
2280 mm
89.764 inch
Height
2315 mm
91.142 inch
Weight
0 kg
0 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
