This machine is reserved

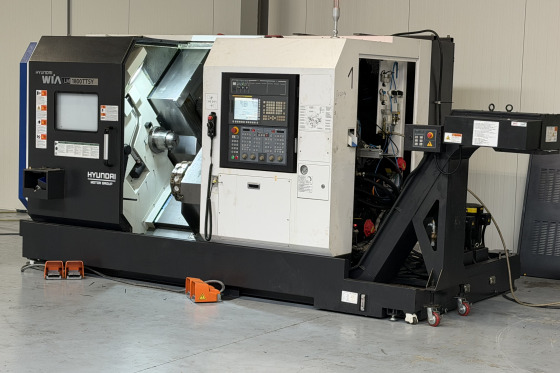

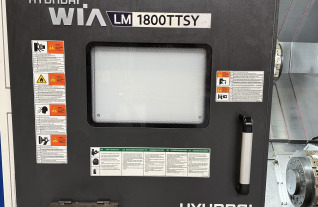

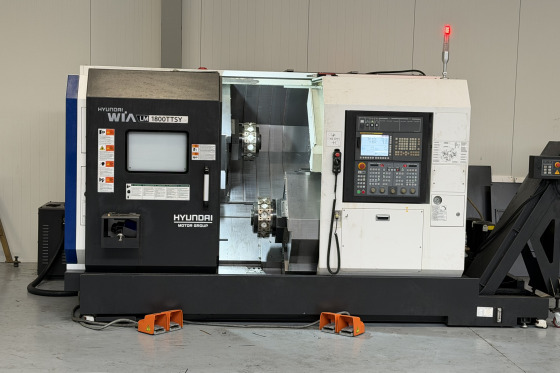

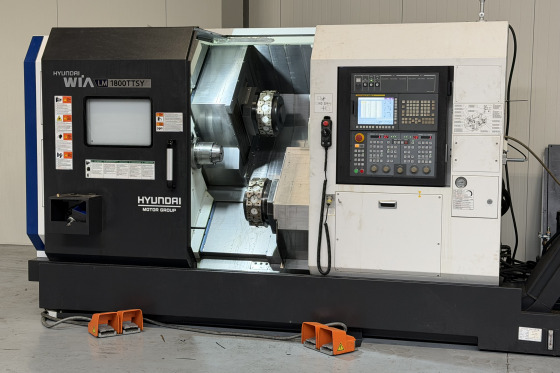

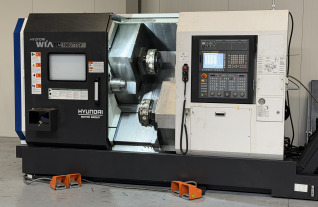

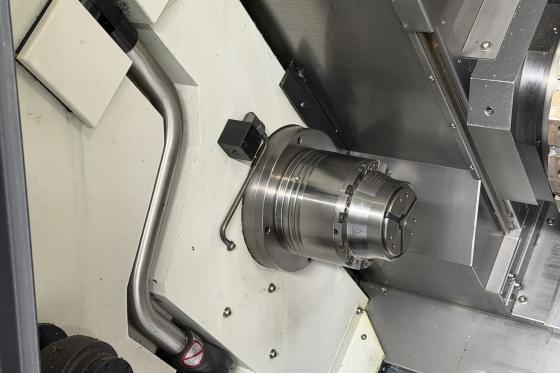

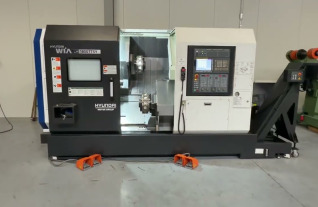

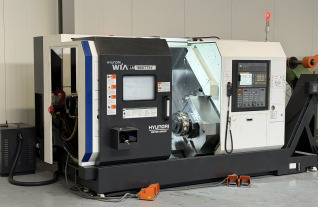

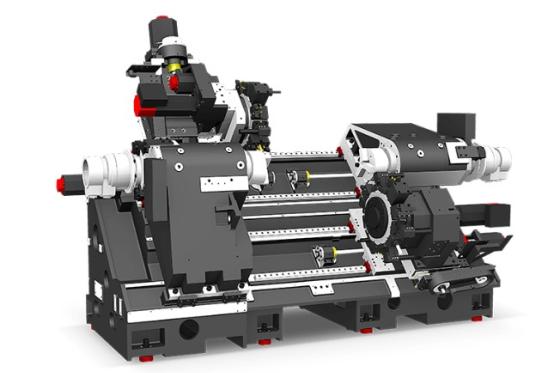

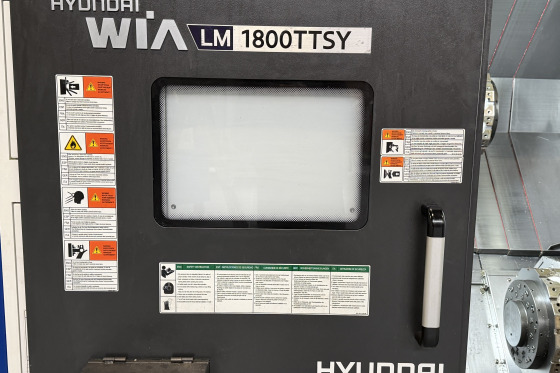

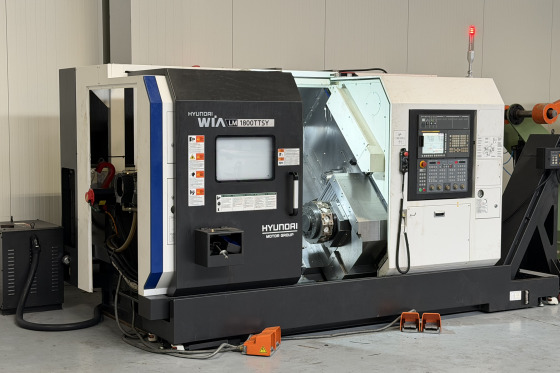

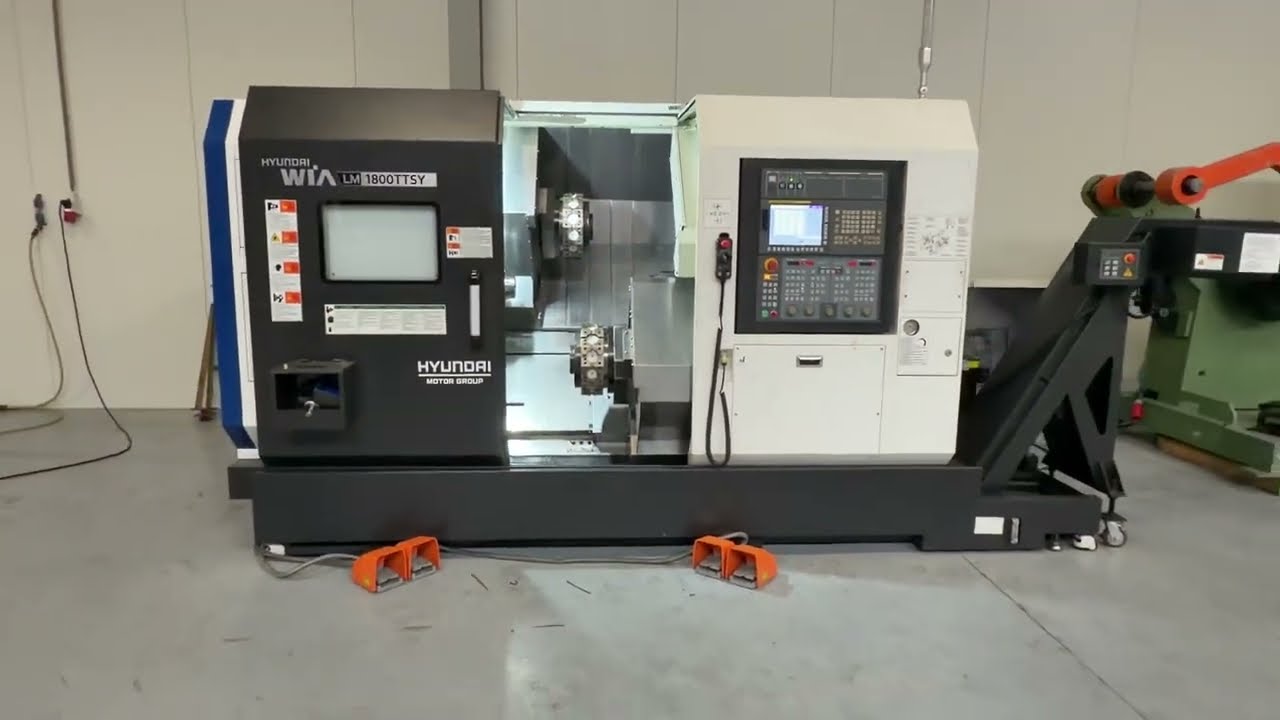

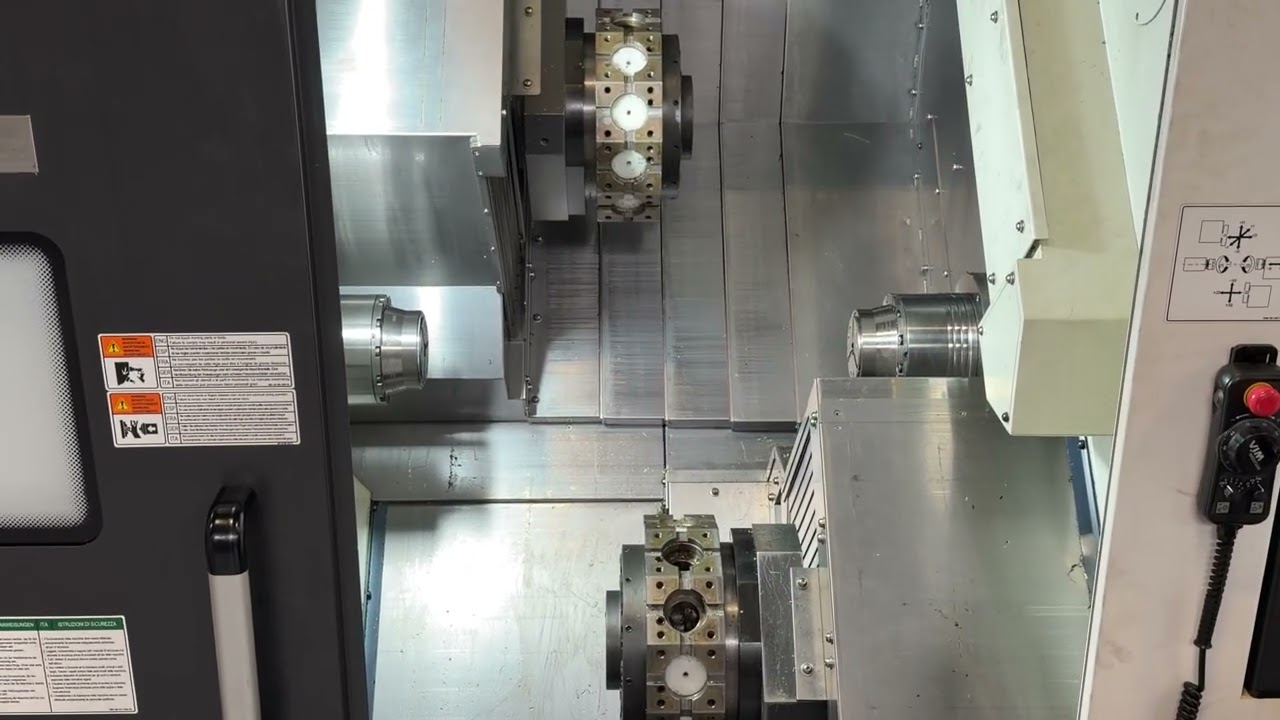

CNC Lathe with y-axis HYUNDAI - LM1800TTSY
MACH-ID 9327| Make: | HYUNDAI |
| Type: | LM1800TTSY |

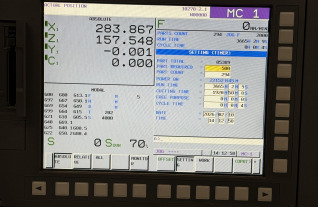

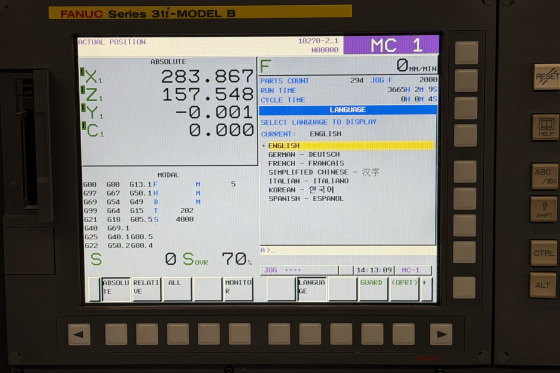

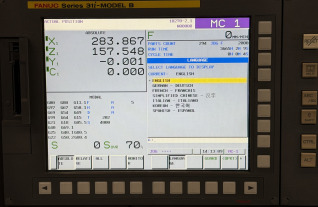

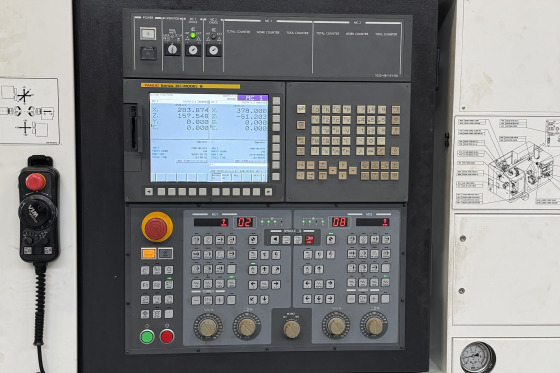

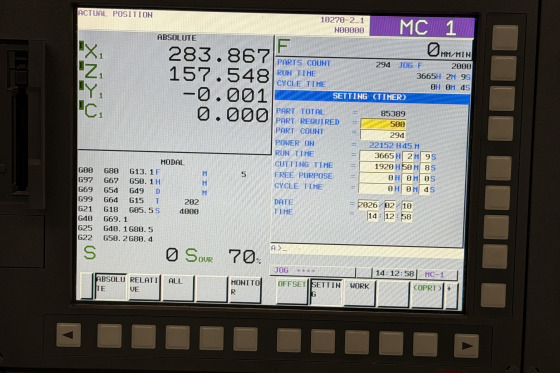

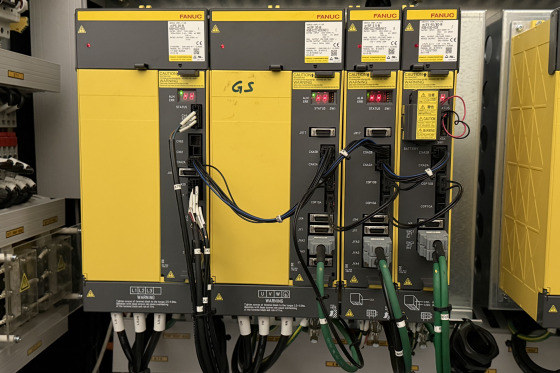

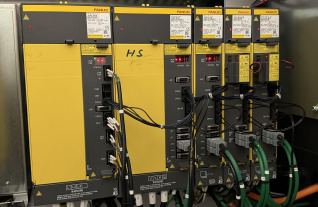

| Control: | FANUC |
| Year: | 2019 |

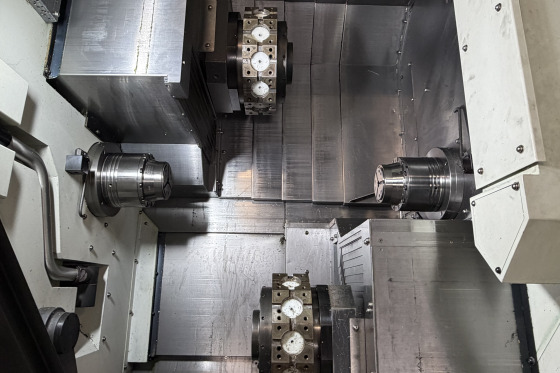

- Twin spindle construction

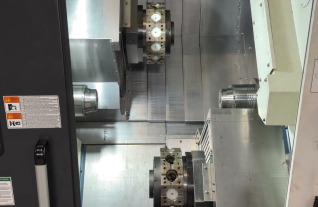

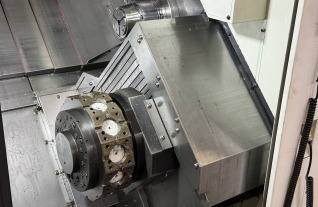

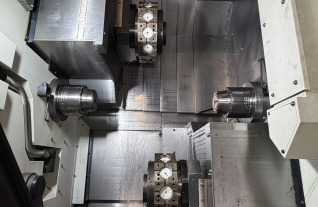

- Twin turret configuration with Y Axis
- (Y-Axis Cutting complex shaped work piece)
- Build in Spindle motor

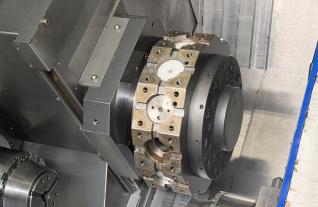

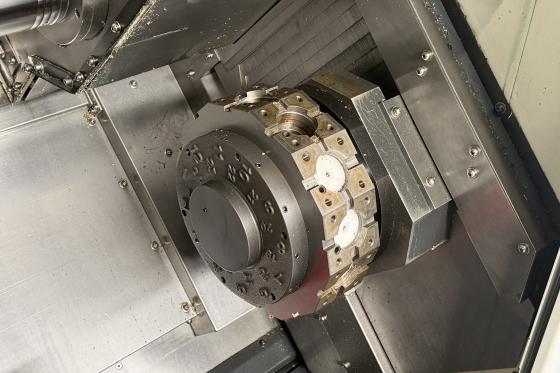

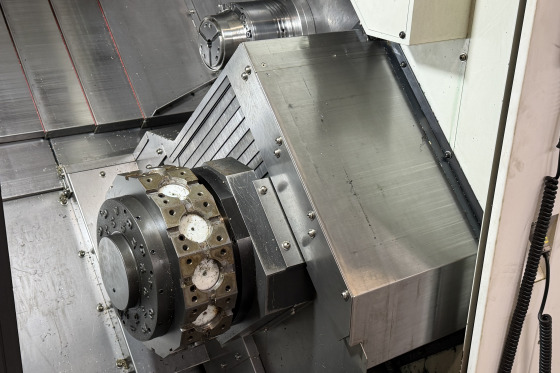

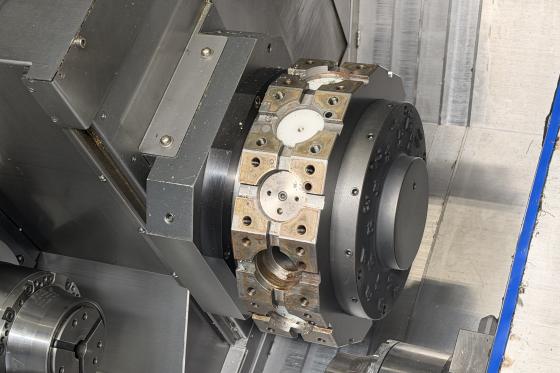

- High Rigidity BMT Turret
- Full C-Axis 360.000
- Slant bed construction 45 Gr
Specifications
Max. turning Ø
290 mm
11.417 inch
X-Axis
165/195 mm
165/195 inch
Y-Axis
100 mm
3.937 inch
Z-Axis
700/720 mm
700/720 inch
B Axis
668 °
668 °
Spindle bore
76 mm
2.992 inch
Speedrange
5000 Rpm
5000 Rpm
Spindle power
22 kW
22 kW

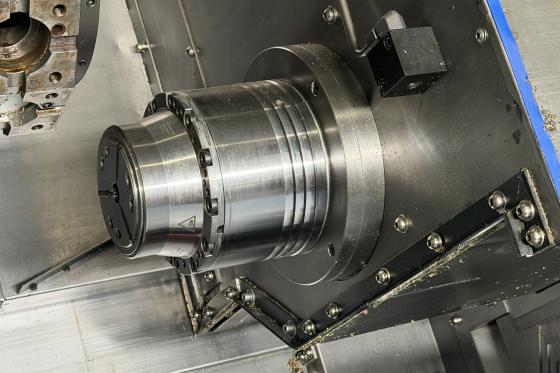

Subspindle speeds
5000 Rpm
5000 Rpm
Subspindle bore
76 mm
2.992 inch
Subspindle power
22 kW
22 kW
ATC / revolver
12
12
Speed live tools
5000 Rpm
5000 Rpm
Positions lower revolver
12
12
Speed live tools
5000 Rpm
5000 Rpm
Power live tools
6 kW
6 kW
Chip conveyor
Yes
Yes
Tool eye
Yes
Yes

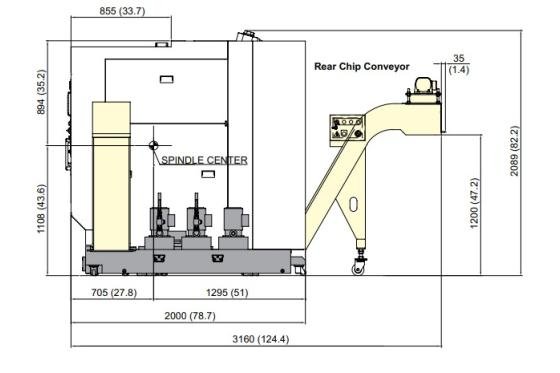

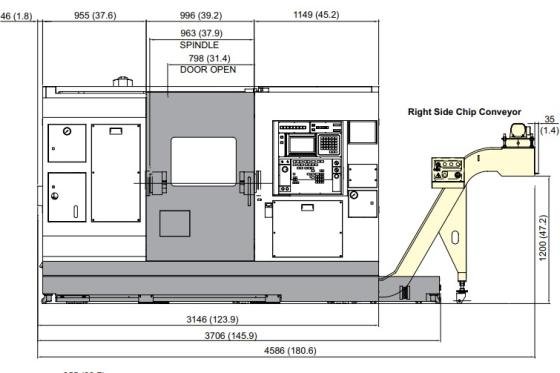

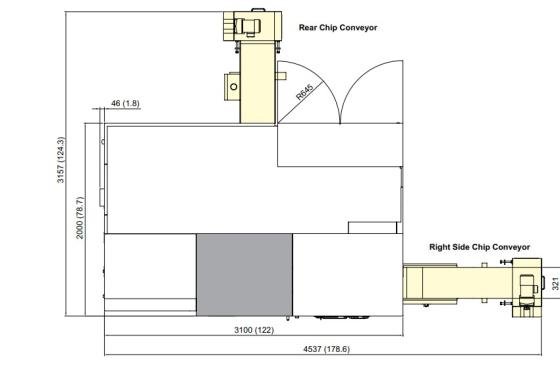

Dimensions (Estimate)
Length
3800 mm
149.606 inch
Width
2000 mm
78.74 inch
Height
2100 mm
82.677 inch
Weight
8500 kg
18747.8 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
