This machine is sold

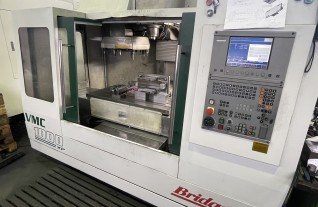

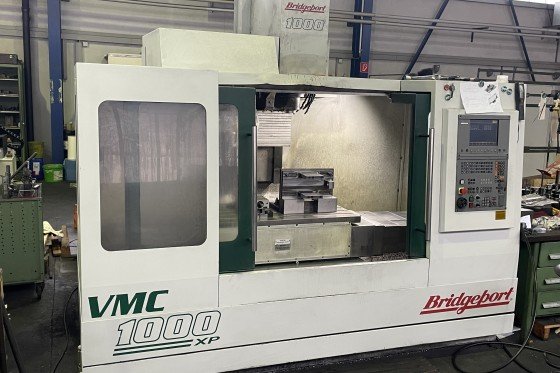

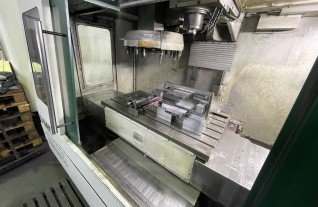

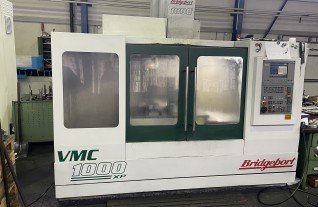

3-axis CNC machine (VMC) BRIDGEPORT - VMC 1000 XP

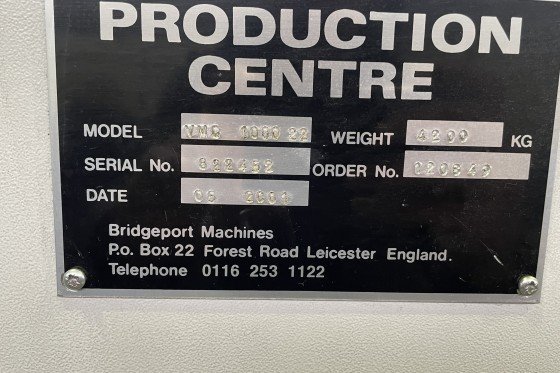

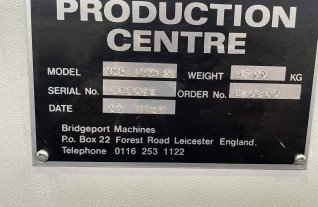

MACH-ID 8522| Make: | BRIDGEPORT |
| Type: | VMC 1000 XP |

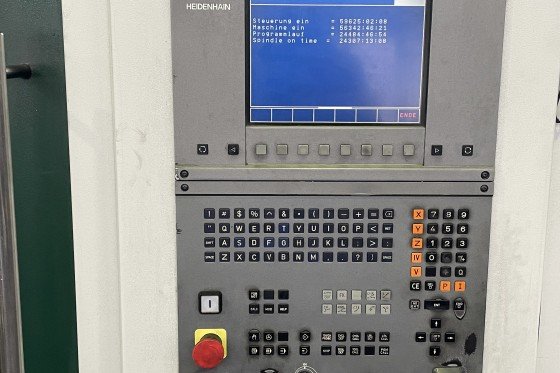

| Control: | HeidenHain TNC 430 |
| Year: | 2001 |
Specifications
X - Travel
1020 mm
40.157 inch
Y - Travel
510 mm
20.079 inch
Z - Travel
510 mm
20.079 inch

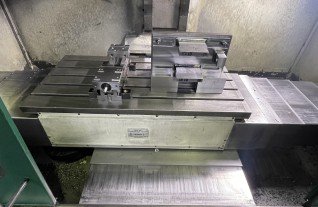

Table Length
1115 mm
43.898 inch
Table Width
580 mm
22.835 inch
Table load
800
800
Feed rate X-Axis
12000 mm/min.
12000 mm/min.
Feed rate Y-Axis
12000 mm/min.
12000 mm/min.
Feed rate Z-Axis
12000 mm/min.
12000 mm/min.

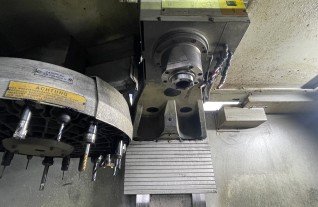

Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
13 kW
13 kW
Speeds / ranges
8000 Rpm
8000 Rpm

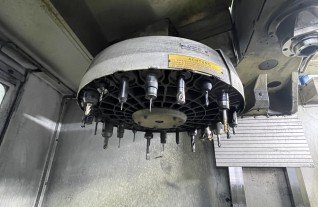

ATC / revolver
30
30
Number of controlled axis
3
3
Chip conveyor
Yes
Yes
Coolantsystem
Yes
Yes
Dimensions (Estimate)
Length
3000 mm
118.11 inch
Width
2200 mm
86.614 inch
Height
2700 mm
106.299 inch
Weight
4700 kg
10366.4 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
