This machine is sold

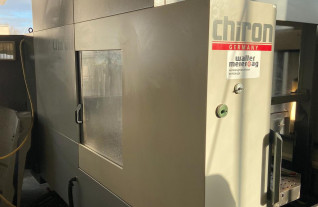

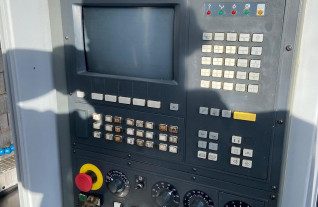

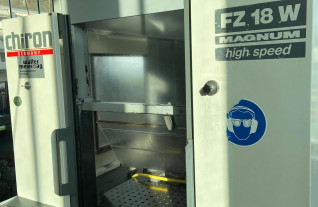

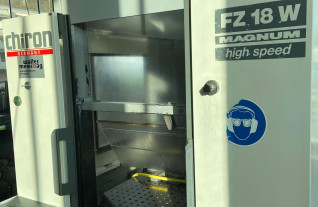

3-axis CNC machine (VMC) CHIRON - FZ 18 W MAGNUM high speed

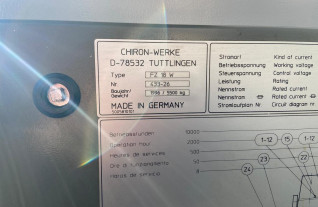

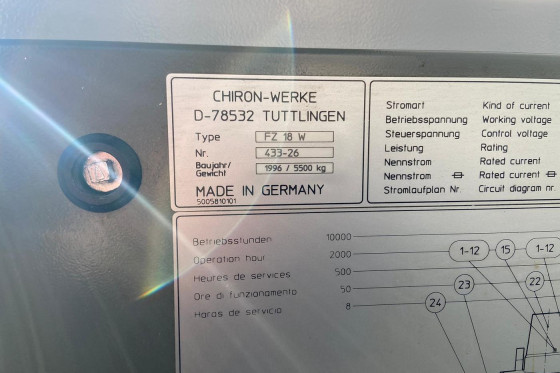

MACH-ID 5417| Make: | CHIRON |
| Type: | FZ 18 W MAGNUM high speed |
| Year: | 1997 |
Specifications
X - Travel
630 mm
24.803 inch
Y - Travel
400 mm
15.748 inch
Z - Travel
425 mm
16.732 inch
Table Length
850 mm
33.465 inch
Table Width
470 mm
18.504 inch
Table load
250
250
Feed rate X-Axis
30.000 mm/min.
30.000 mm/min.
Feed rate Y-Axis
30.000 mm/min.
30.000 mm/min.
Feed rate Z-Axis
30.000 mm/min.
30.000 mm/min.
Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
18 kW
18 kW
Speeds / ranges
10500 Rpm
10500 Rpm

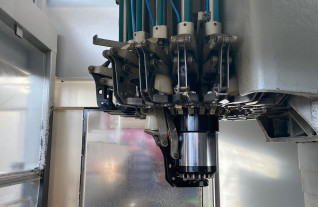

ATC / revolver
20
20
Number of controlled axis
3
3
Chip conveyor
Yes
Yes
Coolantsystem
Yes
Yes
Dimensions (Estimate)
Length
3285 mm
129.33 inch
Width
3340 mm
131.496 inch
Height
2965 mm
116.732 inch
Weight
5500 kg
12130.9 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
