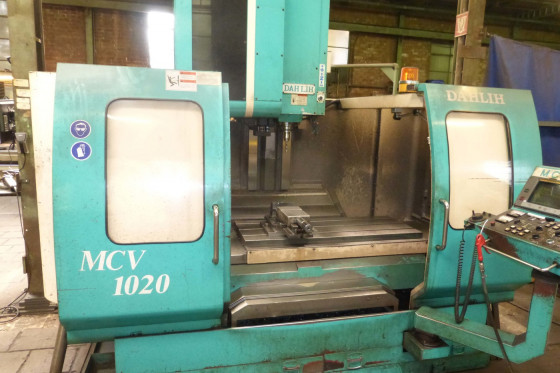

3-axis CNC machine (VMC) DAHLIH DCM - MCV 1020

MACH-ID 4086

Make:	DAHLIH DCM
Type:	MCV 1020
Year:	90

Whatsapp question

Specifications

Metric US Standard

X - Travel 1020 mm 40.157 inch

Y - Travel 550 mm 21.654 inch

Z - Travel 560 mm 22.047 inch

Table load 1000 1000

Spindle Taper Sk 40 ISO/Bt/Mk Sk 40 ISO/Bt/Mk

Power on spindle 15 kW 15 kW

Speeds / ranges 6000 Rpm 6000 Rpm

ATC / revolver 28 28

Number of controlled axis 3 3

Dimensions (Estimate)

Length 2900 mm 114.173 inch

Width 2900 mm 114.173 inch

Height 2750 mm 108.268 inch

Weight 6500 kg 14336.5 lbs

Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
