This machine is sold

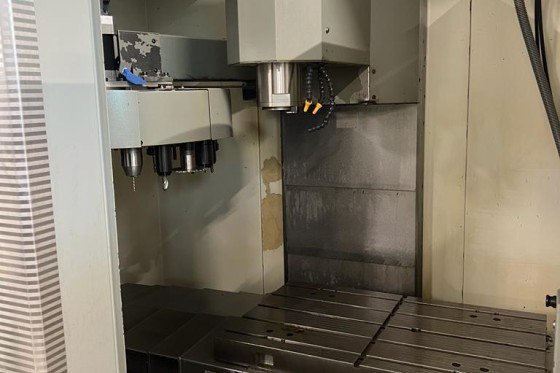

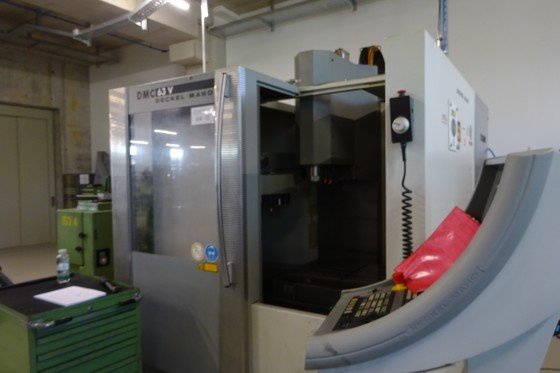

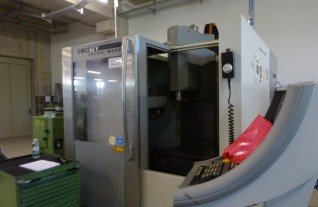

3-axis CNC machine (VMC) DECKEL MAHO - DMC 63V
MACH-ID 7754| Make: | DECKEL MAHO |
| Type: | DMC 63V |
| Control: | Siemens |
| Year: | 2003 |
- incl. 4e Axis Lehmann
- Around 9500 Spindle hours
Specifications
X - Travel
630 mm
24.803 inch
Y - Travel
500 mm
19.685 inch
Z - Travel
500 mm
19.685 inch
Table Length
800 mm
31.496 inch
Table Width
500 mm
19.685 inch
Table load
500
500
Feed rate X-Axis
20000 mm/min.
20000 mm/min.
Feed rate Y-Axis
20000 mm/min.
20000 mm/min.
Feed rate Z-Axis
20000 mm/min.
20000 mm/min.
Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
11 kW
11 kW
Speeds / ranges
8000 Rpm
8000 Rpm
ATC / revolver
24
24
Number of controlled axis
3+1
3+1
Dimensions (Estimate)
Length
2800 mm
110.236 inch
Width
2300 mm
90.551 inch
Height
2800 mm
110.236 inch
Weight
4500 kg
9925.3 lbs
