This machine is sold

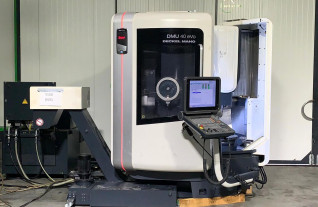

3-axis CNC machine (VMC) DMG MORI - DMU 40 eVo
MACH-ID 5150| Make: | DMG MORI |
| Type: | DMU 40 eVo |
| Year: | 2015 |
Specifications
X - Travel
400 mm
15.748 inch
Y - Travel
400 mm
15.748 inch
Z - Travel
375 mm
14.764 inch
Table Length
480 mm
18.898 inch
Table Width
480 mm
18.898 inch
Table load
250
250
Feed rate X-Axis
50.000 mm/min.
50.000 mm/min.
Feed rate Y-Axis
50.000 mm/min.
50.000 mm/min.
Feed rate Z-Axis
50.000 mm/min.
50.000 mm/min.
Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
25 kW
25 kW
Speeds / ranges
18.000 Rpm
18.000 Rpm
ATC / revolver
30
30
Number of controlled axis
5
5
Dimensions (Estimate)
Length
3420 mm
134.645 inch
Width
5000 mm
196.85 inch
Height
2640 mm
103.937 inch
Weight
6900 kg
15218.8 lbs
