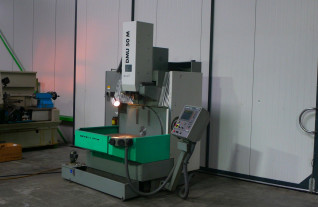

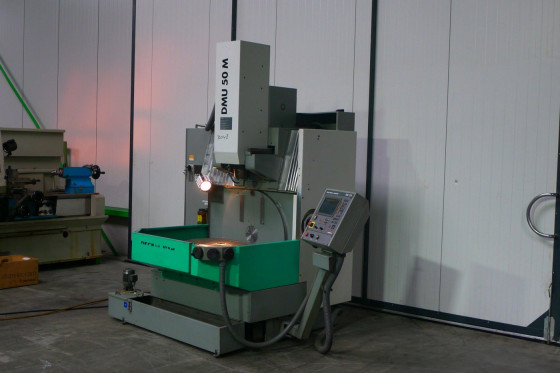

3-axis CNC machine (VMC) DMU 50 M

MACH-ID 3429

Type:	DMU 50 M
Year:	1998

Whatsapp question

Specifications

Metric US Standard

X - Travel 500 mm 19.685 inch

Y - Travel 400 mm 15.748 inch

Z - Travel 400 mm 15.748 inch

Table load 200 200

Spindle Taper Sk 40 ISO/Bt/Mk Sk 40 ISO/Bt/Mk

Power on spindle 9 kW 9 kW

Speeds / ranges 9 - 4500 Rpm 9 - 4500 Rpm

Number of controlled axis 3 + 2 ( Optical B & C Axis ) 3 + 2 ( Optical B & C Axis )

Dimensions (Estimate)

Length 2600 mm 102.362 inch

Width 2700 mm 106.299 inch

Height 2200 mm 86.614 inch

Weight 3800 kg 8381.4 lbs

Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
