This machine is sold

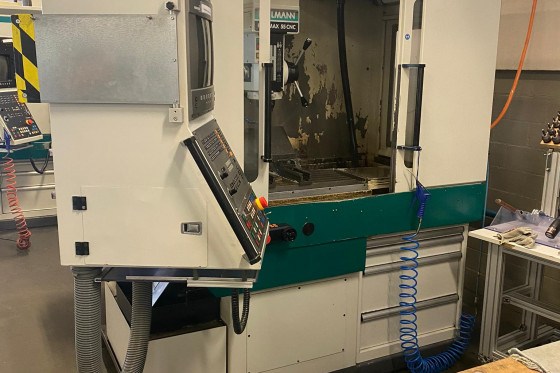

3-axis CNC machine (VMC) FEHLMANN - PICOMAX P 55
CNC milling machine 500 x 250 x 160 mm MACH-ID 6210| Make: | FEHLMANN |
| Type: | PICOMAX P 55 |
| Year: | 1999 |
Specifications
X-Axis
500 mm
19.685 inch
Y-Axis
250 mm
9.843 inch
Z-Axis
160 mm
6.299 inch
Table Length
885 mm
34.842 inch
Table Width
320 mm
12.598 inch
Table load
250
250
Spindle speeds
9000 Rpm
9000 Rpm
Feed rate X-Axis
11.000 mm/min.
11.000 mm/min.
Feed rate Y-Axis
11.000 mm/min.
11.000 mm/min.
Feed rate Z-Axis
11.000 mm/min.
11.000 mm/min.
Stroke pinole
160 mm
6.299 inch
Dimensions (Estimate)
Length
1920 mm
75.59 inch
Width
1850 mm
72.835 inch
Height
2400 mm
94.488 inch
Weight
2400 kg
5293.5 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
