This machine is sold

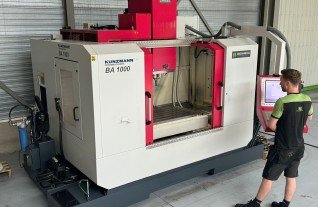

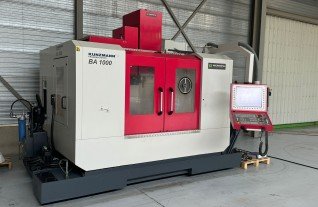

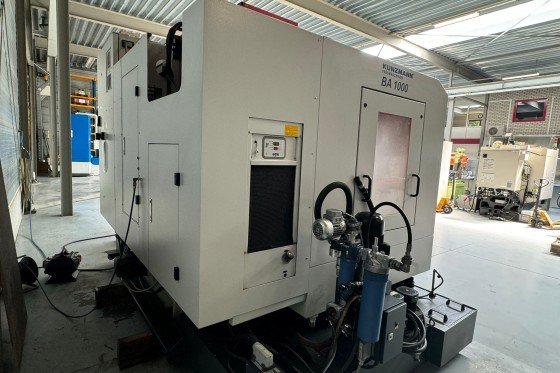

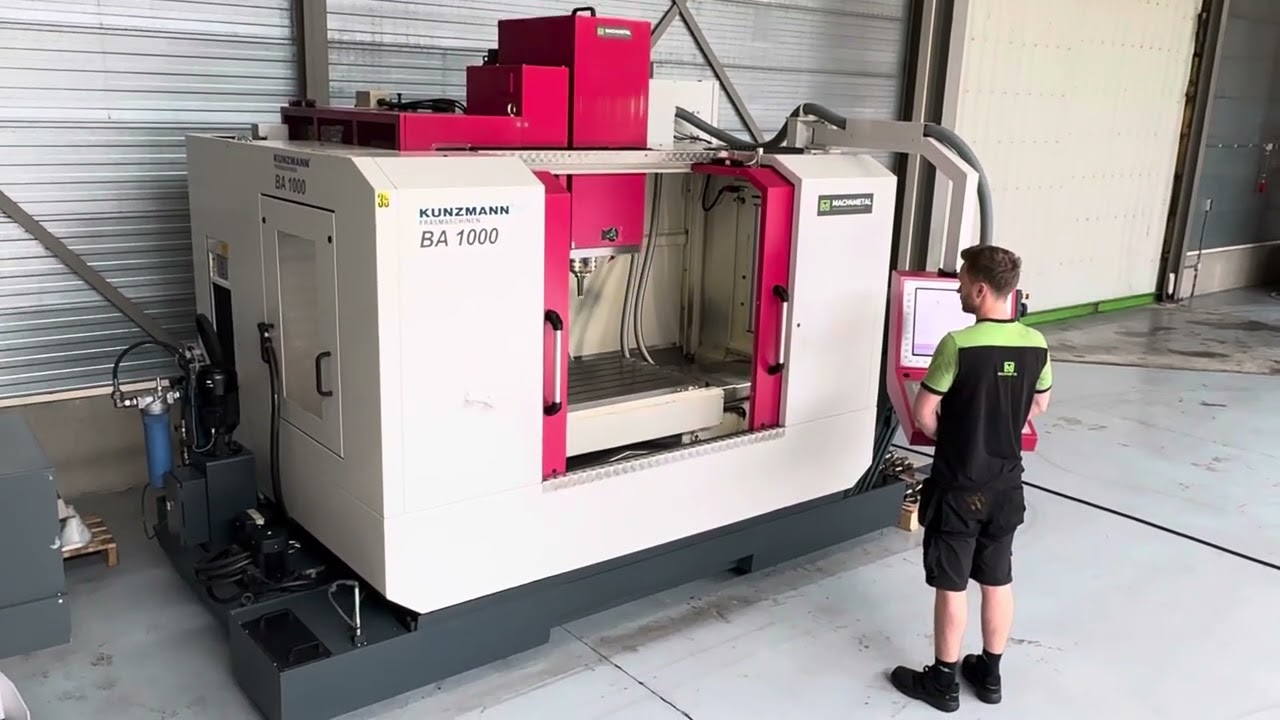

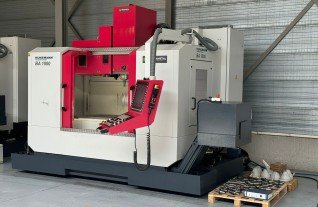

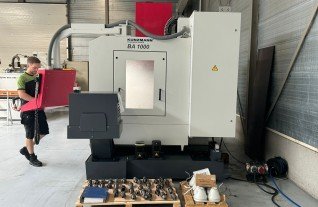

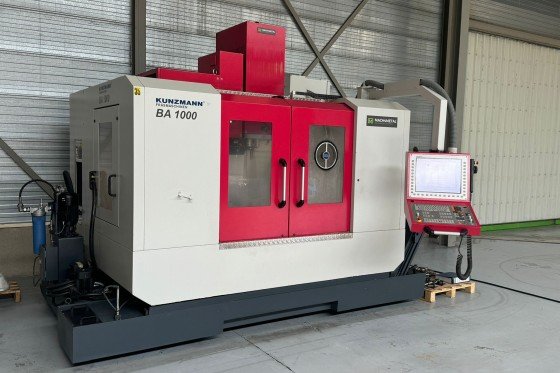

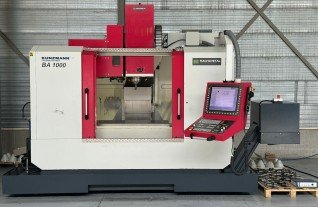

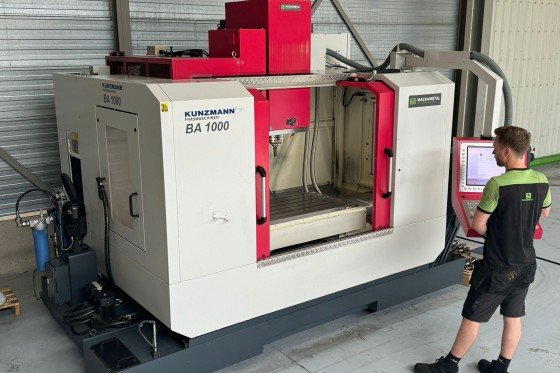

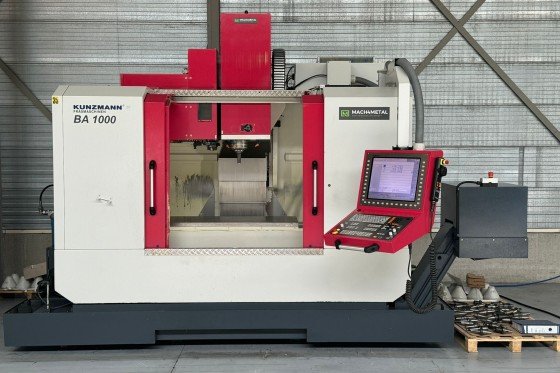

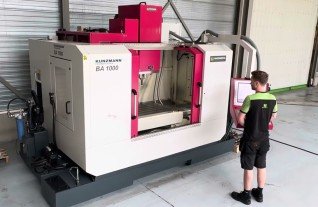

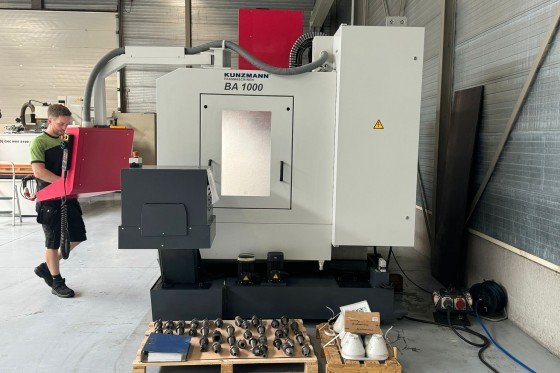

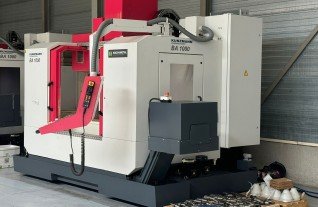

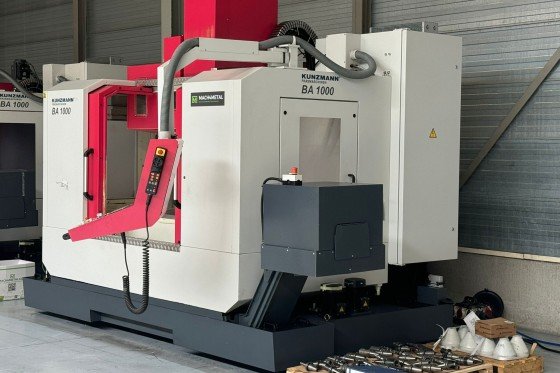

3-axis CNC machine (VMC) KUNZMANN - BA 1000

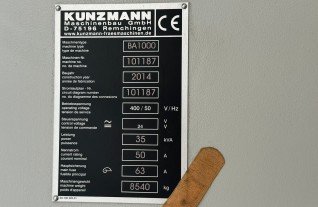

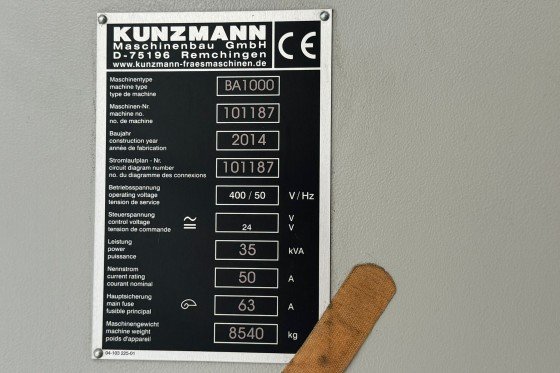

MACH-ID 8764| Make: | KUNZMANN |
| Type: | BA 1000 |

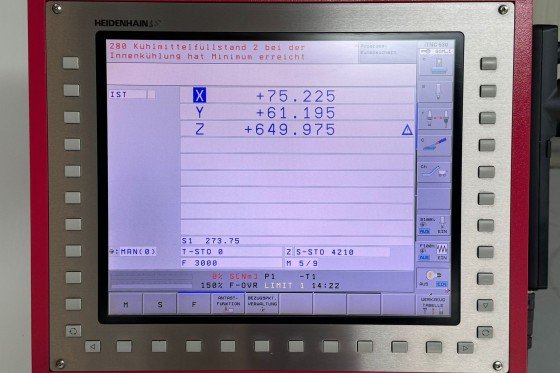

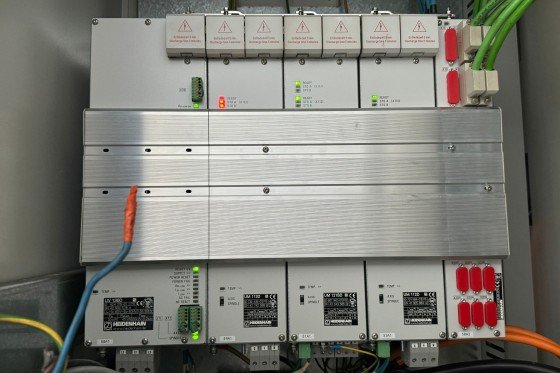

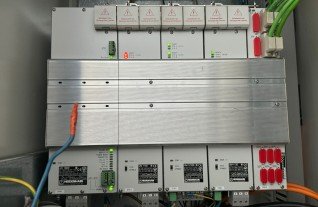

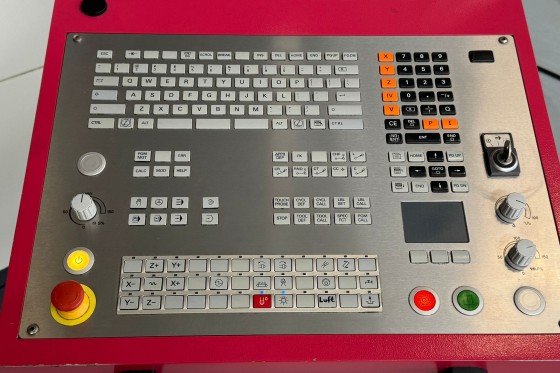

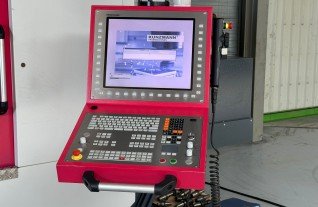

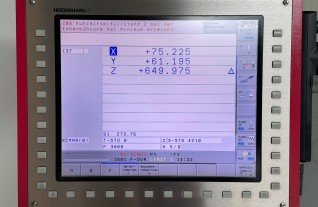

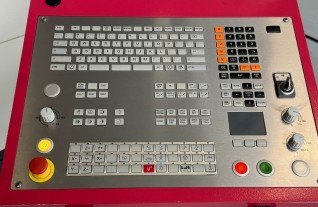

| Control: | HeidenHain TNC530 |
| Year: | 2014 |
- Linear guideways in X + Y Axis
- Flatt guideways in Z Axis
- Grinded ballscrews 40 + 50 mm
- New price EUR 140.000
Specifications
X - Travel
1020 mm
40.157 inch
Y - Travel
620 mm
24.409 inch
Z - Travel
610 mm
24.016 inch

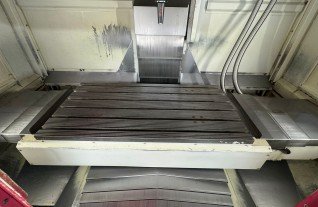

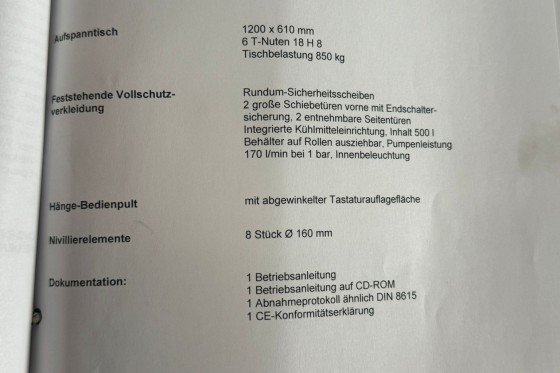

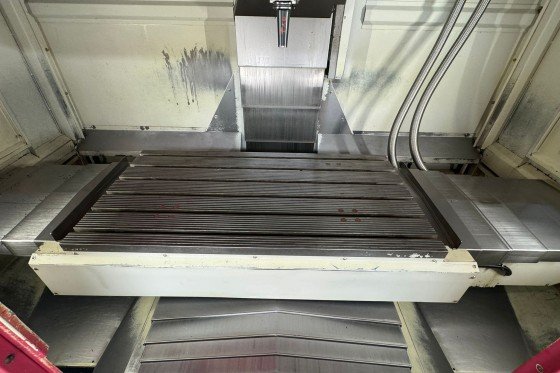

Table Length
1200 mm
47.244 inch
Table Width
610 mm
24.016 inch
Table load
850
850
Feed rate X-Axis
30000 mm/min.
30000 mm/min.
Feed rate Y-Axis
30000 mm/min.
30000 mm/min.
Feed rate Z-Axis
24000 mm/min.
24000 mm/min.

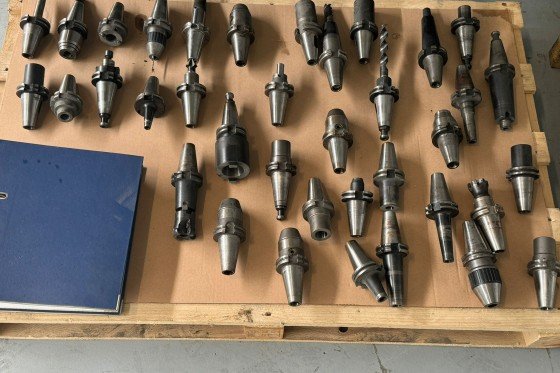

Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
14 kW
14 kW
Speeds / ranges
8000 Rpm
8000 Rpm
ATC / revolver
32
32
Coolant through spindle / Bar
20
20
Number of controlled axis
3
3
Chip conveyor
Yes
Yes
Coolantsystem
Yes
Yes

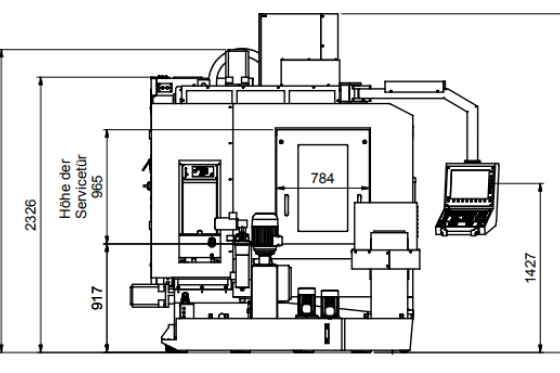

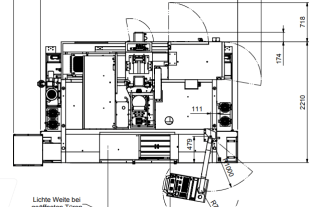

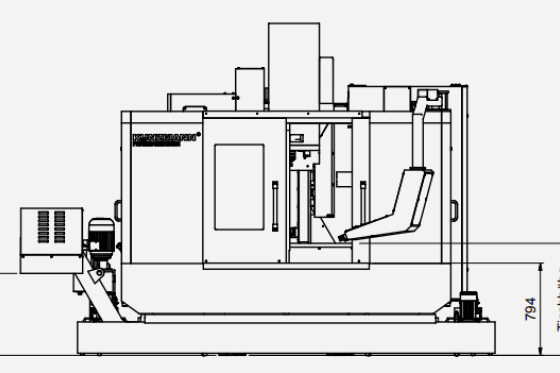

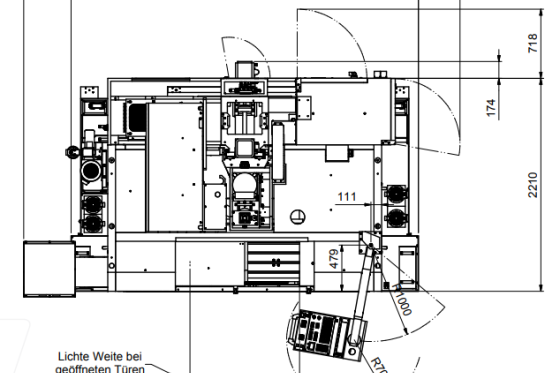

Dimensions (Estimate)
Length
3600 mm
141.732 inch
Width
2210 mm
87.008 inch
Height
2680 mm
105.512 inch
Weight
8450 kg
18637.5 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
