This machine is sold

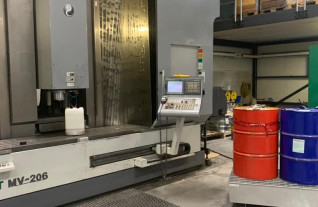

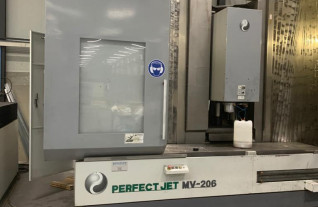

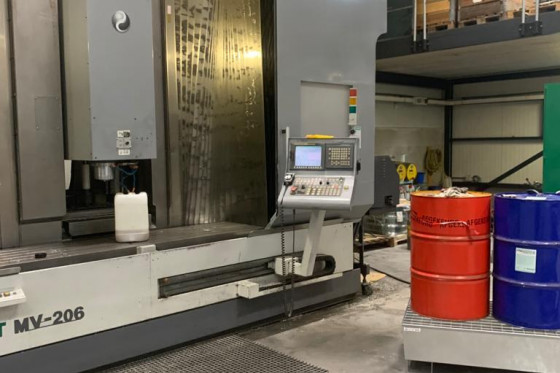

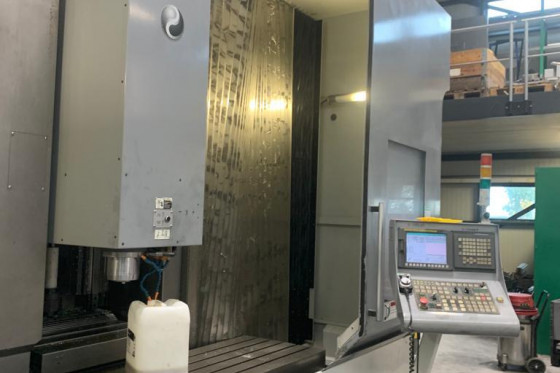

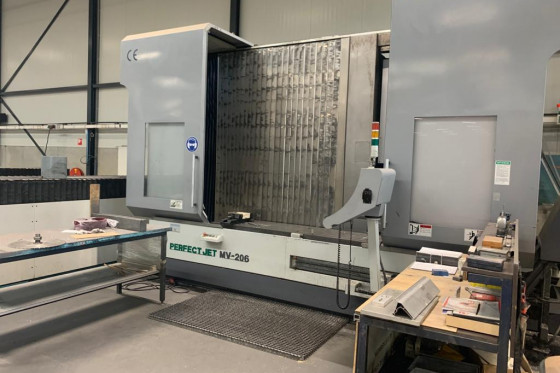

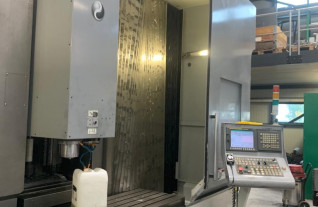

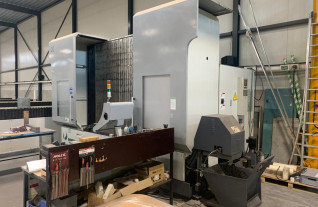

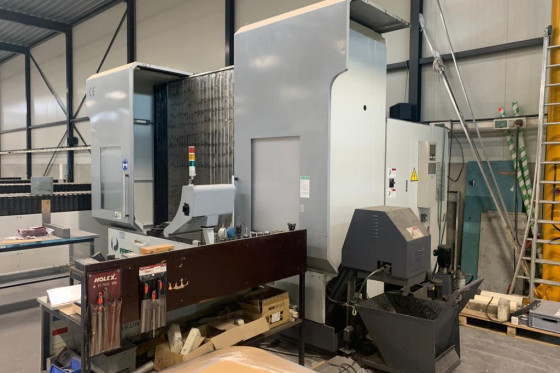

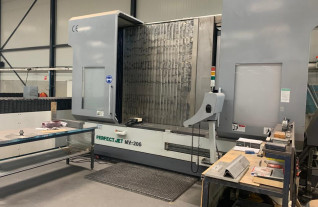

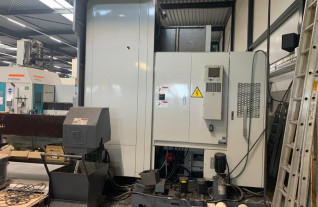

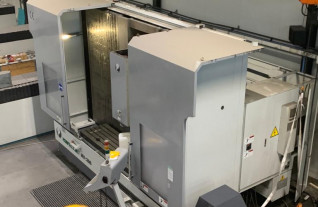

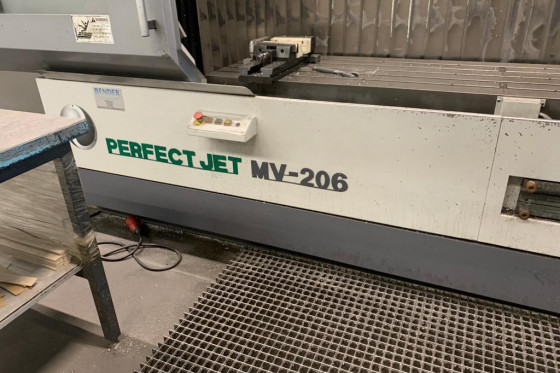

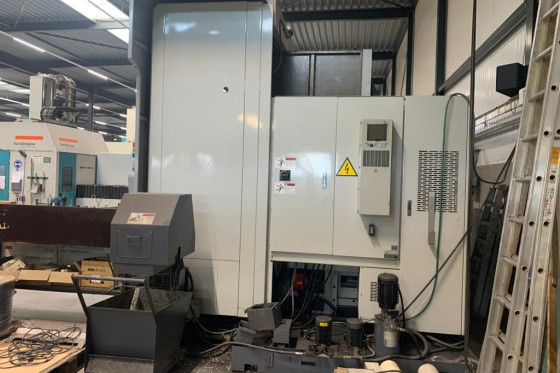

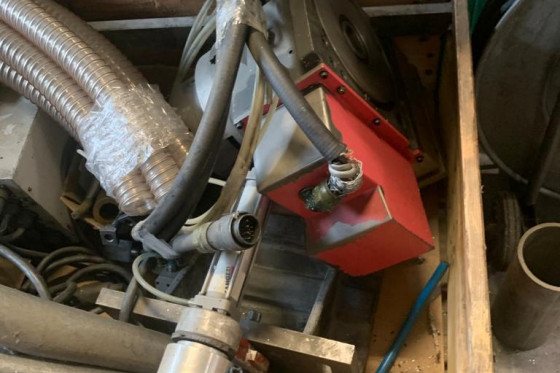

3-axis CNC machine (VMC) Leadwell - MV-206

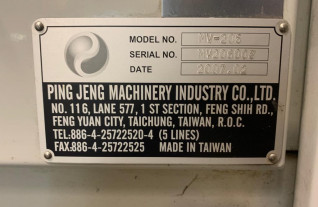

Travelling Column Vertical Machine 2000 x 600 x 550 mm MACH-ID 6275| Make: | Leadwell |
| Type: | MV-206 |
| Year: | 2007 |
Specifications
X - Travel
2000 mm
78.74 inch
Y - Travel
610 mm
24.016 inch
Z - Travel
560 mm
22.047 inch
Table Length
2500 mm
98.425 inch
Table Width
610 mm
24.016 inch
Table load
1000
1000
Feed rate X-Axis
30.000 mm/min.
30.000 mm/min.
Feed rate Y-Axis
30.000 mm/min.
30.000 mm/min.
Feed rate Z-Axis
15.000 mm/min.
15.000 mm/min.
Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
11 kW
11 kW
Speeds / ranges
10.000 Rpm
10.000 Rpm
ATC / revolver
24
24
Coolant through spindle / Bar
20
20
Number of controlled axis
3
3

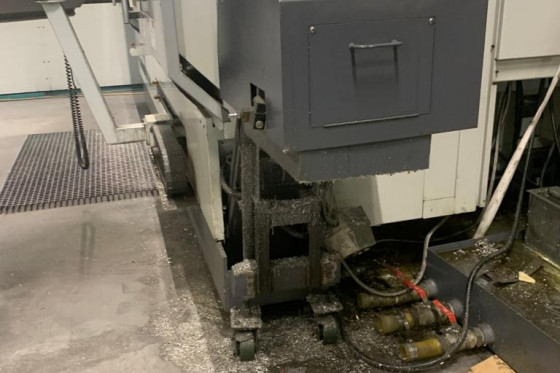

Chip conveyor
Yes
Yes
Coolantsystem
Yes
Yes
Dimensions (Estimate)
Length
6200 mm
244.094 inch
Width
3400 mm
133.858 inch
Height
3100 mm
122.047 inch
Weight
14000 kg
30878.7 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
