This machine is sold

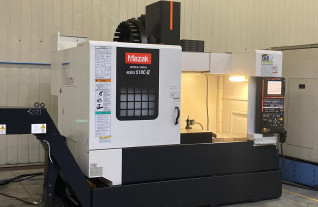

3-axis CNC machine (VMC) MAZAK - Nexus 510C-II
MACH-ID 5071| Make: | MAZAK |
| Type: | Nexus 510C-II |
| Year: | 2007 |
Specifications
X - Travel
1050 mm
41.339 inch
Y - Travel
510 mm
20.079 inch
Z - Travel
510 mm
20.079 inch
Table Length
1300 mm
51.181 inch
Table Width
550 mm
21.654 inch
Table load
1200
1200
Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
18.5 kW
18.5 kW
ATC / revolver
30
30
Number of controlled axis
3
3
Dimensions (Estimate)
Length
2800 mm
110.236 inch
Width
2800 mm
110.236 inch
Height
2900 mm
114.173 inch
Weight
6900 kg
15218.8 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
