This machine is reserved

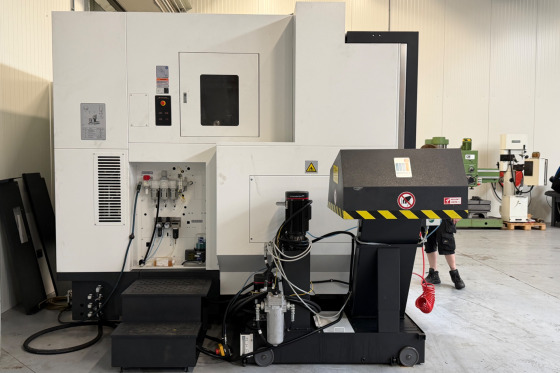

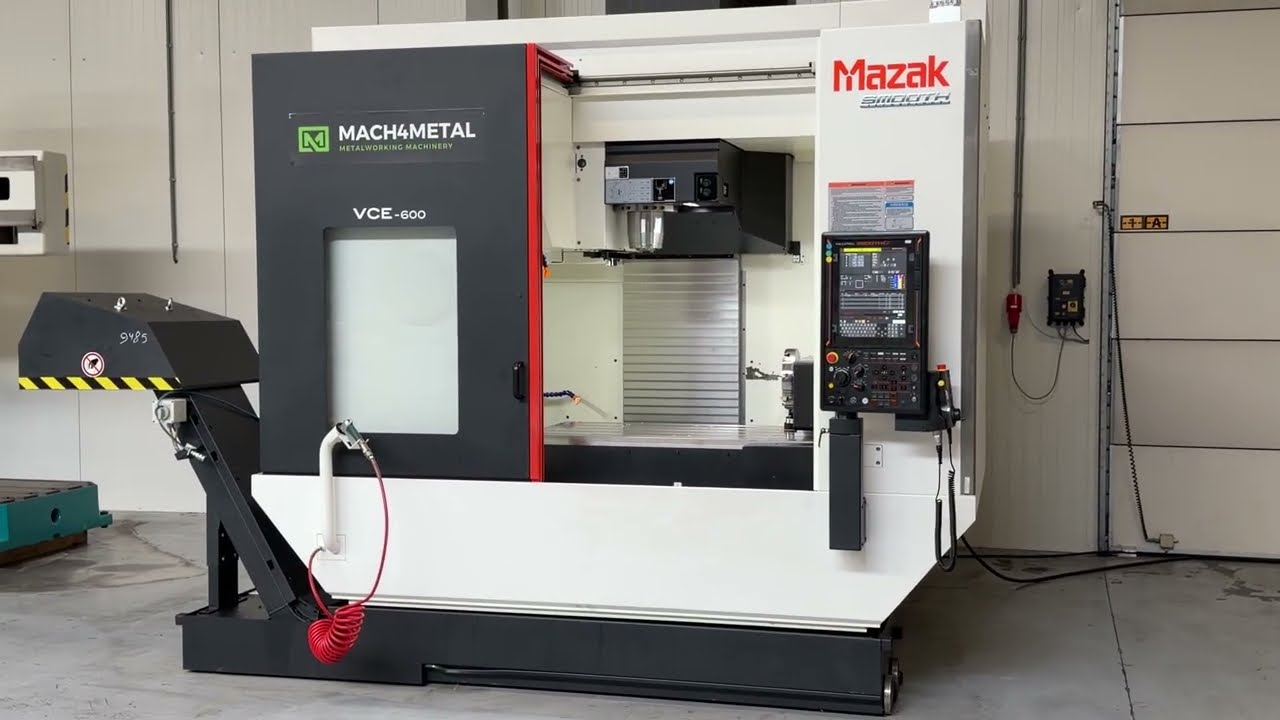

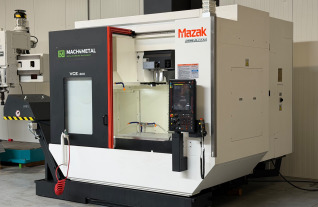

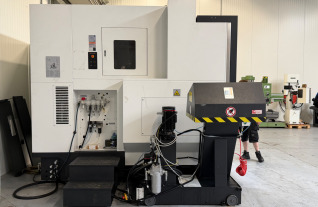

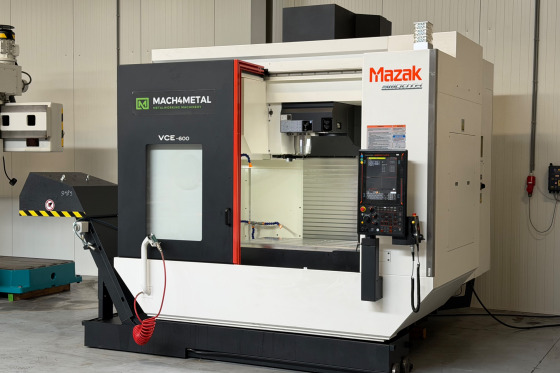

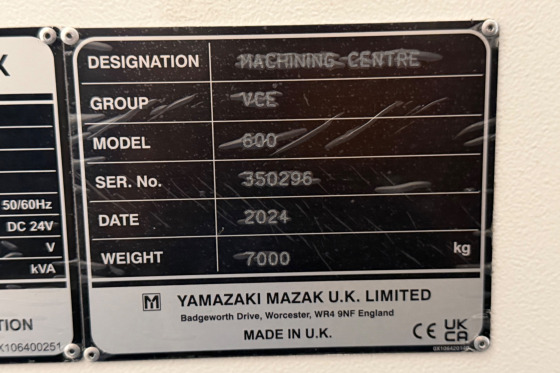

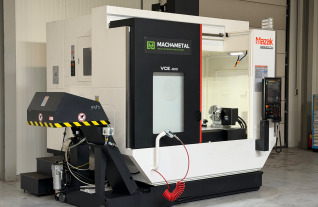

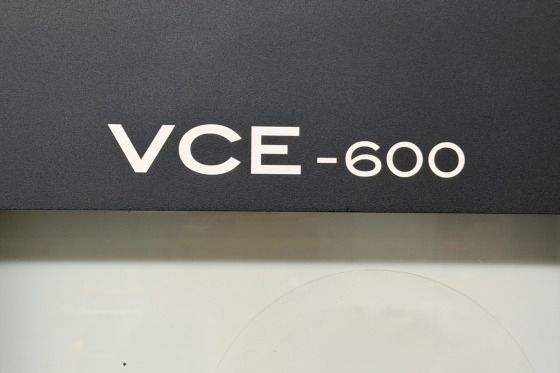

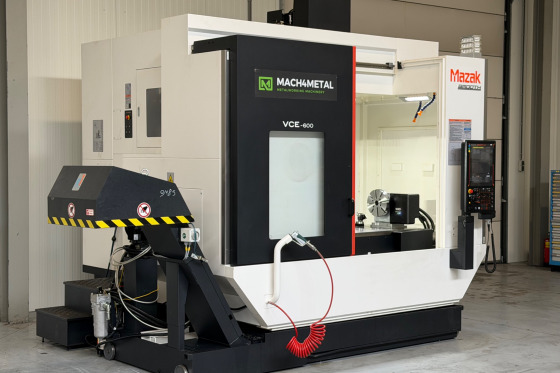

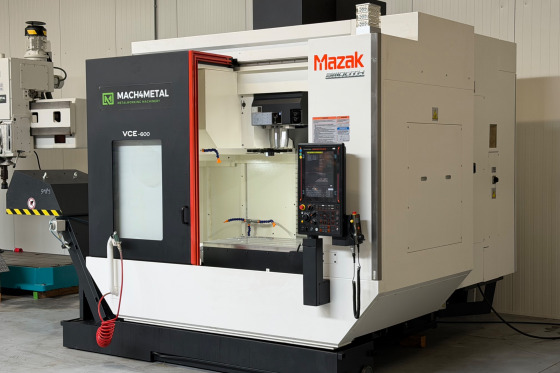

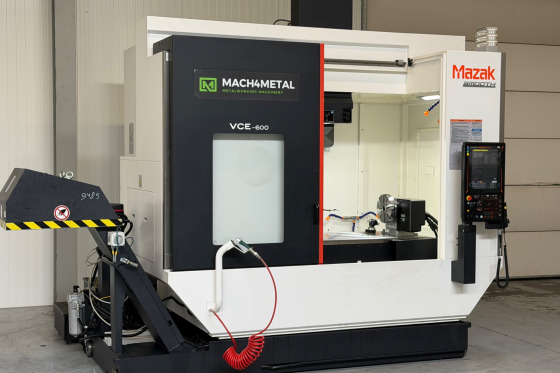

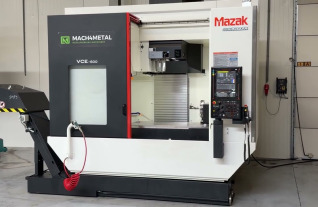

3-axis CNC machine (VMC) MAZAK - VCE-600

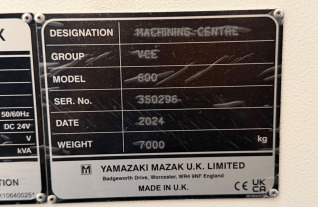

MACH-ID 9485| Make: | MAZAK |
| Type: | VCE-600 |

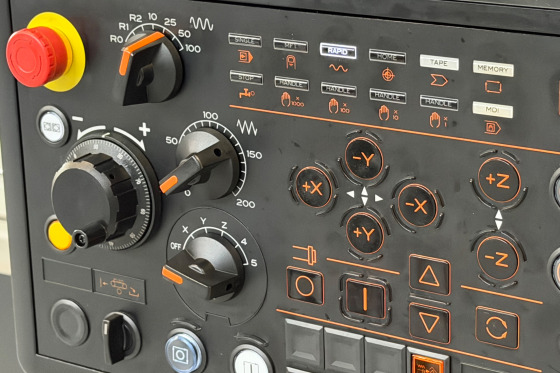

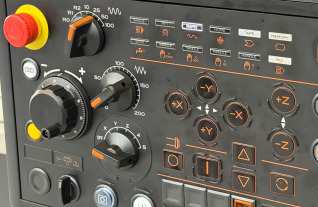

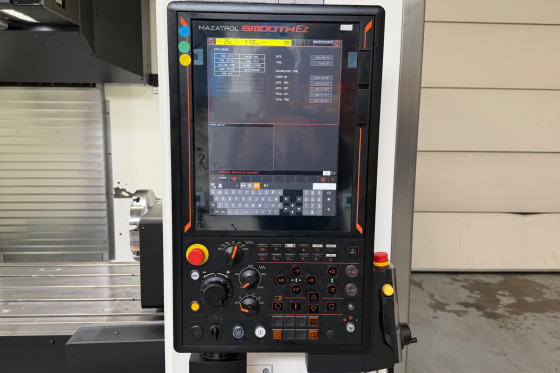

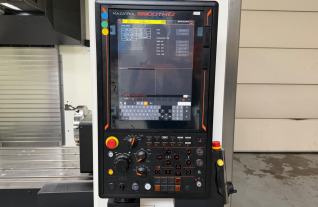

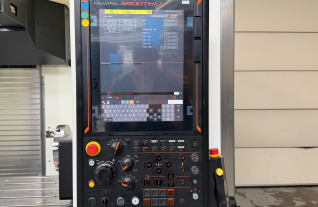

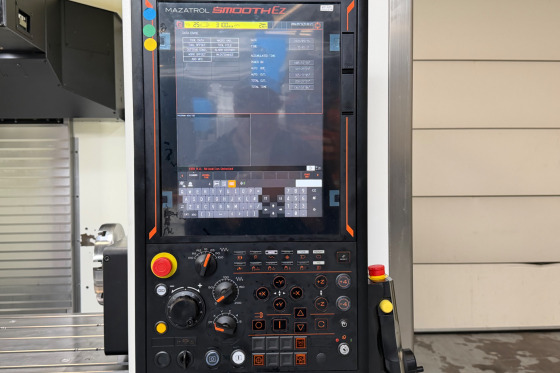

| Control: | Mazatrol SMOOTHEZ |
| Year: | 2024 |

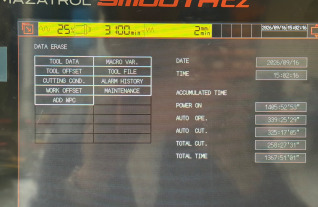

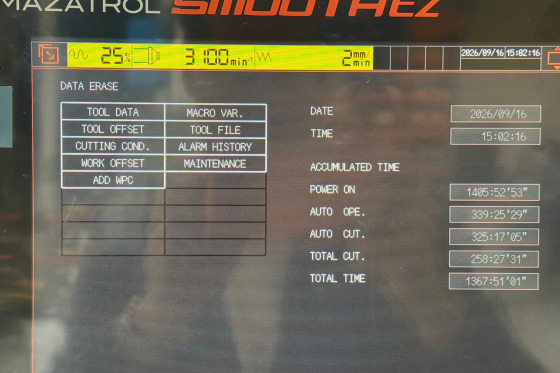

- Only 250 Spindle Hours

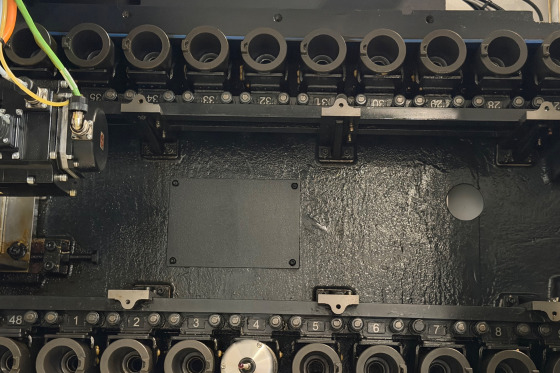

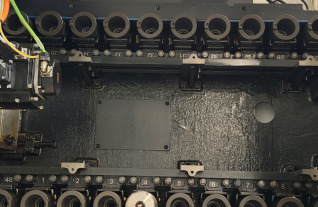

- ATC 48 Position

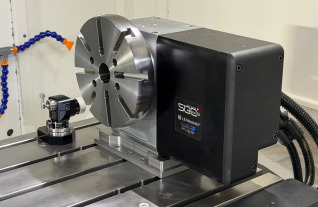

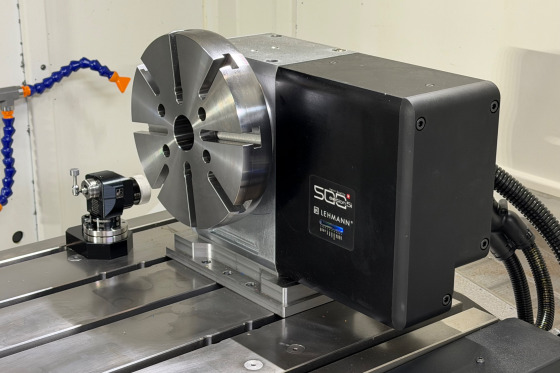

- Lehmann EA-520 R-Mi4 4e axis integrated

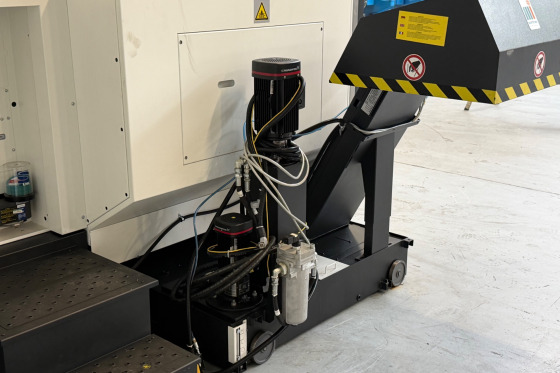

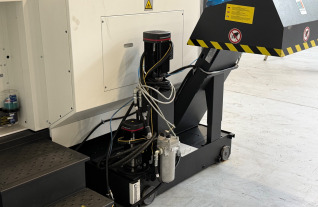

- Grundfos IKZ 20 Bar

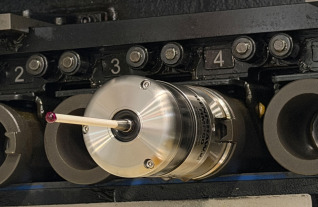

- Renishaw 3D Tool probe

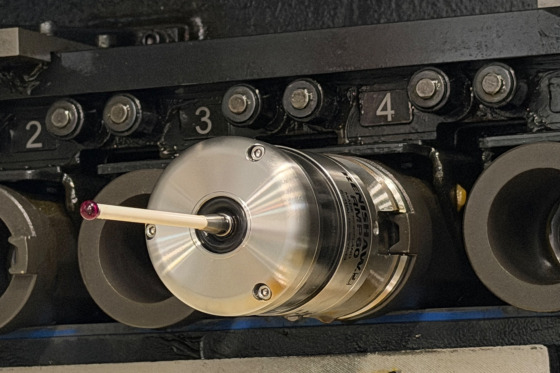

- Renishaw Length probe
- Optional tooling packge
- Optional SCHUNK KONTEC KSG Machine vice (4 units)
- New EUR 200.000
Specifications
X - Travel
1050 mm
41.339 inch
Y - Travel
600 mm
23.622 inch
Z - Travel
600 mm
23.622 inch
Table Length
1300 mm
51.181 inch
Table Width
600 mm
23.622 inch
Table load
1200
1200
Feed rate X-Axis
36000 mm/min.
36000 mm/min.
Feed rate Y-Axis
36000 mm/min.
36000 mm/min.
Feed rate Z-Axis
36000 mm/min.
36000 mm/min.

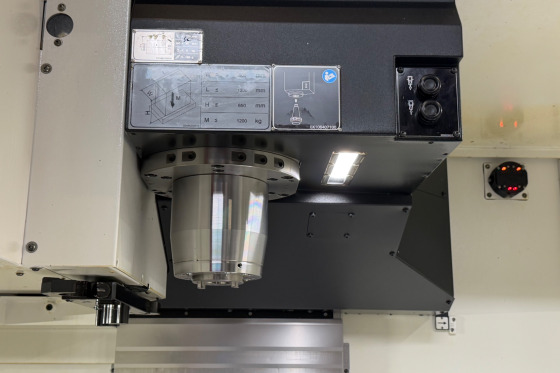

Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
18.5 kW
18.5 kW
Speeds / ranges
12000 Rpm
12000 Rpm
ATC / revolver
48
48
Coolant through spindle / Bar
20
20
Number of controlled axis
3+1
3+1
Chip conveyor
Yes
Yes
Coolantsystem
Yes
Yes
Dimensions (Estimate)
Length
3816 mm
150.236 inch
Width
2902 mm
114.252 inch
Height
2938 mm
115.669 inch
Weight
7000 kg
15439.3 lbs
