This machine is sold

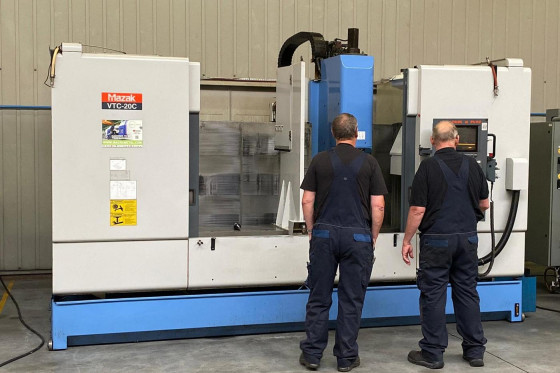

3-axis CNC machine (VMC) MAZAK - VTC 20-C
MACH-ID 5065| Make: | MAZAK |
| Type: | VTC 20-C |
| Year: | 1997 |
Specifications
X - Travel
1660 mm
65.354 inch
Y - Travel
510 mm
20.079 inch
Z - Travel
510 mm
20.079 inch
Table Length
2000 mm
78.74 inch
Table Width
510 mm
20.079 inch
Table load
1000
1000
Feed rate X-Axis
24.000 mm/min.
24.000 mm/min.
Feed rate Y-Axis
24.000 mm/min.
24.000 mm/min.
Feed rate Z-Axis
20.000 mm/min.
20.000 mm/min.
Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
11 kW
11 kW
Speeds / ranges
7000 Rpm
7000 Rpm
ATC / revolver
24
24
Number of controlled axis
3
3
Dimensions (Estimate)
Length
4900 mm
192.913 inch
Width
3000 mm
118.11 inch
Height
2700 mm
106.299 inch
Weight
7300 kg
16101 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
