This machine is sold

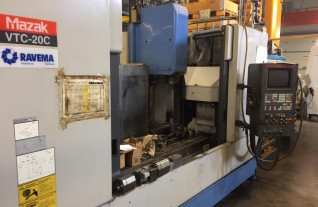

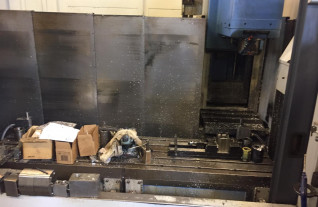

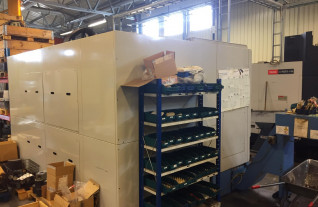

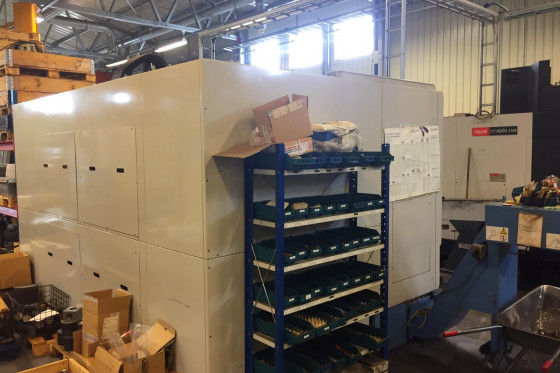

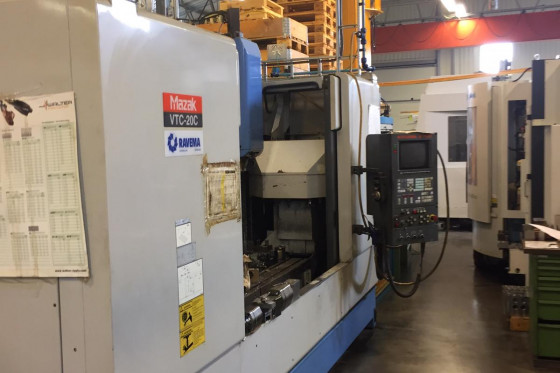

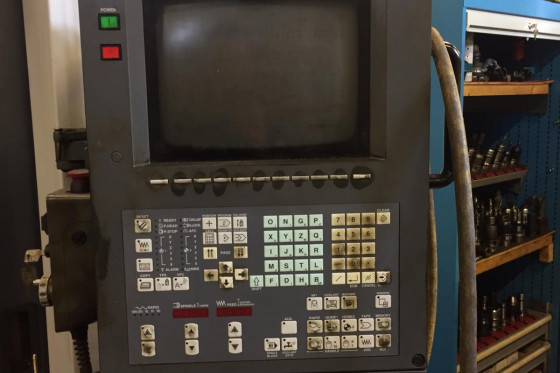

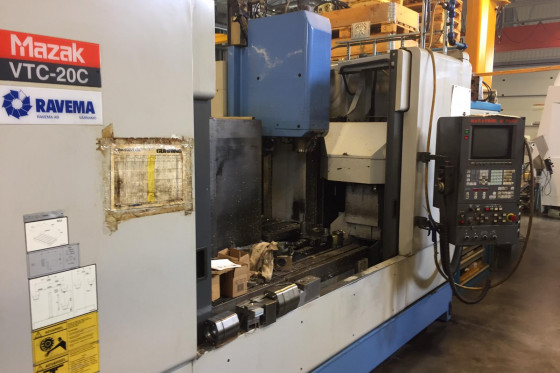

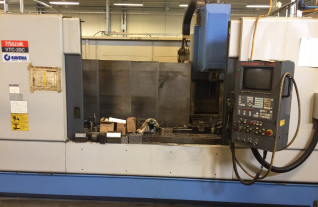

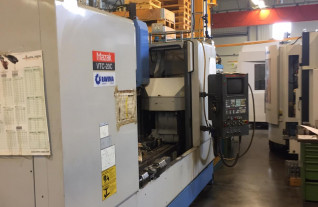

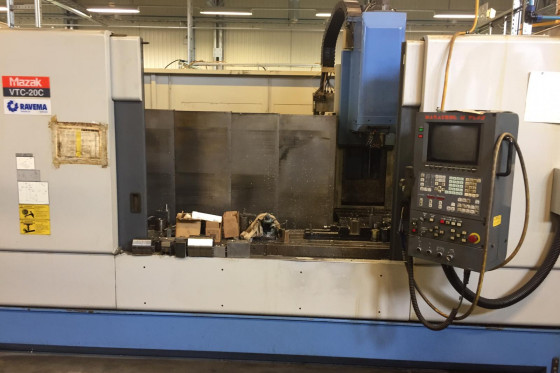

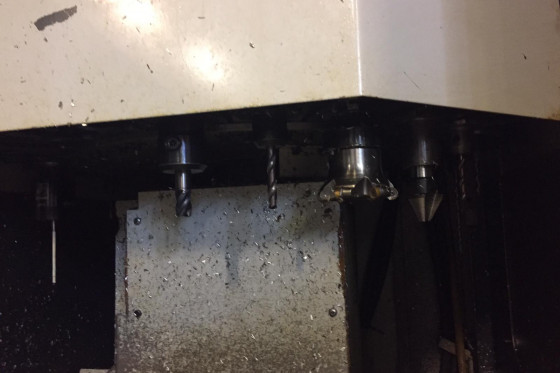

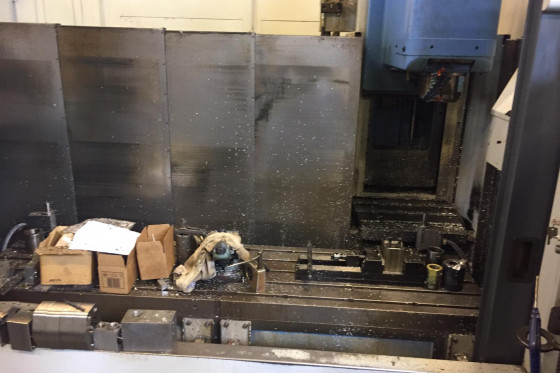

3-axis CNC machine (VMC) MAZAK - VTC 200 C
VMC X / Y / Z 1660 x 510 x 510 mm MACH-ID 6107| Make: | MAZAK |
| Type: | VTC 200 C |
| Year: | 1998 |

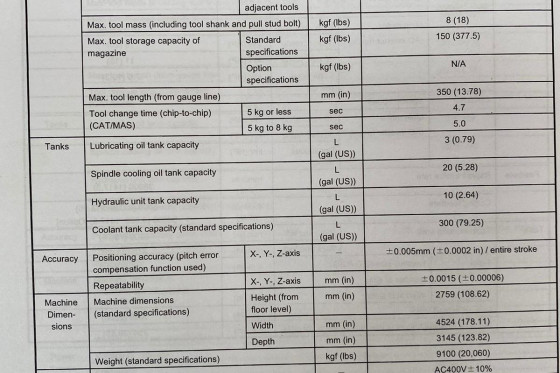

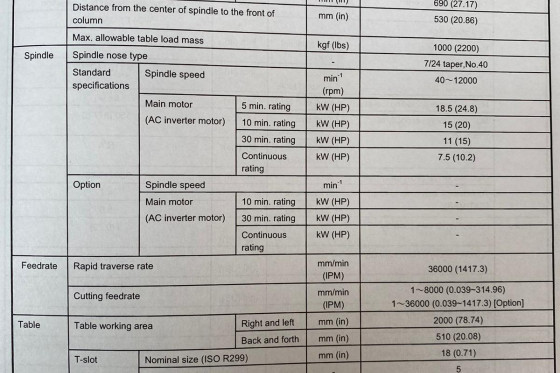

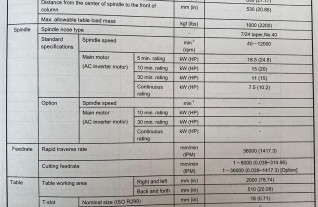

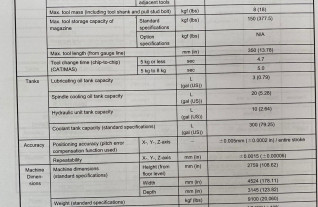

Specifications
X - Travel
1660 mm
65.354 inch
Y - Travel
510 mm
20.079 inch
Z - Travel
510 mm
20.079 inch
Table Length
2000 mm
78.74 inch
Table Width
510 mm
20.079 inch
Table load
1000
1000
Feed rate X-Axis
36.000 mm/min.
36.000 mm/min.
Feed rate Y-Axis
36.000 mm/min.
36.000 mm/min.
Feed rate Z-Axis
36.000 mm/min.
36.000 mm/min.

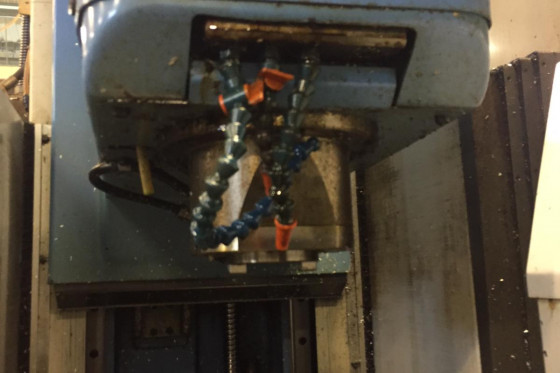

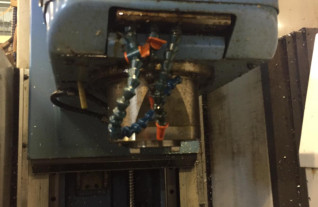

Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
15 kW
15 kW
Speeds / ranges
8.000 Rpm
8.000 Rpm
ATC / revolver
30
30
Number of controlled axis
3
3
Chip conveyor
yes
yes
Coolantsystem
yes
yes
Dimensions (Estimate)
Length
4524 mm
178.11 inch
Width
3145 mm
123.819 inch
Height
2798 mm
110.157 inch
Weight
9100 kg
20071.1 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
