This machine is sold

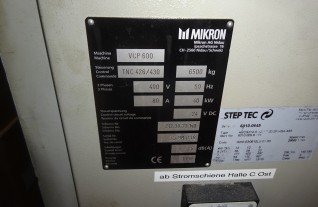

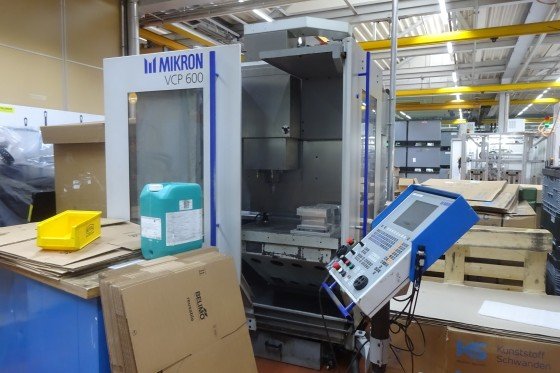

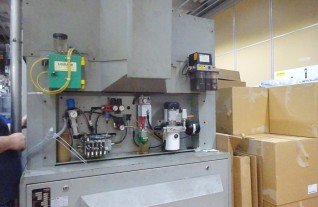

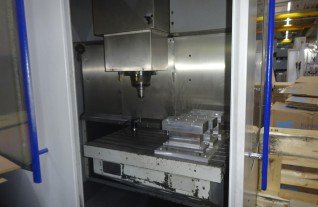

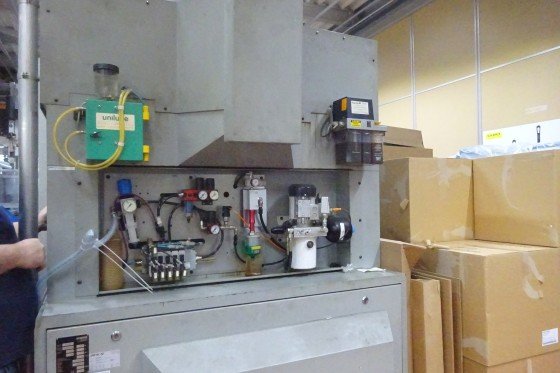

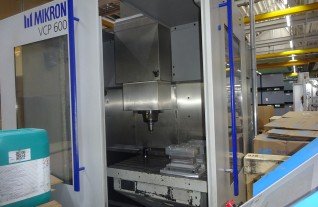

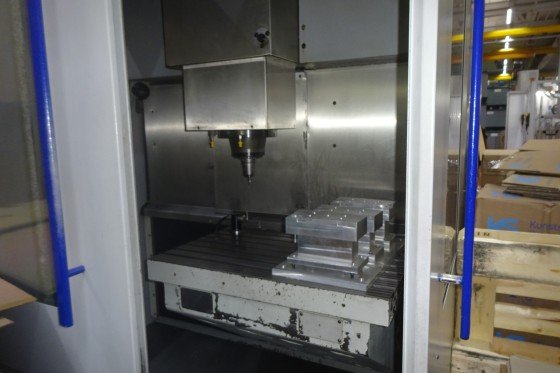

3-axis CNC machine (VMC) MIKRON - VCP 600
MACH-ID 7587| Make: | MIKRON |
| Type: | VCP 600 |
| Control: | HeidenHain TNC 426 |
| Year: | 2000 |
Specifications
X - Travel
600 mm
23.622 inch
Y - Travel
450 mm
17.717 inch
Z - Travel
450 mm
17.717 inch
Table Length
850 mm
33.465 inch
Table Width
530 mm
20.866 inch
Table load
400
400
Feed rate X-Axis
15000 mm/min.
15000 mm/min.
Feed rate Y-Axis
15000 mm/min.
15000 mm/min.
Feed rate Z-Axis
15000 mm/min.
15000 mm/min.
Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
10 kW
10 kW
Speeds / ranges
12000 Rpm
12000 Rpm
ATC / revolver
30
30
Dimensions (Estimate)
Length
3350 mm
131.89 inch
Width
2400 mm
94.488 inch
Height
2650 mm
104.331 inch
Weight
6500 kg
14336.5 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
