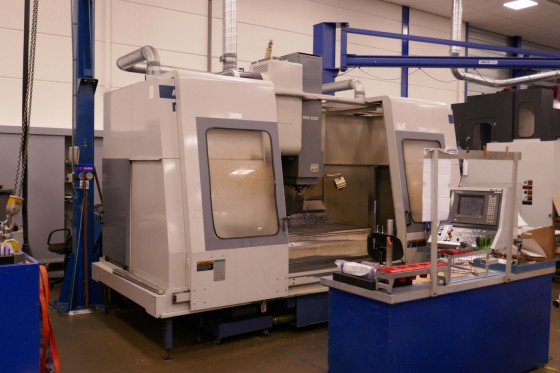

3-axis CNC machine (VMC) MV 65 B / 50

MACH-ID 3680

Type:	MV 65 B / 50
Year:	1997

Whatsapp question

Specifications

Metric US Standard

X - Travel 1524 mm 60 inch

Y - Travel 650 mm 25.591 inch

Z - Travel 650 mm 25.591 inch

Table load 2000 2000

Spindle Taper Bt 50 ISO/Bt/Mk Bt 50 ISO/Bt/Mk

Power on spindle 35 Hp kW 35 Hp kW

Speeds / ranges 6000 Rpm 6000 Rpm

ATC / revolver 30 Pos x u00d8 240 x 20 Kg 30 Pos x u00d8 240 x 20 Kg

Coolant through spindle / Bar Yes Yes

Number of controlled axis 3 3

Dimensions (Estimate)

Length 3280 mm 129.134 inch

Width 2260 mm 88.976 inch

Height 2950 mm 116.142 inch

Weight 0 kg 0 lbs

Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
