This machine is sold

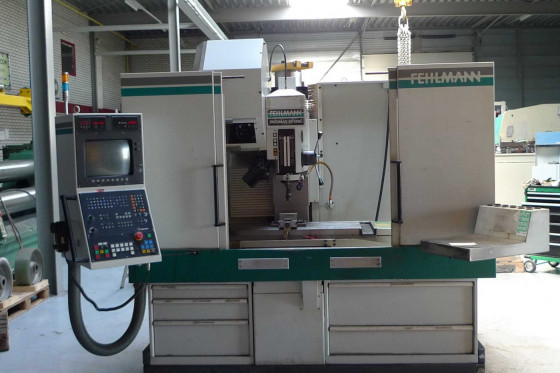

3-axis CNC machine (VMC) PICOMAX 80 CNC - W 2/3
MACH-ID 3206| Type: | PICOMAX 80 CNC - W 2/3 |
Specifications
X - Travel
700 mm
27.559 inch
Y - Travel
315 mm
12.402 inch
Z - Travel
180 mm
7.087 inch
Table load
250
250
Spindle Taper
Sk 30 ISO/Bt/Mk
Sk 30 ISO/Bt/Mk
Power on spindle
5 kW kW
5 kW kW
Speeds / ranges
50 - 9200 Rpm
50 - 9200 Rpm
ATC / revolver
32
32
Number of controlled axis
4
4
Dimensions (Estimate)
Length
2200 mm
86.614 inch
Width
2400 mm
94.488 inch
Height
2750 mm
108.268 inch
Weight
3400 kg
7499.1 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
