This machine is sold

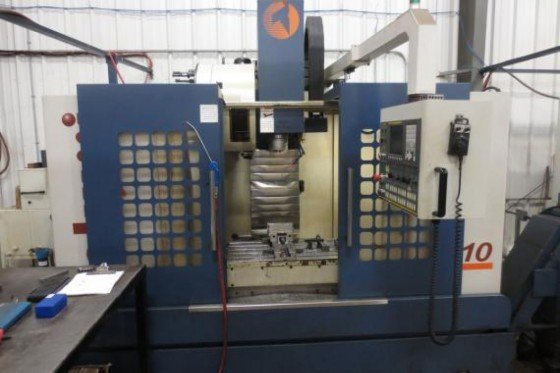

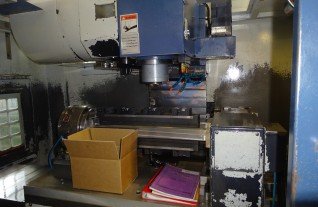

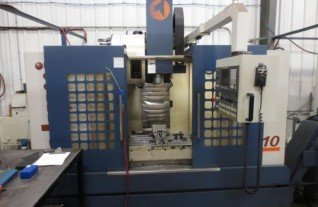

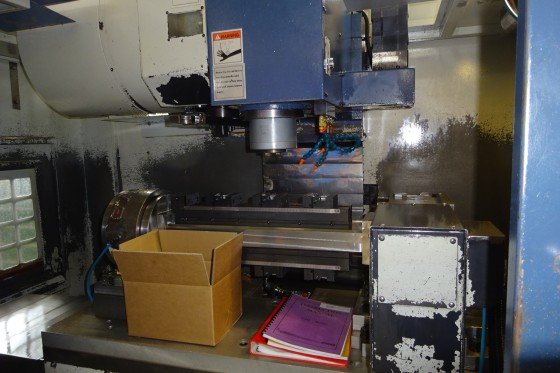

3-axis CNC machine (VMC) Takumi - V10
MACH-ID 7621| Make: | Takumi |
| Type: | V10 |

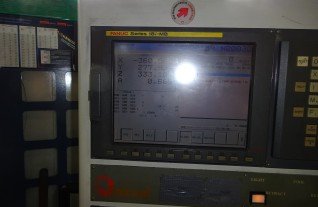

| Control: | Fanuc 18i MB |
| Year: | 2006 |
Specifications
X - Travel
1000 mm
39.37 inch
Y - Travel
510 mm
20.079 inch
Z - Travel
560 mm
22.047 inch
Table Length
1060 mm
41.732 inch
Table Width
550 mm
21.654 inch
Table load
600
600
Feed rate X-Axis
7000 mm/min.
7000 mm/min.
Feed rate Y-Axis
7000 mm/min.
7000 mm/min.
Feed rate Z-Axis
7000 mm/min.
7000 mm/min.
Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
11 kW
11 kW
Speeds / ranges
10000 Rpm
10000 Rpm
ATC / revolver
24
24
Chip conveyor
Yes
Yes

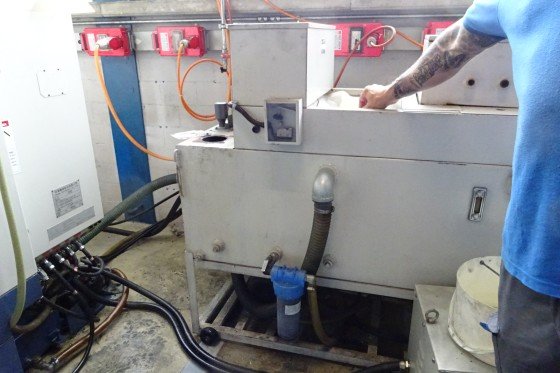

Coolantsystem
Yes
Yes
Dimensions (Estimate)
Length
2800 mm
110.236 inch
Width
2210 mm
87.008 inch
Height
2355 mm
92.716 inch
Weight
6200 kg
13674.8 lbs
