This machine is sold

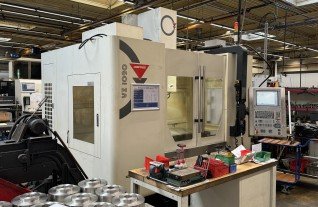

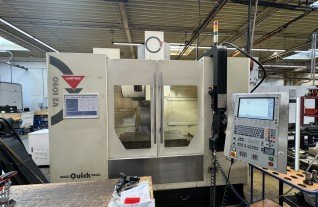

3-axis CNC machine (VMC) Wemas - VZ 1020 Quick
MACH-ID 8634| Make: | Wemas |
| Type: | VZ 1020 Quick |
| Control: | HeidenHain iTNC530 |
| Year: | 2011 |
- HeidenHain iTNC530
- Heidenhain HR-410 Handwheel

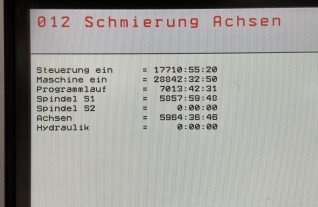

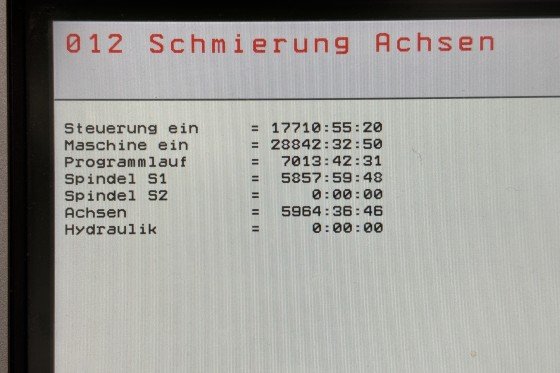

- Spindle hours 5900 (02.2024)
- Needs attention ballscrew X-Axis
- Needs attention front door guiders
Specifications
X - Travel
1020 mm
40.157 inch
Y - Travel
600 mm
23.622 inch
Z - Travel
650 mm
25.591 inch
Table Length
1100 mm
43.307 inch
Table Width
600 mm
23.622 inch
Table load
500
500
Feed rate X-Axis
36000 mm/min.
36000 mm/min.
Feed rate Y-Axis
36000 mm/min.
36000 mm/min.
Feed rate Z-Axis
36000 mm/min.
36000 mm/min.
Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
15 kW
15 kW
Speeds / ranges
10000 Rpm
10000 Rpm
ATC / revolver
30
30
Coolant through spindle / Bar
20
20
Number of controlled axis
3
3
Chip conveyor
Yes
Yes
Coolantsystem
Yes
Yes
Dimensions (Estimate)
Length
3500 mm
137.795 inch
Width
2100 mm
82.677 inch
Height
2100 mm
82.677 inch
Weight
5900 kg
13013.2 lbs
