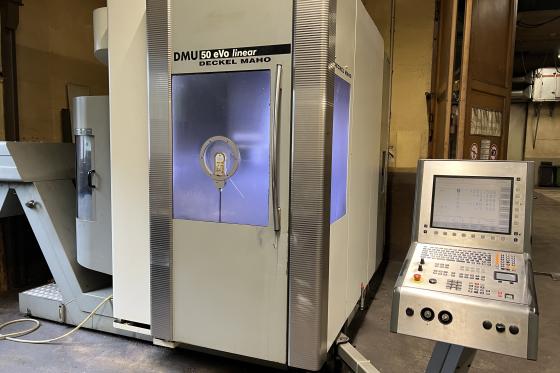

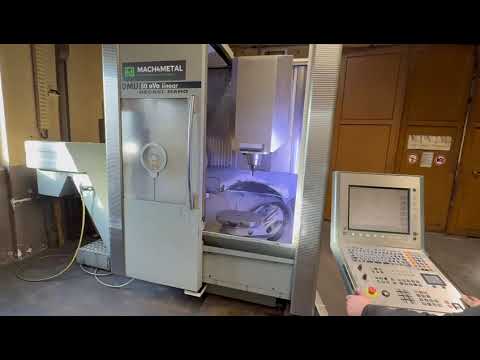

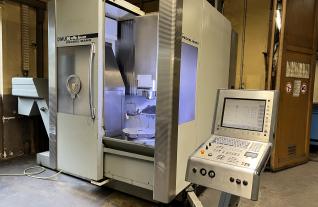

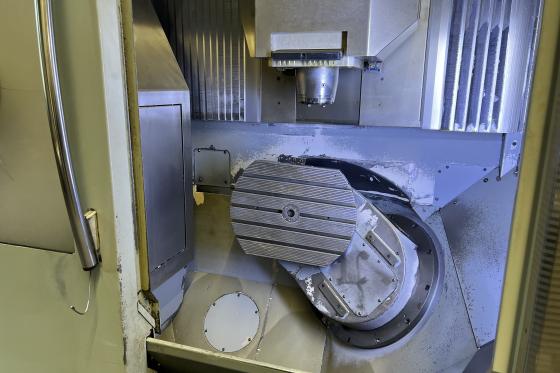

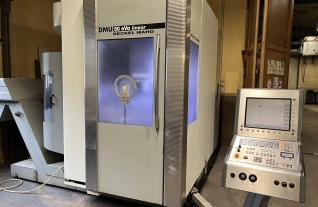

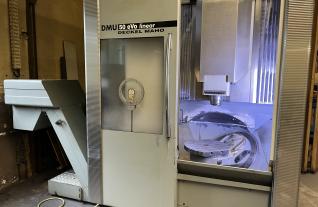

5-axis CNC machine (VMC) DECKEL MAHO - DMU 50 eVo Linear
MACH-ID 9195| Make: | DECKEL MAHO |
| Type: | DMU 50 eVo Linear |

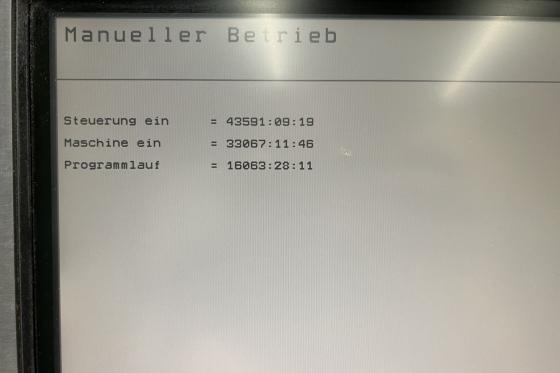

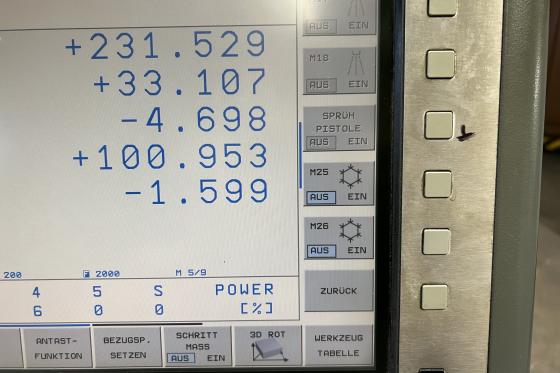

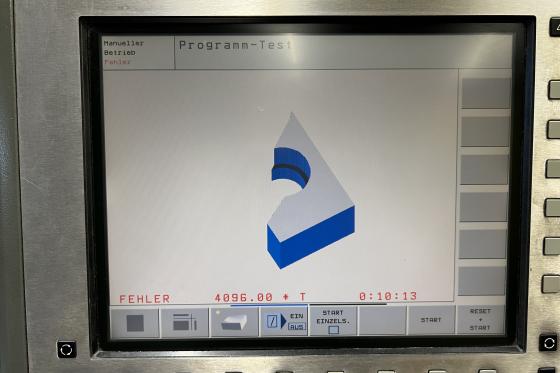

| Control: | HeidenHain iTNC530 |
| Year: | 2006 |

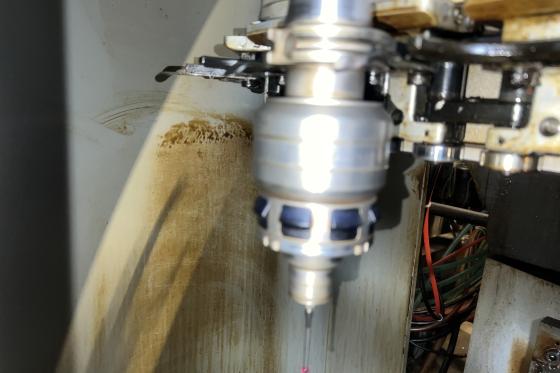

- Measuring probe TS640

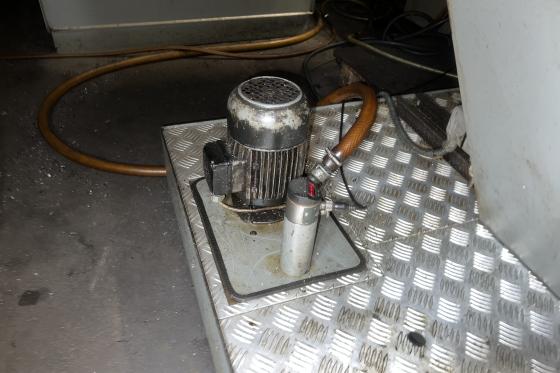

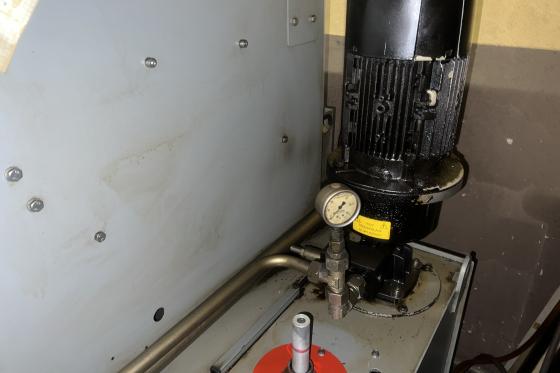

- Tank 600 L with 40 Bar IKZ
- Extended chip conveyor for 30/60 Tools ATC
- Direct measuring scales also in B & C Axis
- Air true spindle over M-Function
Specifications
X - Travel
500 mm
19.685 inch
Y - Travel
450 mm
17.717 inch
Z - Travel
400 mm
15.748 inch
A - Axis
360 °
360 °
B - Axis
0 - 108 °
0 - 108 °
Table Length
500 mm
19.685 inch
Table Width
380 mm
14.961 inch
Table load
200
200
Feed rate X-Axis
50000 mm/min.
50000 mm/min.
Feed rate Y-Axis
50000 mm/min.
50000 mm/min.
Feed rate Z-Axis
50000 mm/min.
50000 mm/min.
Spindle Taper
40 ISO/Bt/Mk
40 ISO/Bt/Mk
Power on spindle
35 kW
35 kW
Speeds / ranges
18000 Rpm
18000 Rpm
ATC / revolver
30
30
Coolant through spindle / Bar
40
40
Number of controlled axis
3+2
3+2
Chip conveyor
yes
yes
Coolantsystem
yes
yes
Dimensions (Estimate)
Length
3800 mm
149.606 inch
Width
3200 mm
125.984 inch
Height
2800 mm
110.236 inch
Weight
6500 kg
14336.5 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
