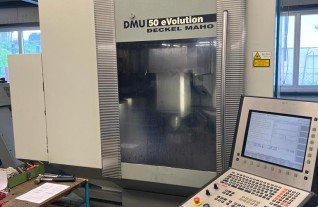

5-axis CNC machine (VMC) DECKEL MAHO - DMU 50 eVolution

MACH-ID 8549

Make:	DECKEL MAHO
Type:	DMU 50 eVolution

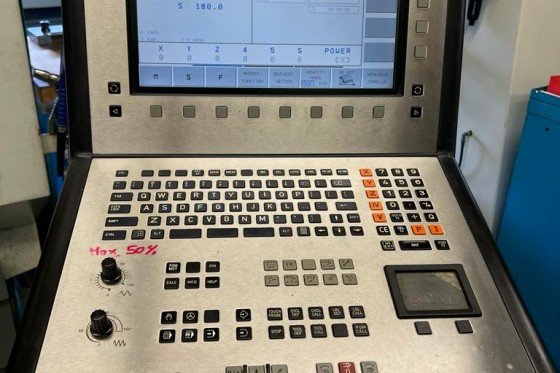

Control:	HeidenHain iTNC530
Year:	2002

Whatsapp question

Specifications

Metric US Standard

X - Travel 500 mm 19.685 inch

Y - Travel 420 mm 16.535 inch

Z - Travel 380 mm 14.961 inch

A - Axis 360.000 (360 with resolution 0,001) ° 360.000 (360 with resolution 0,001) °

B - Axis 360.000 (360 with resolution 0,001) ° 360.000 (360 with resolution 0,001) °

Table Length 500 mm 19.685 inch

Table Width 380 mm 14.961 inch

Table load 200 200

Feed rate X-Axis 50000 mm/min. 50000 mm/min.

Feed rate Y-Axis 50000 mm/min. 50000 mm/min.

Feed rate Z-Axis 50000 mm/min. 50000 mm/min.

Spindle Taper 40 ISO/Bt/Mk 40 ISO/Bt/Mk

Power on spindle 35 kW 35 kW

Speeds / ranges 18000 Rpm 18000 Rpm

ATC / revolver 30 30

Coolant through spindle / Bar 20 20

Number of controlled axis 3 + 2 3 + 2

Chip conveyor Yes Yes

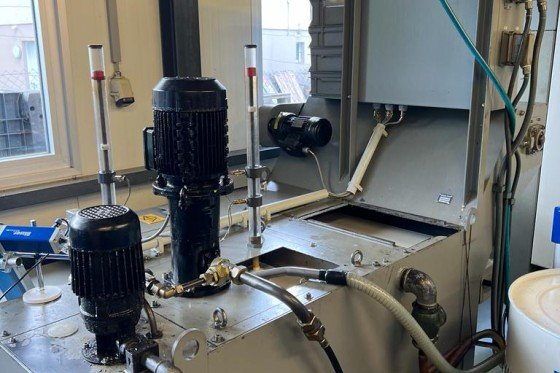

Coolantsystem Yes Yes

Dimensions (Estimate)

Length 2700 mm 106.299 inch

Width 5400 mm 212.598 inch

Height 2700 mm 106.299 inch

Weight 5020 kg 11072.2 lbs
