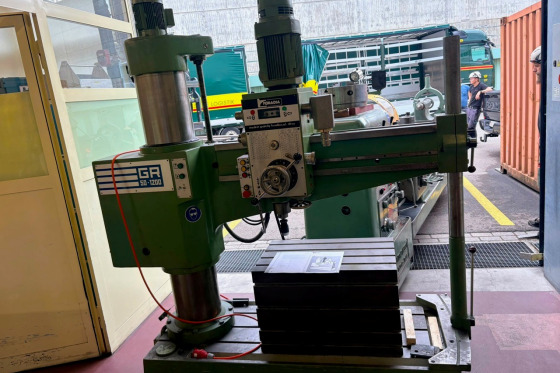

Radial arm drill Foradia - GR50 - 1200
MACH-ID 9784| Make: | Foradia |
| Type: | GR50 - 1200 |
| Year: | 1994 |
Specifications
Arm Length
1200 mm
47.244 inch
Max. drill Ø cast
60 mm
2.362 inch
Max. tap Ø
40 M
40 M
Max. drill Ø steel
50 mm
1.969 inch
Stroke pinole
110 mm
4.331 inch
Max. distance spindle - table
1165 mm
45.866 inch
Min. distance spindle - table
300 mm
11.811 inch
Floor / table area
1400 x 580 mm
1400 x 580 inch
Speeds / ranges
1460 Rpm
1460 Rpm
Spindle Taper
5 ISO/Bt/Mk
5 ISO/Bt/Mk
Dimensions (Estimate)
Length
2300 mm
90.551 inch
Width
1100 mm
43.307 inch
Height
2400 mm
94.488 inch
Weight
2700 kg
5955.2 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
