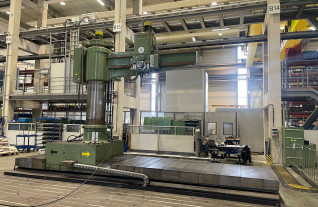

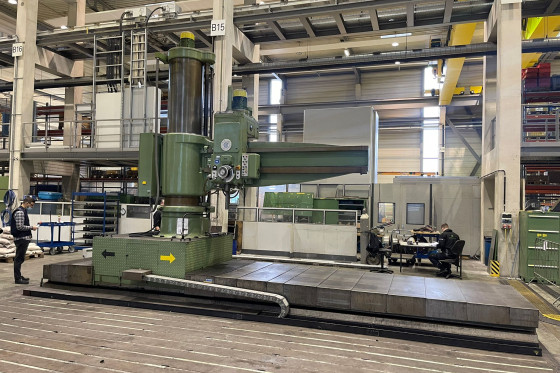

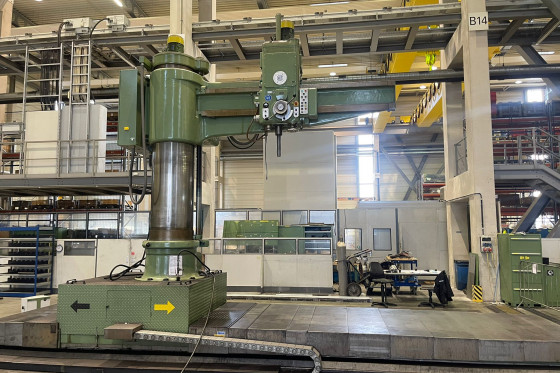

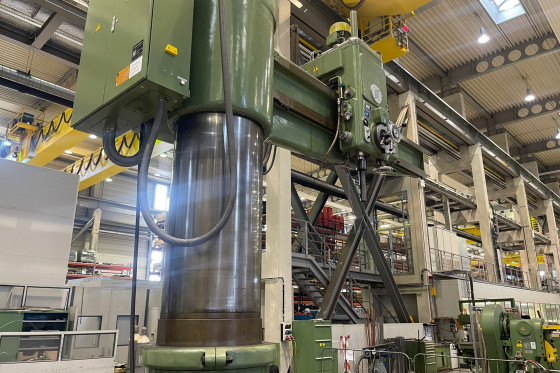

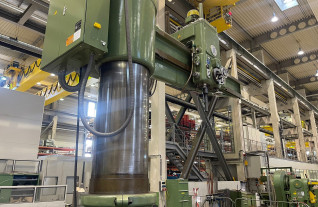

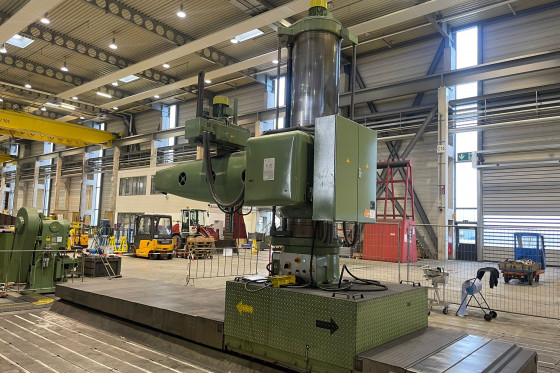

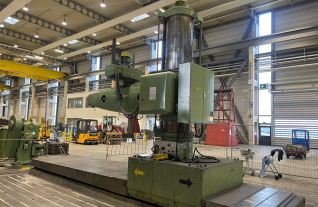

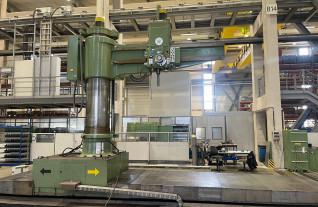

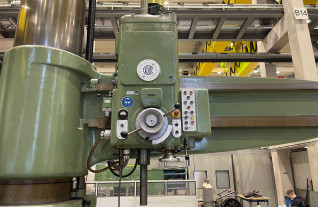

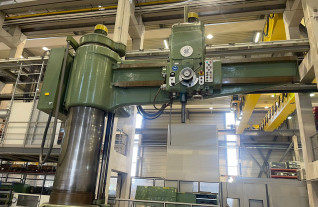

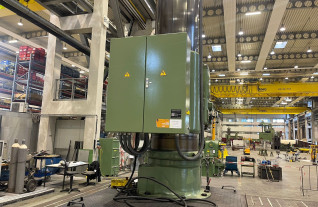

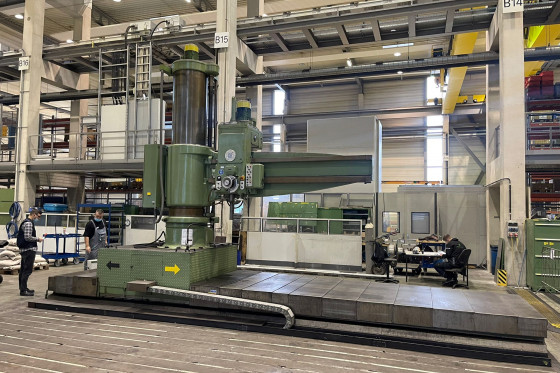

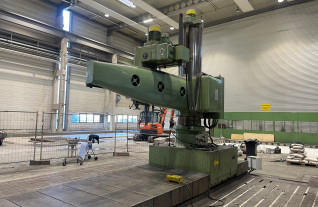

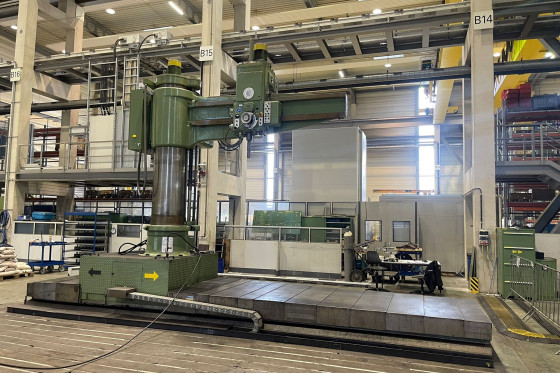

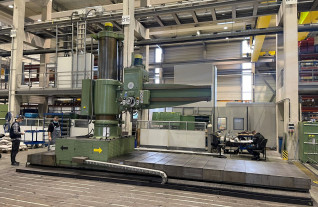

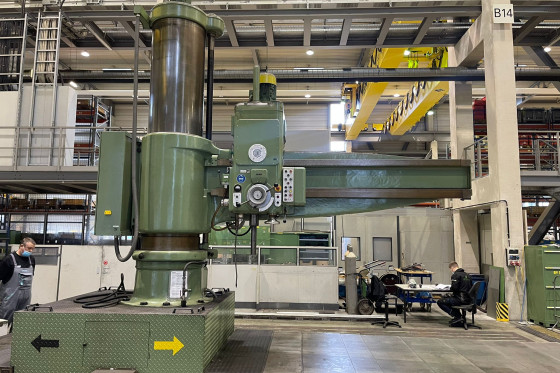

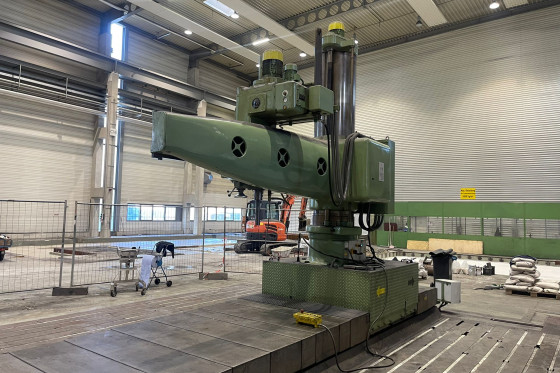

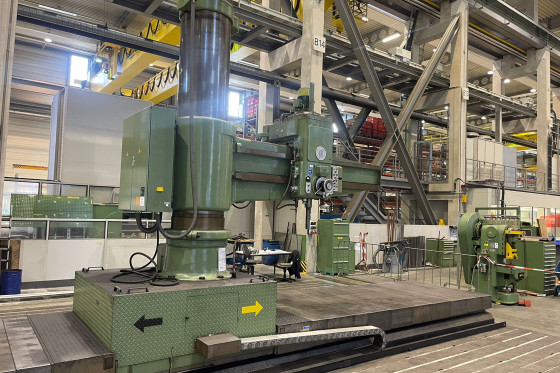

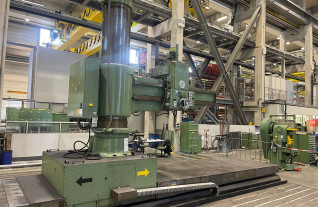

Radial arm drill KOLB - HKH 80 x 2500
Radial drilling machine Ø 80 x 2500 mm MACH-ID 6863| Make: | KOLB |
| Type: | HKH 80 x 2500 |
| Year: | 2012 |
- Rebuild in 2012 KNUT PAlasdies GmbH
- Transportable in X 6300 mm
- Drilling force 3000 Kg
- Feed rate 18 x 0,07 – 2,9 Rpm
Specifications
Arm Length
2500 mm
98.425 inch
Max. drill Ø cast
80 / 100 mm
80 / 100 inch
Max. tap Ø
100 / 127 M
100 / 127 M
Stroke pinole
600 mm
23.622 inch
Max. distance spindle - table
2190 mm
86.22 inch
Min. distance spindle - table
300 mm
11.811 inch
Speeds / ranges
1360 Rpm
1360 Rpm
Spindle Taper
6 ISO/Bt/Mk
6 ISO/Bt/Mk
Column sleeve
115 mm
4.528 inch
Power
7,5 kW
7,5 kW
Dimensions (Estimate)
Length
8000 mm
314.96 inch
Width
1600 mm
62.992 inch
Height
5000 mm
196.85 inch
Weight
25000 kg
55140.5 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
