This machine is sold

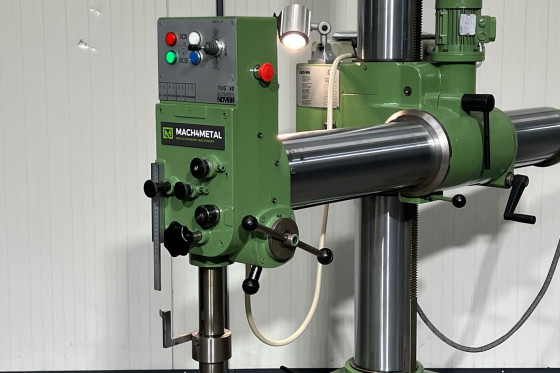

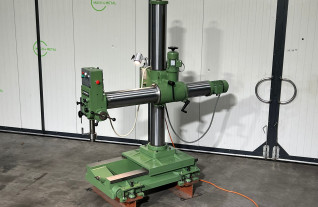

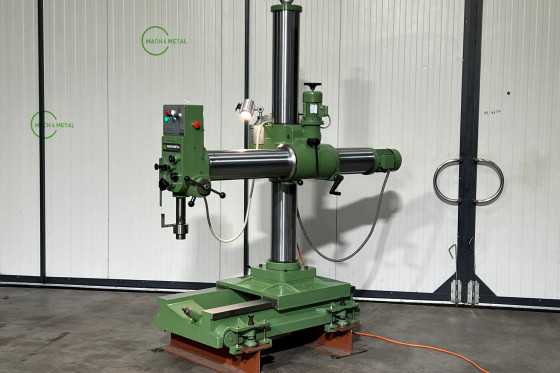

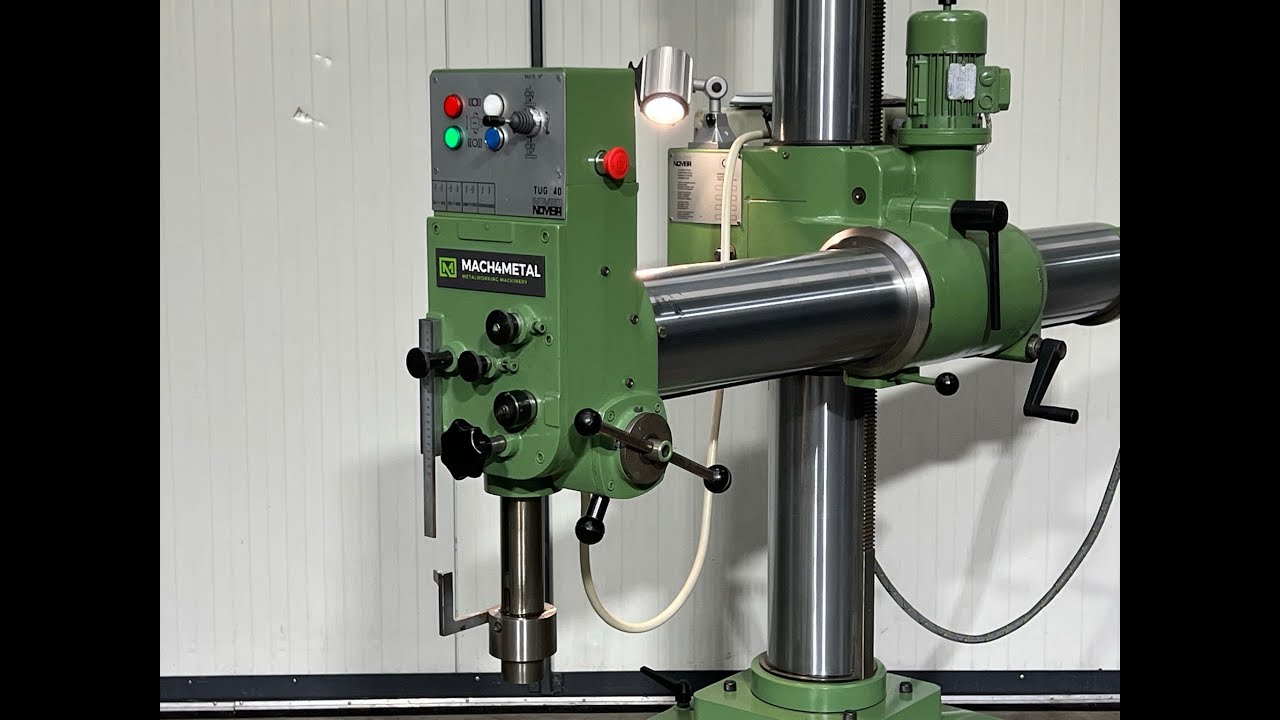

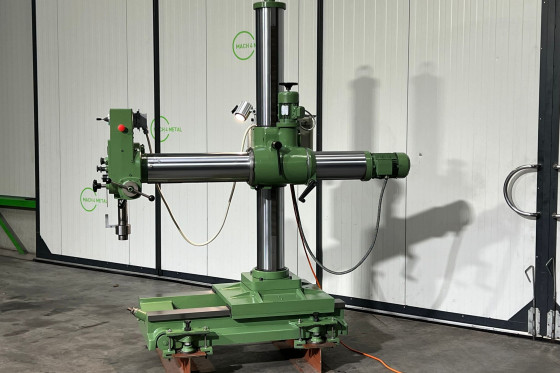

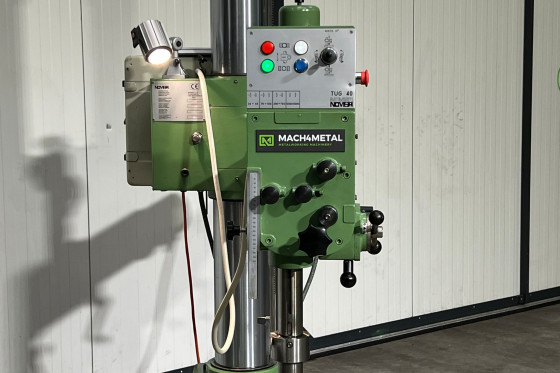

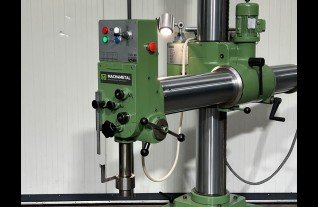

Radial arm drill NOVISA - TUG 40 S

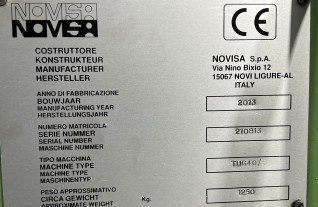

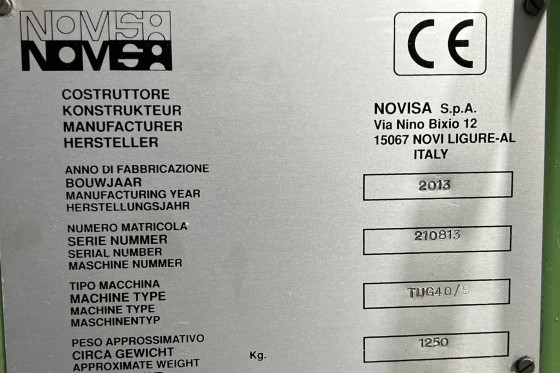

Universal transportable radial drill Ø 32 mm MACH-ID 6970| Make: | NOVISA |
| Type: | TUG 40 S |
| Year: | 2013 |
- Drilling head rotation 360 Gr.

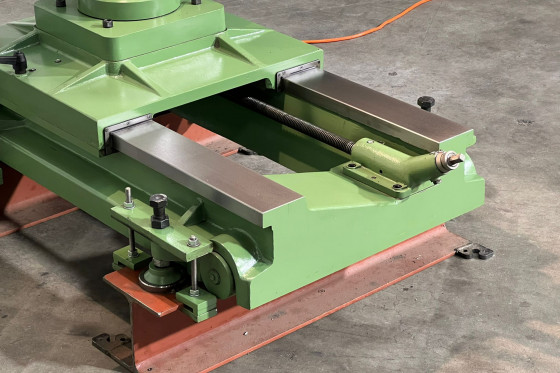

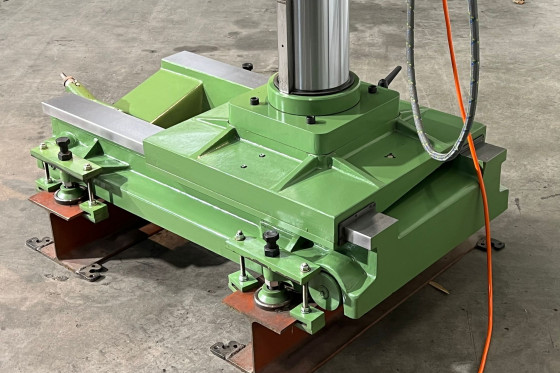

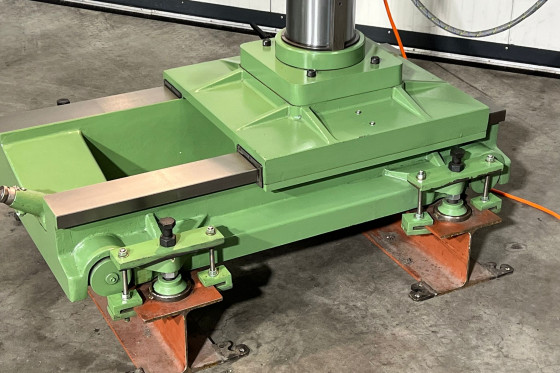

- Travel on bed X-Direction 600 mm
- Feed rate 0,06 / 12,0 / 25
Specifications
Arm Length
1300 mm
51.181 inch
Max. drill Ø cast
40 mm
1.575 inch
Stroke pinole
190 mm
7.48 inch
Max. distance spindle - table
1570 mm
61.811 inch
Min. distance spindle - table
570 mm
22.441 inch
Floor / table area
1400 x 840 mm
1400 x 840 inch

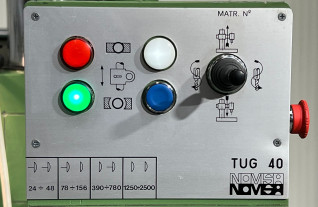

Speeds / ranges
2560 Rpm
2560 Rpm
Spindle Taper
4 ISO/Bt/Mk
4 ISO/Bt/Mk
Column sleeve
190 mm
7.48 inch
Dimensions (Estimate)
Length
1100 mm
43.307 inch
Width
2000 mm
78.74 inch
Height
2000 mm
78.74 inch
Weight
1200 kg
2646.7 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
