This machine is sold

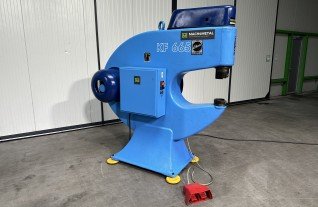

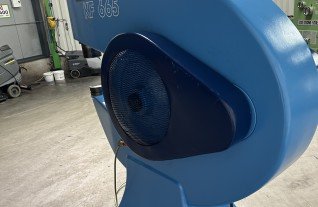

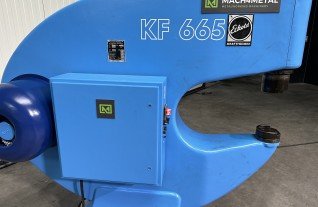

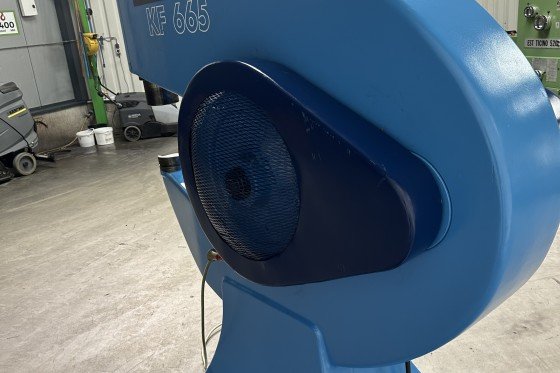

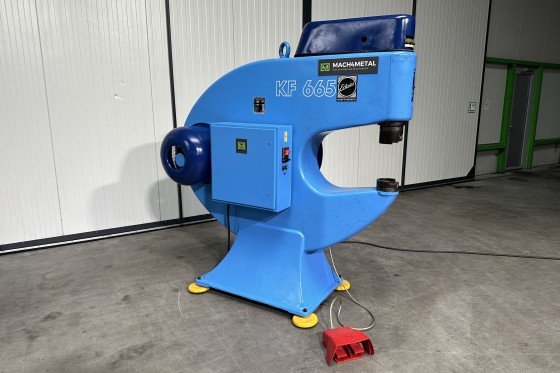

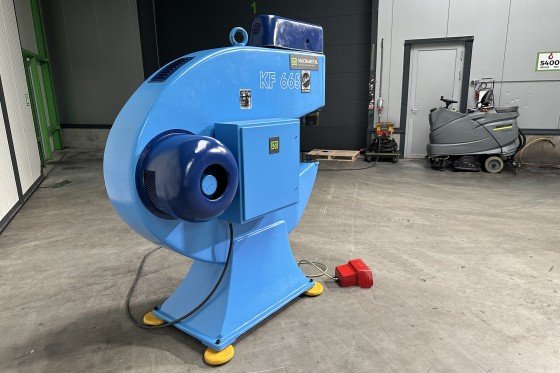

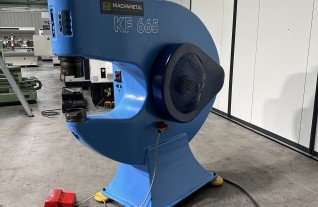

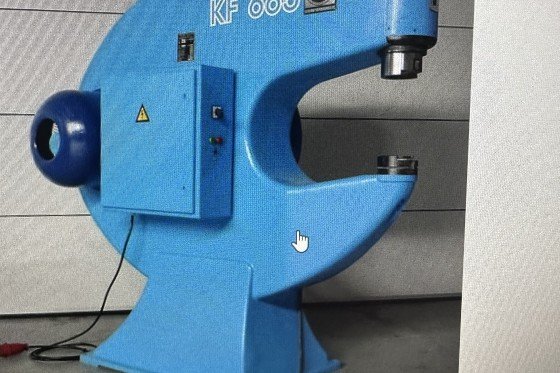

Eckold kraftformer ECKOLD - KF 665
MACH-ID 7694| Make: | ECKOLD |
| Type: | KF 665 |
Eckold Kraftformer; motorised machine for Shrinking, Stretching,
Doming, Planishing, Reforming, Flattening, Straightening
Machine equipped for tooling:
FWR1307
FWA 1306
FWA 802T
FWA 1002T
LFA 120S
LFA155T
Specifications
Number of strokes
150 / 300 / 600 Min.
150 / 300 / 600 Min.
Maximum sheet thickness
6.0 mm
0.236 inch
Horizontal troath
675 mm
26.575 inch
Vertical troath
450 mm
17.717 inch
Max. thickness Stainles
4 mm
0.157 inch
Max. thickness Aluminium
8 mm
0.315 inch
Motorised ram adjustment
80
80
Power
4.1 kW
4.1 kW
Dimensions (Estimate)
Length
1950 mm
76.772 inch
Width
860 mm
33.858 inch
Height
2050 mm
80.709 inch
Weight
2000 kg
4411.2 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
