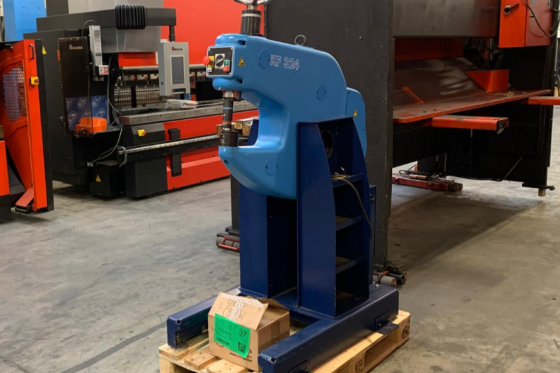

Eckold Kraftformers Piccolo Walter Eckold - KF 324
MACH-ID 9806| Make: | Walter Eckold |
| Type: | KF 324 |
| Year: | 2011 |
Eckold Kraftformer; motorised machine for Shrinking, Stretching,
Doming, Planishing, Reforming, Flattening, Straightening
For Aircraft production and Maintenance.
For Car body shop specialists
For Artisans and Craftmen
Equipped with tool storage shelf in side column
Machine equipped for tooling:
FWR 402S
FWA 403S
Specifications
Number of strokes
400 Min.
400 Min.
Maximum sheet thickness
2.0 mm
0.079 inch
Horizontal troath
340 mm
13.386 inch
Vertical troath
245 mm
9.646 inch
Max. thickness Stainles
1.5 mm
0.059 inch
Max. thickness Aluminium
2.5 mm
0.098 inch
Motorised ram adjustment
32
32
Manuel / Hand ram adjustment
Handwheel
Handwheel
Power
2.0 kW
2.0 kW

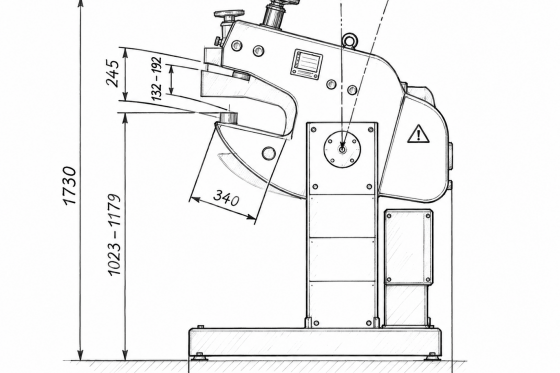

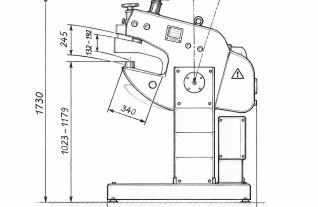

Dimensions (Estimate)
Length
1215 mm
47.835 inch
Width
680 mm
26.772 inch
Height
1730 mm
68.11 inch
Weight
504 kg
1111.6 lbs
