This machine is sold

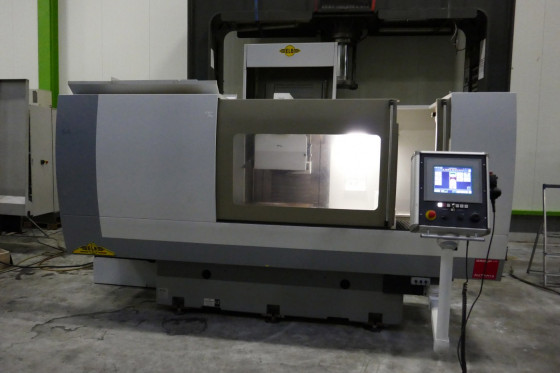

Surface grinder SMART DB 10
MACH-ID 3612| Type: | SMART DB 10 |
| Year: | 2012 |
Specifications
X - Travel
1000 mm
39.37 inch
Y - Travel
600 mm
23.622 inch
Z - Travel
700 mm
27.559 inch
Grinding stone dimensions
400 x 100 x 127 mm
400 x 100 x 127 inch
Dimensions (Estimate)
Length
4100 mm
161.417 inch
Width
2500 mm
98.425 inch
Height
2750 mm
108.268 inch
Weight
8000 kg
17645 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
