This machine is sold

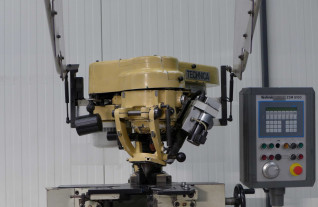

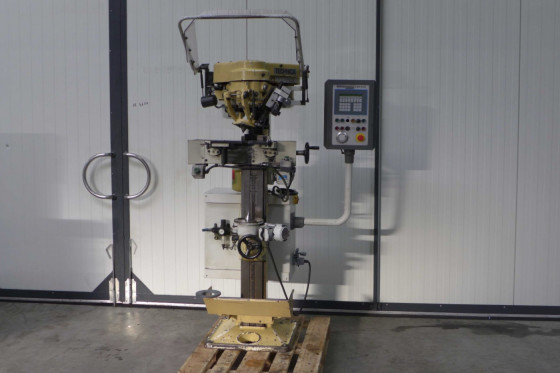

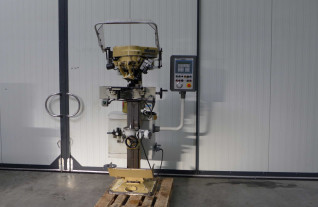

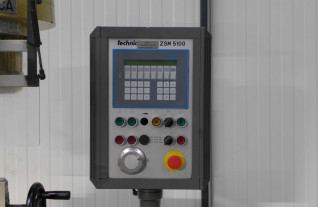

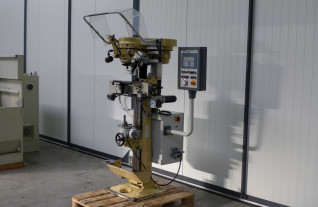

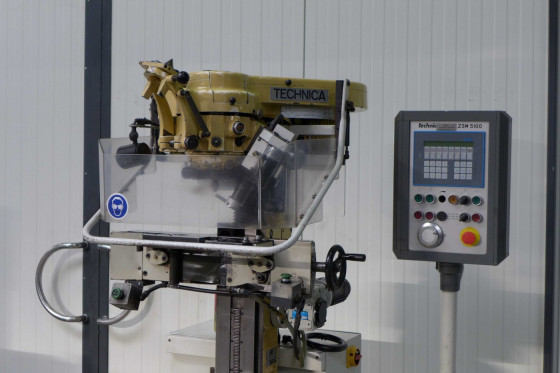

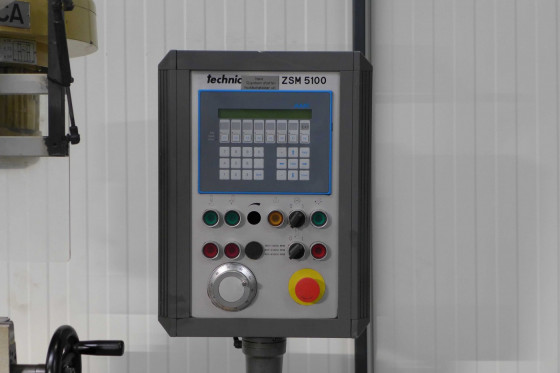

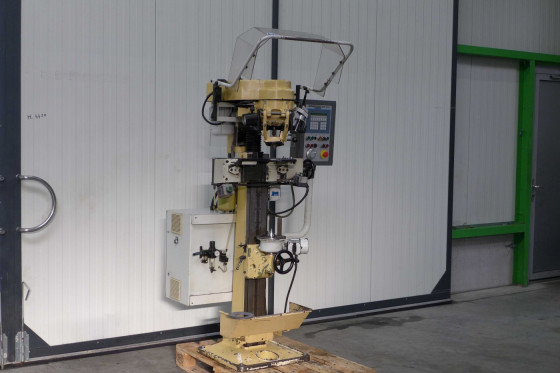

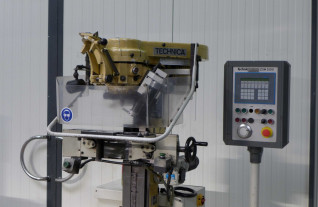

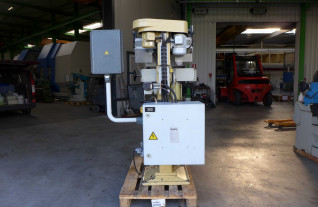

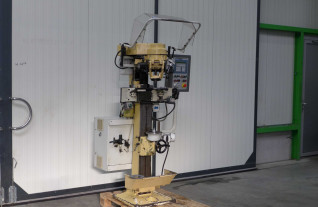

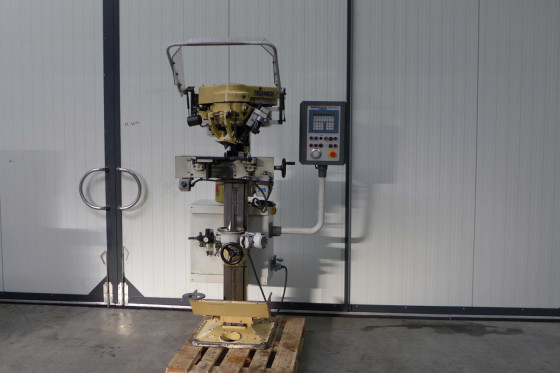

Tool grinding machine ZSM 5100 - 815
MACH-ID 2305| Type: | ZSM 5100 - 815 |
Specifications
There are no specifications for this machine (yet).
Dimensions (Estimate)
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

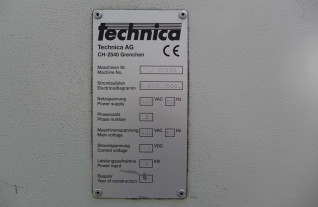

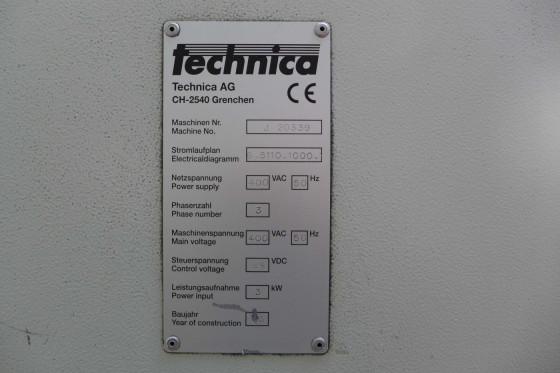

Make : TECHNICA Swiss
Typ : ZSM 5100 - 815
Mach. No : J 20339
Age : 2003 rebuild
Centre hole Ø Min : 3
Centre hole Ø Max. : 60
Length workpiece Min. : 50
Length workpiece Max. : 1.100
Workpiece weight Kg : 120
Clamp range vice : Ø 4 - 140
Grinding wheel spindle : Ø 32
Ø 15 - 45.000 Rpm
Ø 27 - 22.500 Rpm
Ø 48 - 13.000 Rpm
Ø 60 - 13.000 Rpm
Grinding head adjustment : 160
Rapid head adjustment : 70
Automatic dressing stroke : 40
Adjustment : 0.01 – 0.03 mm
Dressing speed Diamond : 470 mm/Min
