This machine is sold

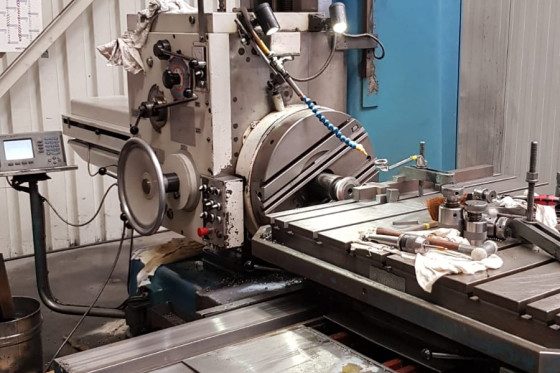

Table type boring mill TOS VARNSDORF - W100A
Horizontal borer 1600 x 1120 x 810 x 900 mm MACH-ID 6998| Make: | TOS VARNSDORF |
| Type: | W100A |
| Year: | 2002 |
- incl. 4 axis ACCURITE dro
- incl. facing head
- incl. CE Mark
- Work spindel 100 mm
Specifications
X - Travel
1600 mm
62.992 inch
Y - Travel
1120 mm
44.094 inch
Z - Travel
810 mm
31.89 inch
W - Travel
900 mm
35.433 inch
Table Length
1250 mm
49.213 inch
Table Width
1250 mm
49.213 inch
Table load
3000
3000
Speeds / ranges
1120 Rpm
1120 Rpm
Power
11 kW
11 kW
Spindle Taper
50 ISO/Bt/Mk
50 ISO/Bt/Mk
Feed rate X-Axis
900 mm/min.
900 mm/min.
Feed rate Y-Axis
900 mm/min.
900 mm/min.
Feed rate Z-Axis
900 mm/min.
900 mm/min.
Feed rate W-Axis
900 mm/min.
900 mm/min.
Dimensions (Estimate)
Length
4600 mm
181.102 inch
Width
3500 mm
137.795 inch
Height
3200 mm
125.984 inch
Weight
14000 kg
30878.7 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
