This machine is sold

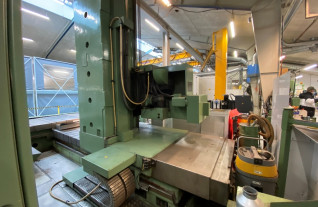

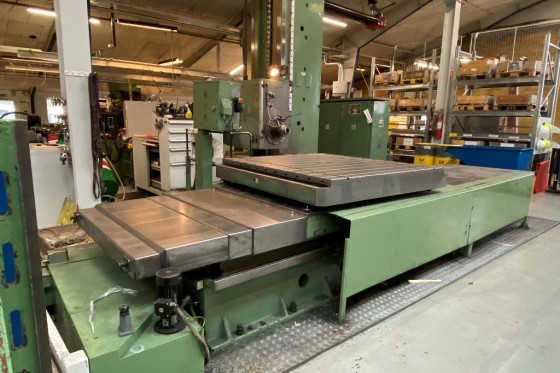

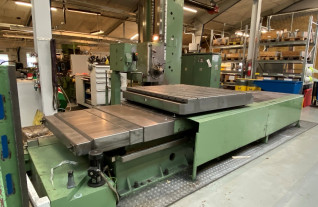

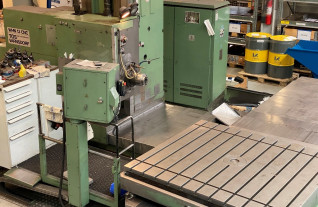

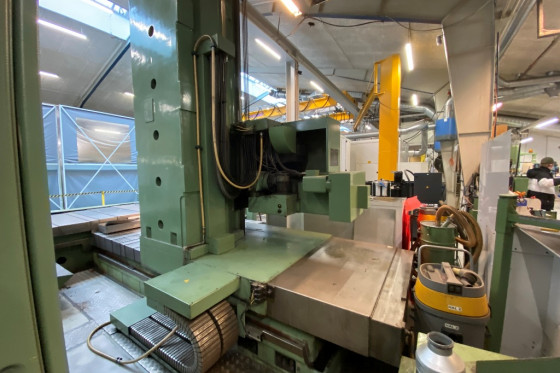

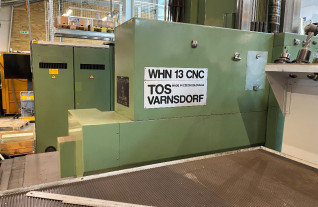

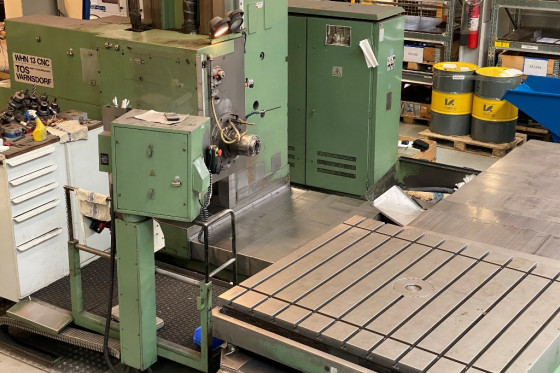

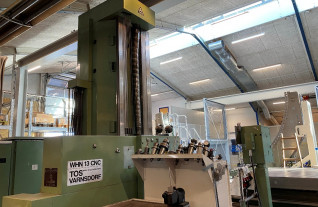

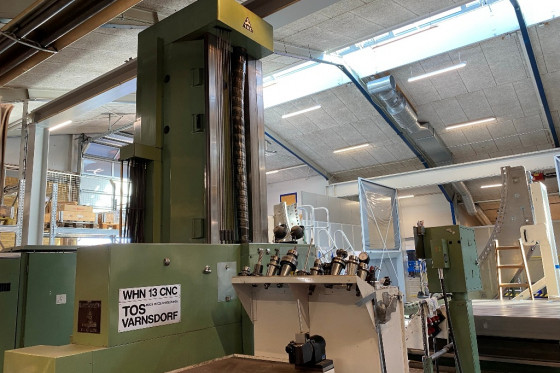

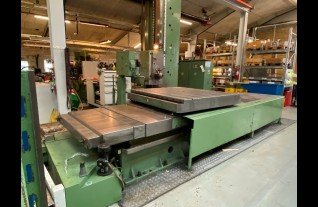

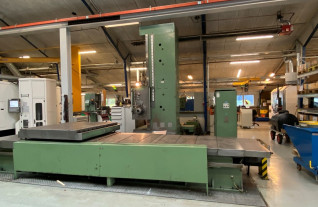

Table type boring mill TOS - WHN13CNC

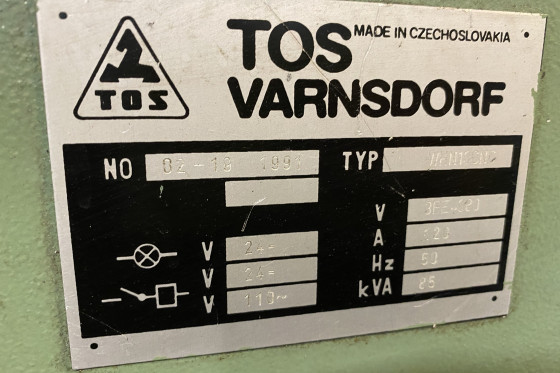

5 Axis Horizontal borer 3500 x 2000 x 1250 x 800 mm MACH-ID 6495| Make: | TOS |
| Type: | WHN13CNC |
| Year: | 1992 |

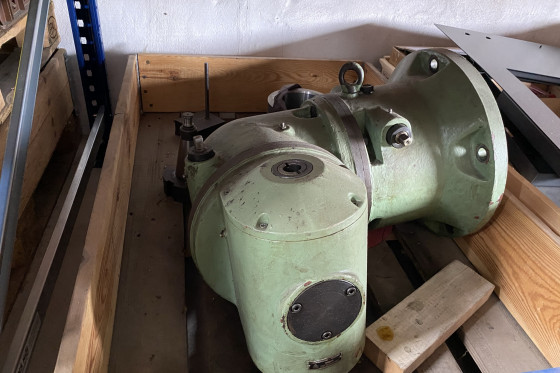

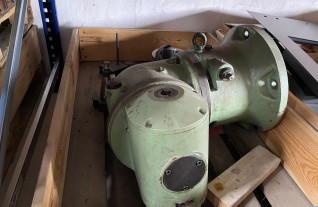

UPF50 Universal milling headclamp cube 1500 x 1000 x 10002 x clamping angle
Specifications
X - Travel
3500 mm
137.795 inch

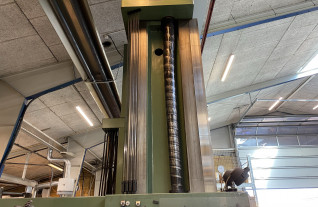

Y - Travel
2000 mm
78.74 inch

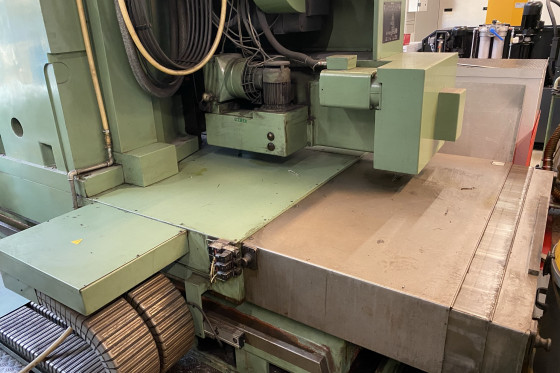

Z - Travel
1250 mm
49.213 inch
W - Travel
800 mm
31.496 inch

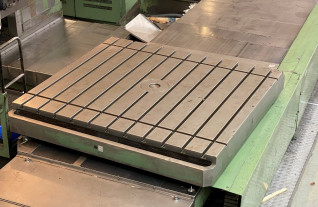

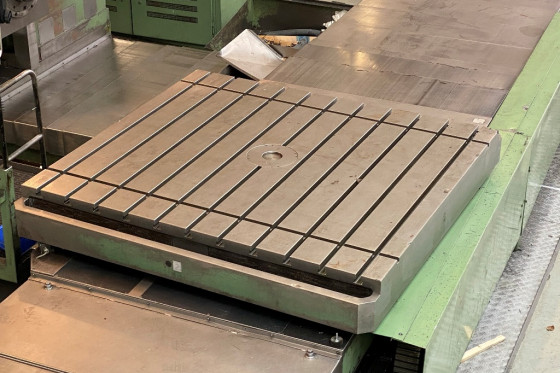

Table Length
1800 mm
70.866 inch
Table Width
1600 mm
62.992 inch
Table load
12000
12000
Speeds / ranges
1220 Rpm
1220 Rpm
Power
37 kW
37 kW

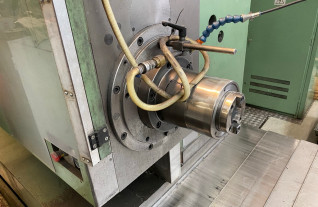

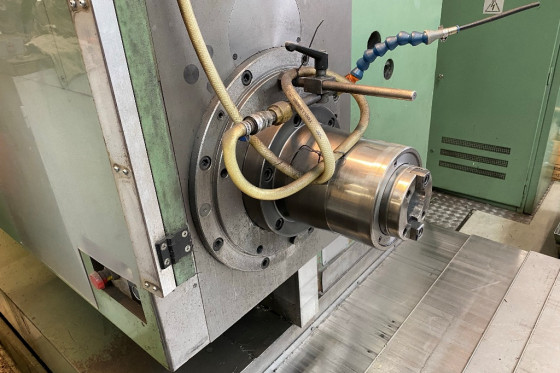

Spindle Taper
50 ISO/Bt/Mk
50 ISO/Bt/Mk
Feed rate X-Axis
8000 mm/min.
8000 mm/min.
Feed rate Y-Axis
8000 mm/min.
8000 mm/min.
Feed rate Z-Axis
8000 mm/min.
8000 mm/min.
Feed rate W-Axis
8000 mm/min.
8000 mm/min.

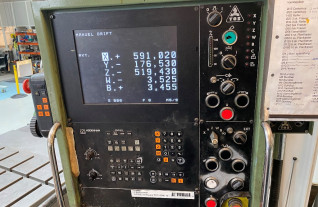

Number of controlled axis
5
5
Dimensions (Estimate)
Length
7000 mm
275.59 inch
Width
5000 mm
196.85 inch
Height
4000 mm
157.48 inch
Weight
35000 kg
77196.7 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
