This machine is sold

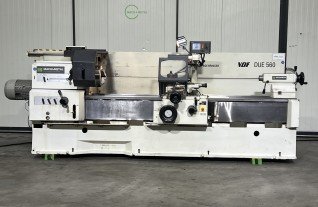

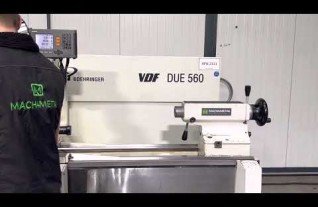

Centre lathe VDF BOEHRINGER - DUE 560
MACH-ID 7202| Make: | VDF BOEHRINGER |
| Type: | DUE 560 |
| Control: | HeidenHain |
| Year: | 2010 |

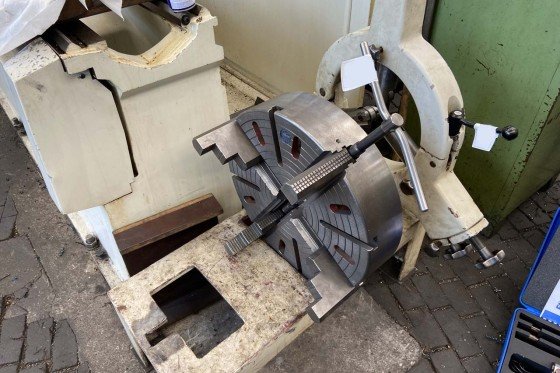

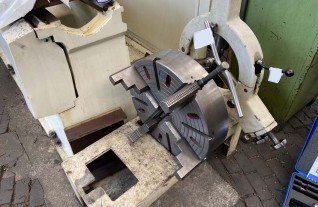

- 3 chuck and 4 chuck

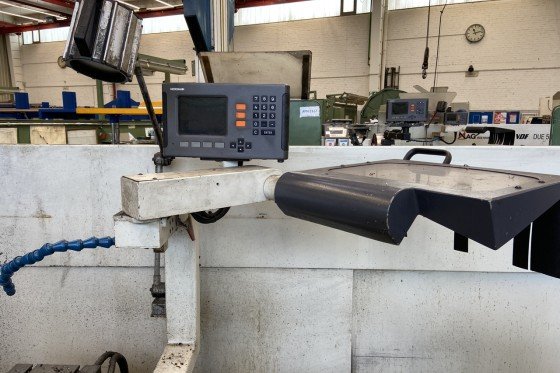

- Dr. Heidenhain Digital readout
- Steady rest
- Feeds all 3 directions
Specifications
DBC Turning Length
2000 mm
78.74 inch
Swing over bed Ø
570 mm
22.441 inch
Swing over cross slide Ø
365 mm
14.37 inch
Spindle bore
62 mm
2.441 inch
Spindle power
15 kW
15 kW
Bed width
360 mm
14.173 inch
Tailstock spindle Ø
80 Ø
80 Ø
Spindle taper
5 Mk
5 Mk
Speeds / ranges
2240 Rpm
2240 Rpm
Dimensions (Estimate)
Length
5000 mm
196.85 inch
Width
2100 mm
82.677 inch
Height
2200 mm
86.614 inch
Weight
5200 kg
11469.2 lbs
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
